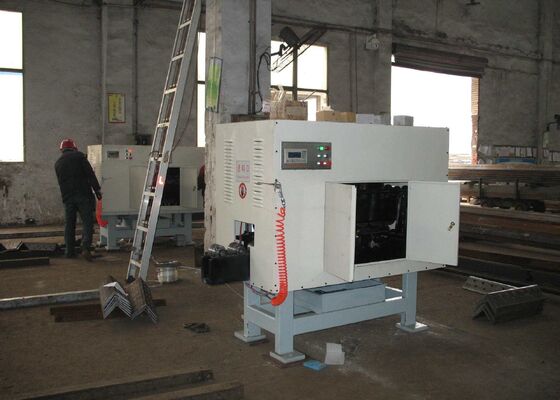

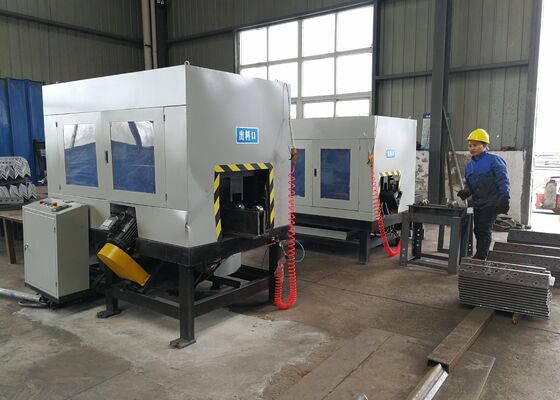

Model QC200 Angle Back Milling Machine 63x5~200x20mm Angle Processing Size
Application Industry:
The machine used for angle back milling, mainly in the field of angle steel tower industry, electric power fittings, and steel structure construction industry etc.
Product parameters:
| Model |
QC200 |
| Angle processing size (mm) |
63x5~200x20 |
| Feeding speed (mm/min) |
100~700 |
| Processing length (mm) |
Min.350 |
| Qty. of spindle |
2 |
| Qty. of feeding motor |
2 |
| Rotation of spindle (r/min) |
288 |
| Pressure of cylinder (kN) |
60 |
| Total power (kW) |
7.5 |
| Overall size (m) |
About 2.2x1.5x1.6 |
Workpiece process
1. Adjust the depth of back-off, turn on the hand wheel, according to different sizes of angle steel, adjust it yourself, lock it.
2. Press the spindle start button to start the back-off spindle.
3. Press the spindle feeding button to start feeding.
4. Put the angle steel on the feeding rack, which is driven by the stick of the rack automatically feeding and production.
5. After the production, the end product will be automatically sent out of the feed frame.
Product Feature:
1. Automatic continuous feeding, unlimited length, improve production efficiency and reduce production costs.
2. It adopts PLC control, timely feedback of operation information and status, and is easy to operate.
3. The NC program adjustment ensures the machining accuracy of the workpiece.
4. Hydraulic clamping of the material, smooth operation, to ensure the processing accuracy of the workpiece.
5. It is simple and convenient to operate, safe and reliable in performance with high production efficiency.
Equipment usage instructions and Characteristics:
1, The device uses high-speed milling for back and root of angle shoveling processing technology.
2,Greatly improving the shoveling production efficiency,efficient than the traditional planer.
3,Easily operate, low requirement for the worker’s operation level.
4,Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.
5,Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.
6,The machine is easy to operate, flexible regulation and stable operation.

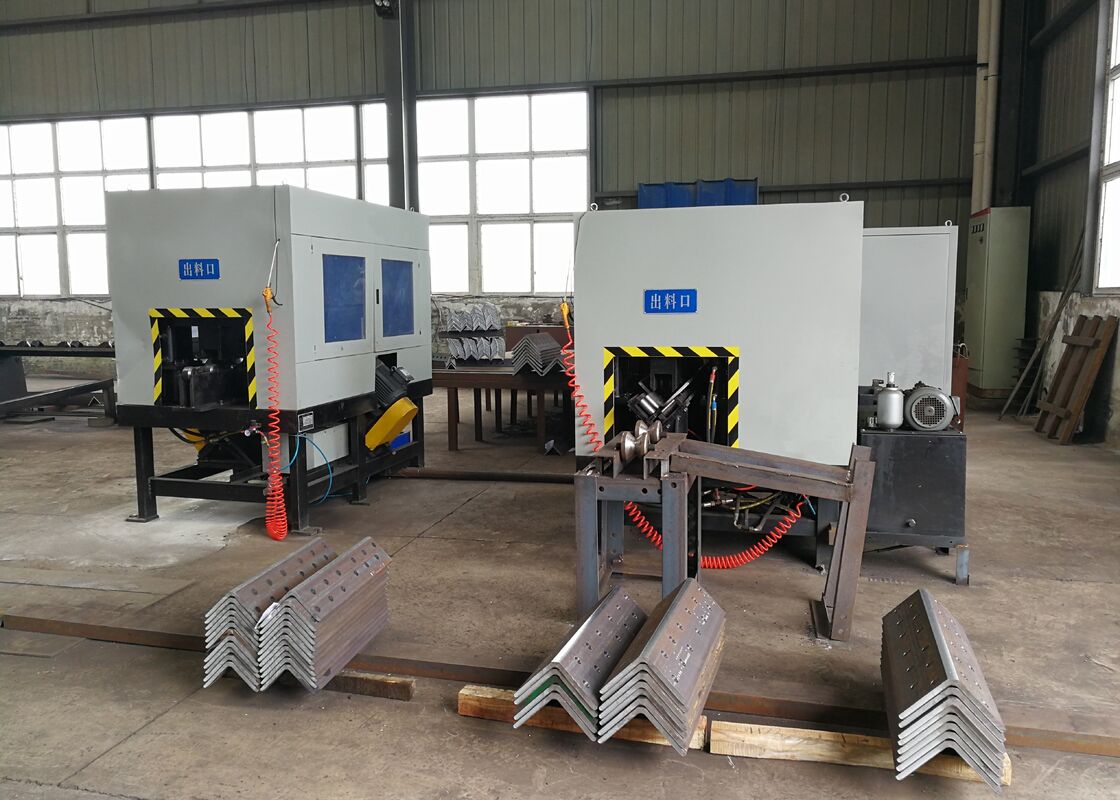

The machine is specifically designed for angle back milling, enabling precise and efficient machining of angle steel components. It produces finished workpieces with smooth surfaces, accurate dimensions, and clean edge profiles, making them suitable for structural assembly and industrial applications. Sample workpieces processed by this machine demonstrate its high machining accuracy, consistent quality, and ability to handle complex back-milling profiles, providing a tangible reference for evaluating the machine’s performance and suitability for production requirements.
In the construction of ultra-high voltage (UHV) transmission lines, where towers are required to withstand severe weather conditions and heavy loads, this equipment plays a critical role in processing the angle steel components forming the primary structure of the towers. It efficiently performs drilling and punching operations on the angle steel used for tower bodies, cross-arms, and other key structural elements, ensuring precise dimensions and secure connections that maintain the overall stability and integrity of the towers.
