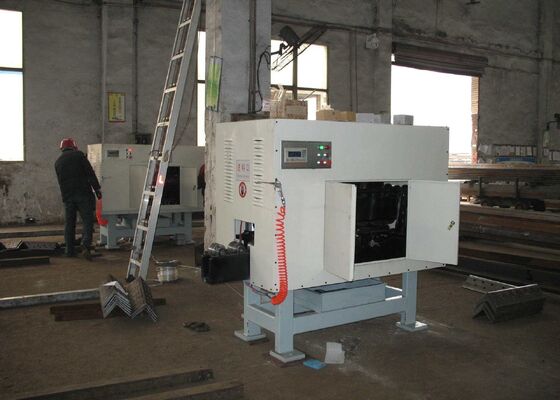

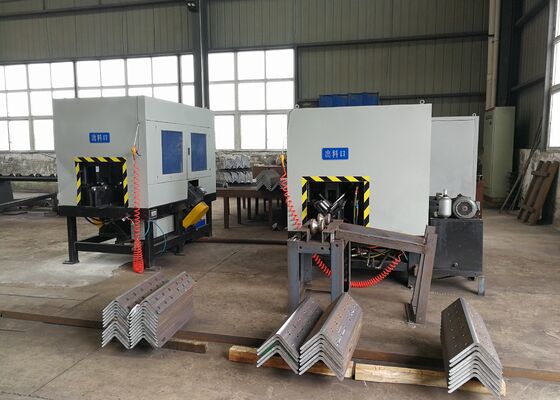

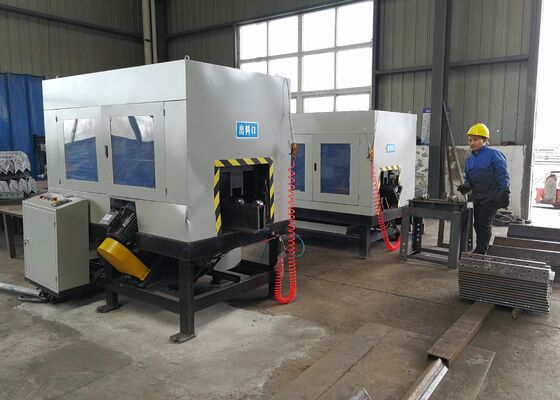

Model QC360 CNC Angle Back Milling Machine 63x5~360x35mm Angle Processing Size
Application Industry:
The machine used for angle back milling, mainly in the field of angle steel tower industry, electric power fittings, and steel structure construction industry etc.
Product parameters:
| Model |
QC360 |
| Angle processing size (mm) |
63x5~360x35 |
| Feeding speed (mm/min) |
100~700 |
| Processing length (mm) |
Min.350 |
| Qty. of spindle |
3 |
| Qty. of feeding motor |
2 |
| Rotation of spindle (r/min) |
288 |
| Pressure of cylinder (kN) |
60 |
| Total power (kW) |
18.5 |
| Weight (ton) |
About 4.2 |
| Overall size (m) |
About 3.5x2.2x1.8 |
Workpiece process
1. Adjust the back-off depth and activate the hand wheel. According to the different specifications of the angle steel, make the necessary adjustments manually and secure the setting firmly.
2. Press the spindle start button to activate the back-off spindle.
3. Press the spindle feed button to initiate the feeding operation.
4. Place the angle steel onto the feeding rack. The rack mechanism will automatically drive the material forward for continuous feeding and production.
5. Upon completion of production, the finished product will be automatically discharged from the feeding frame.
Product Feature:
1. Equipped with an automatic continuous feeding system and unlimited processing length, significantly enhancing production efficiency while lowering manufacturing costs.
2. Utilizes a PLC control system that provides real-time operational data and status feedback, ensuring user-friendly operation.
3. NC program control and adjustment guarantee high machining precision for the workpiece.
4. Features a hydraulic clamping system for stable and smooth operation, ensuring consistent processing accuracy of the workpiece.
5. Designed for simple and convenient operation, with safe and reliable performance and high production capacity.
Equipment usage instructions and Characteristics:
1. The equipment adopts high-speed milling technology for angle steel back and root shoveling operations.
2. Significantly enhances shoveling productivity, offering much higher efficiency compared with conventional planing machines.
3. User-friendly operation with minimal requirements for operator skill levels.
4. Substantially reduces labor intensity with a high level of automation, enabling continuous feeding of angle steel.
5. Compared with conventional planing machines that are limited by processing length, this advanced machine offers greater flexibility in operation. The process does not require a clamping device, making operation more convenient and improving overall efficiency.
6. The machine features user-friendly operation, flexible adjustment capabilities, and stable working performance.
The machine is specially engineered for angle back milling applications, delivering precise and highly efficient processing of angle steel components. The finished products feature smooth surface quality, accurate dimensional tolerances, and clean edge finishes, making them ideal for structural fabrication and various industrial uses. Sample workpieces manufactured by this equipment clearly demonstrate its superior machining precision, stable processing quality, and capability to execute complex back-milling operations, providing customers with a reliable reference for assessing the machine’s performance and production suitability.
In the construction of ultra-high-voltage (UHV) transmission lines, where transmission towers must endure extreme environmental conditions and substantial structural loads, this equipment serves an essential role in the fabrication of angle steel components used in the tower framework. It is capable of carrying out efficient drilling and punching operations on angle steel applied to tower bodies, cross-arms, and other critical structural parts, ensuring high dimensional accuracy and reliable joint connections to guarantee the overall strength, stability, and structural integrity of the towers.
