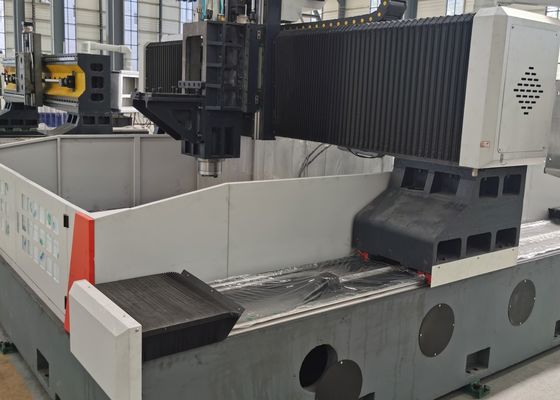

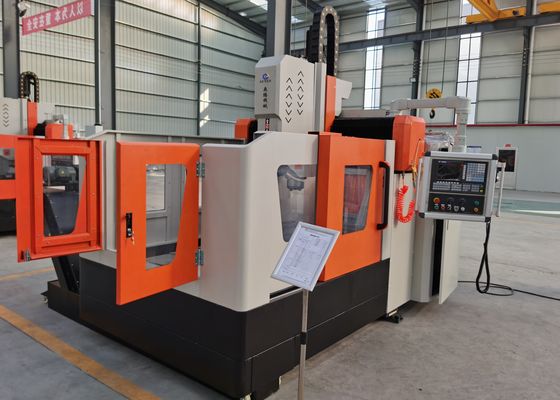

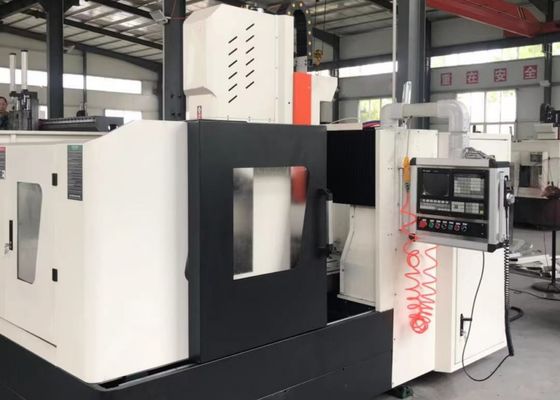

11KW Servo Spindle Motor Power Gantry CNC Drilling Machine For Flange Sheet Metal
Product Introduction:
The equipment is purpose-built for the precision machining of tube sheet plates and flanges, accommodating hole diameters up to φ80mm. Its core capabilities include drilling, reaming, boring, tapping, chamfering, and milling. The machine is compatible with both carbide and conventional drill bits. The CNC control system is intuitive, allowing for straightforward operation. The machine consistently delivers superior accuracy and operational performance.
Product configuration:
| Model |
PHD1010 |
| Workpiece size |
LxW (mm) |
1000x1000 |
| T-slot width of Workbench (mm) |
28 |
| Drilling power head |
Qty. |
1 |
| Spindle taper |
BT40 |
| Max. drilling diameter (mm) |
Φ50 |
| Max. thickness (mm) |
≤180 |
| Tapping diameter |
M3-M20 |
| Spindle speed (r/min) |
30~3000 |
| Servo spindle motor power (kW) |
11 |
| Lateral movement of power head (X axis) |
Max. horizontal stroke (mm) |
1000 |
| Lateral movement speed (r/min) |
0~8 |
| Servo motor power for lateral movement (kW) |
2.4 |
| Gantry longitudinal movement (Y axis) |
Max. feed stroke (mm) |
1000 |
| Feed moving speed (m/min) |
0~8 |
| Feed servo motor power (kW) |
2.4 |
| Vertical ram feed motion (Z axis) |
Max. stroke (mm) |
400 |
| Moving speed (m/min) |
0~8 |
| Servo motor power (kW) |
2.4 |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.02/1000 |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.01/1000 |
| Electrical system |
CNC system |
FAGOR/ KND/ GSK |
| Tool changer |
Disc type (Optional) |
24 tool positions |
| Overall size |
LxWxH (m) |
3.2x2.2x2.2 |
Product Features
1. The machine’s frame and crossbeam are fabricated from welded steel structures and undergo comprehensive stress-relief heat treatment to ensure optimal precision. The worktable, transverse sliding table, and ram are constructed from cast iron, providing exceptional durability and structural rigidity.
2. The dual servo drive system positioned on either side of the X-axis ensures precise and synchronized gantry movement, maintaining excellent perpendicularity between the X and Y axes.
3. The worktable, crafted from premium cast iron, guarantees dependable operation, outstanding rigidity, and long-term dimensional stability.
4. The drilling spindle features a high-rigidity, precision-engineered BT40 configuration and is equipped with an internal coolant delivery system to enhance machining efficiency and simplify tool replacement. The spindle operates at speeds ranging from 30 to 3000 rpm.
5. Two plate-chain chip conveyor systems are installed on either side of the worktable, efficiently collecting metal chips and coolant, thereby facilitating effective chip management and coolant recirculation.
6. The machine is equipped with both internal and external coolant systems, each providing adequate pressure and flow to optimize machining performance. Integrated coolant level monitoring ensures continuous lubrication and cooling of cutting tools during operation.
7. A centralized automatic lubrication system supplies continuous and reliable lubrication to critical motion components, including guideways, ball screws, and rolling bearings, extending the service life of these essential elements.
8. The CNC control system utilizes the 828D model, offering extensive functionality, integrated CAD-CAM programming, user-friendly operation, and features for automatic alerts and error compensation.
9. Key components are sourced from internationally recognized brands, including linear roller guideways, ball screws, servo motors and drivers, the spindle, CNC control system, hydraulic pumps and valves, and cooling pumps, ensuring outstanding reliability and consistent operational stability.
The CNC gantry plate machining system is a robust industrial solution, precisely engineered for the accurate processing of plate-type components and structural elements. It is specifically suitable for machining workpieces such as flanges, discs, rings, and flat plates, provided the material thickness falls within the machine’s effective processing range.
Within steel fabrication facilities, this plate drilling machine performs high-precision drilling and milling on structural plates and connection components, providing a reliable foundation for the construction of durable steel structures. In the wind energy sector, it ensures precise machining of wind turbine towers and flanges, enabling these critical components to withstand extreme environmental conditions, including high wind forces and temperature variations. For bridge engineering projects, the machine efficiently processes bridge girders and support structures, creating secure and enduring connections capable of withstanding dynamic operational stresses over the structure’s lifetime.
