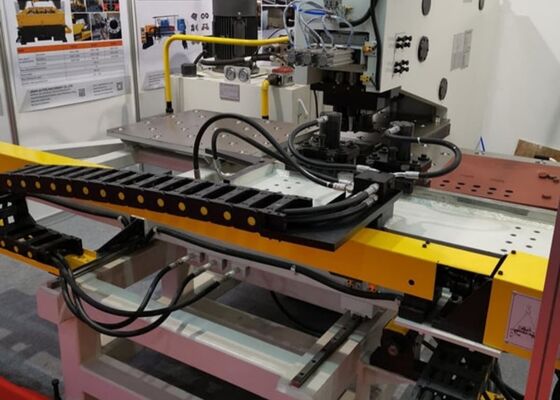

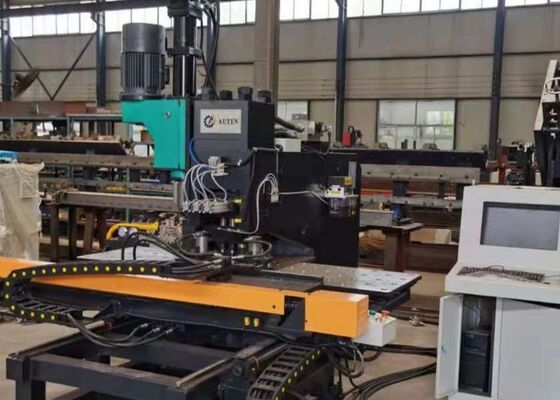

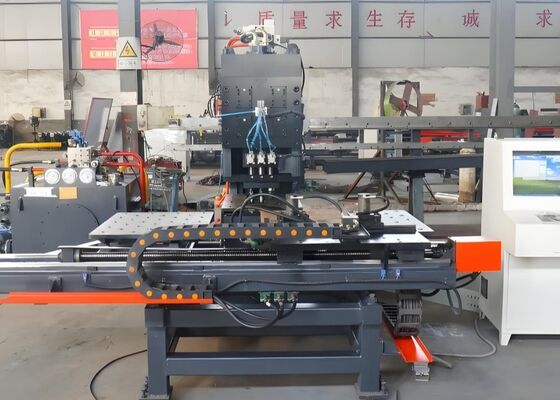

1. The machine features a robust C-frame welded steel construction, delivering outstanding structural rigidity and a large operating area. It is equipped with three tooling stations, including one dedicated marking station, with automatic station indexing to improve production efficiency. The hydraulic clamping system accommodates workpieces of different sizes and thicknesses, while a precision zero-reference positioning block ensures accurate alignment. A ball-transfer worktable allows smooth material handling and effortless positioning. Both the X-axis and Y-axis are driven by high-performance servo motors and precision ball screws, with positioning controlled through a PLC-based CNC system to achieve exceptional punching accuracy. Machining programs can be stored, recalled, and reused, making the machine highly efficient for continuous batch production.
2. The machine integrates advanced CNC control technology with a servo-driven feeding system, delivering superior machining efficiency while maintaining excellent dimensional accuracy, positioning precision, and repeatability across a wide variety of workpieces.
3. The major functional assemblies adopt a modular design concept, simplifying routine maintenance, reducing service time, and minimizing equipment downtime, thereby improving long-term operational reliability.
4. The equipment combines punching, marking, and drilling into one fully integrated machining platform, allowing multiple manufacturing operations to be completed efficiently within a single production cycle, reducing handling time and improving overall productivity.
5. The drilling module is engineered with rapid positioning, precision feed control, and high-speed retract functions. This optimized design significantly enhances machining efficiency while ensuring stable drilling performance, excellent hole quality, and consistent processing accuracy.
6. An advanced self-diagnostic monitoring system continuously supervises machine operating conditions, automatically detecting abnormalities and identifying faults. This enables fast troubleshooting, minimizes unexpected downtime, and ensures reliable long-term operation.
7. The CNC programming interface is designed for simple and efficient operation. Users only need to enter basic parameters such as hole diameter, hole coordinates, and production quantity to automatically generate machining programs. The control system also supports direct import of processing files generated by CAD/CAM and lofting software, ensuring seamless data conversion and highly efficient production programming.
