Product Introduction:

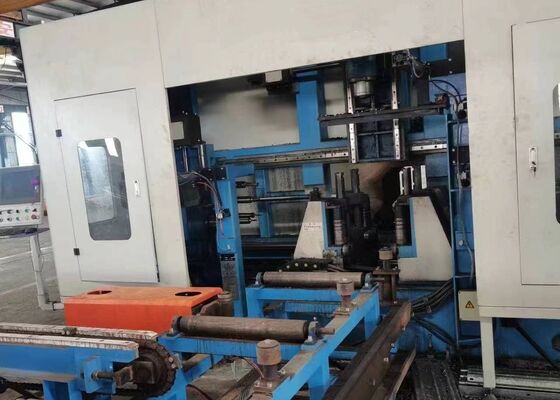

The CNC H-Beam Drilling Machine is purpose-built for high-precision drilling, tapping, marking, and scribing of H-beams, channel sections, angle steel, and other structural steel members. It is widely deployed in the fabrication of steel structures for commercial buildings, parking facilities, transmission towers, lattice structures, bridges, and a variety of heavy-duty steel construction projects.

1. A dedicated, high-performance CNC machining solution specifically developed for the structural steel fabrication industry.
2. Simultaneously performs drilling on three sides of H-beams and channel sections, ensuring exceptional machining accuracy, consistency, and production efficiency.
3. Equipped with seven CNC-controlled axes to achieve fully automated material feeding, positioning, and machining operations.
4. Fully compatible with AutoCAD and DSTV file formats, allowing automatic recognition of workpiece drawings and direct conversion into machining programs.

Product parameters:

Product Features:

1. The material handling system is equipped with a CNC-controlled clamping carriage powered by high-performance servo motors, ensuring fast workpiece feeding together with exceptional positioning precision and repeatability throughout the entire machining process.

2. Three high-speed BT40 precision spindle units are configured to simultaneously process all three faces of H-beam sections. Supporting carbide drilling with internal coolant delivery and spindle speeds of up to 3,000 rpm, the system provides outstanding drilling performance, superior hole quality, and efficient chip evacuation through an integrated chain-type chip conveyor.

3. The machine incorporates an advanced Minimum Quantity Lubrication (MQL) cooling system that supports both internal and external coolant supply. Each spindle assembly is equipped with an independent external coolant nozzle and an internal coolant interface, allowing operators to select internal cooling, external cooling, or combined cooling modes according to different machining requirements.

4. An optional Automatic Tool Changer (ATC) system is available to perform fully automatic tool replacement without manual intervention, significantly reducing setup time, minimizing idle cycles, and increasing overall machining productivity.

5. An optional hydraulic CNC disc marking system can be integrated into the equipment. Powered by a precision servo motor, the marking disc automatically indexes among 36 selectable characters, enabling rapid, accurate, and consistent identification marking for structural steel components.

6. Automatic scribing and tapping functions eliminate traditional manual layout procedures. The scribing unit accurately produces welding reference lines on both H-beam flanges and webs, while the tapping function directly machines threaded holes on structural members, improving machining accuracy, reducing manual labor, and enhancing production efficiency.

7. Throughout material feeding and machining operations, workpiece lifting, lateral positioning, clamping, locking, and release are all hydraulically controlled. This fully hydraulic workholding system ensures secure material positioning, excellent machining stability, and dependable operational reliability during continuous production.

8. The control platform integrates an industrial computer with a PLC-based CNC system utilizing premium components supplied by internationally recognized manufacturers. Multiple programming methods are supported, while machining data generated from AutoCAD, TEKLA Structures, DXF, and DSTV files can be imported directly, simplifying programming procedures and improving production management efficiency.

The demonstration workpieces include standard H-beam specimens with various flange widths and web thicknesses, together with channel steel samples of different specifications, providing a comprehensive display of the machine's machining performance. These representative samples clearly demonstrate precise hole positioning, high-quality threaded holes, and sharp, well-defined marking results, allowing customers, engineers, and quality inspectors to accurately evaluate the equipment's machining precision, processing consistency, and overall production reliability under practical operating conditions.

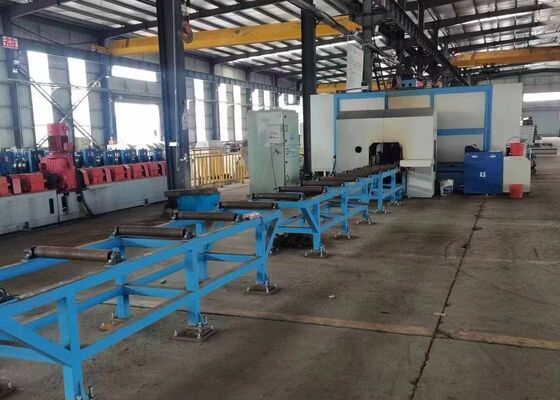

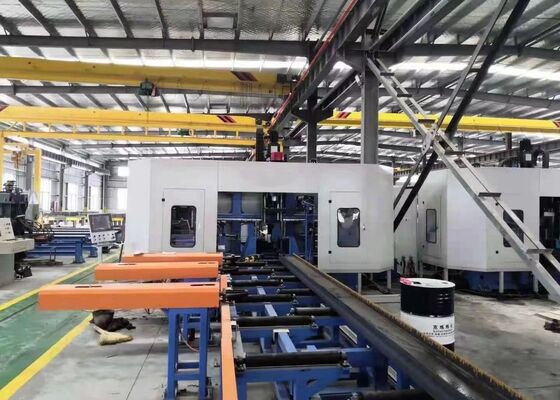

The High-Speed CNC H-Beam Drilling, Marking, and Tapping Machine is extensively applied in structural steel fabrication plants, bridge engineering, and other heavy steel construction industries. Within steel fabrication facilities, the equipment performs high-precision drilling, tapping, marking, and scribing on H-beams used for structural frames, columns, and support systems, supplying accurately machined components for efficient assembly and dependable structural performance. In bridge construction projects, it provides precision machining of H-beam members, improving connection accuracy, structural integrity, and long-term load-bearing performance. By combining high machining efficiency, outstanding precision, and reliable operational stability, the machine delivers an ideal manufacturing solution for modern steel structure production and large-scale infrastructure construction.
