Industrial High Speed CNC Plate Drilling And Milling Machine For Thick Plates
Application:

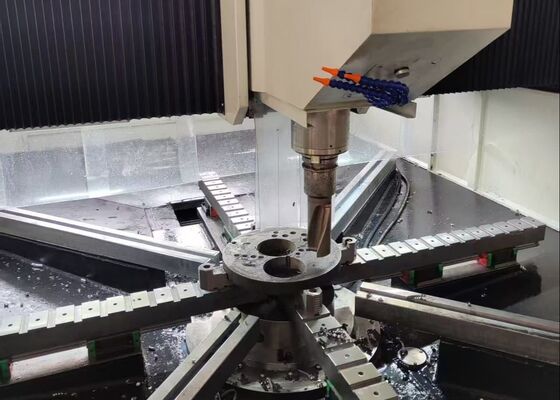

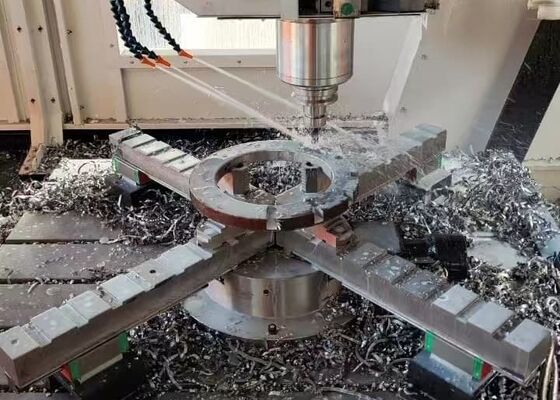

The CNC Gantry Plate Drilling and Milling Machine is specifically developed for high-precision machining of tube sheets, flanges, bearing plates, heat exchanger components, and a wide range of plate-type workpieces used in petrochemical processing, nuclear power generation, wind energy, boiler manufacturing, and structural steel fabrication. The machine supports high-speed carbide drilling with through-spindle coolant, as well as high-speed twist drilling with external coolant. By integrating drilling, chamfering, tapping, milling, and boring into a single CNC machining platform, it provides exceptional machining flexibility and production efficiency. An optional automatic right-angle milling head further enhances its capabilities by enabling efficient side drilling, tapping, and milling of complex workpieces.
Specifications:
| Model |
PHD2020 |
| Workpiece size |
LxW (mm) |
2000x2000 |
| T-slot width of Workbench (mm) |
28 |
| Drilling power head |
Qty. |
1 |
| Spindle taper |
BT50 |
| Max. drilling diameter (mm) |
Φ80 |
| Max. thickness (mm) |
≤250 |
| Tapping diameter |
M3-M30 |
| Spindle speed (r/min) |
30~3000 |
| Servo spindle motor power (kW) |
22/30 |
| Lateral movement of power head (X axis) |
Max. horizontal stroke (mm) |
2000 |
| Lateral movement speed (r/min) |
0~8 |
| Servo motor power for lateral movement (kW) |
2.4 |
| Gantry longitudinal movement (Y axis) |
Max. feed stroke (mm) |
2000 |
| Feed moving speed (m/min) |
0~8 |
| Feed servo motor power (kW) |
2.4 |
| Vertical ram feed motion (Z axis) |
Max. stroke (mm) |
800 |
| Moving speed (m/min) |
0~8 |
| Servo motor power (kW) |
2.4 |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.015/1000 |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.01/1000 |
| Electrical system |
CNC system |
FAGOR/ KND/ GSK |
| Tool changer |
Disc type (Optional) |
24 tool positions |
| Overall size |
LxWxH (m) |
5.3x3.8x2.7 |
Product features

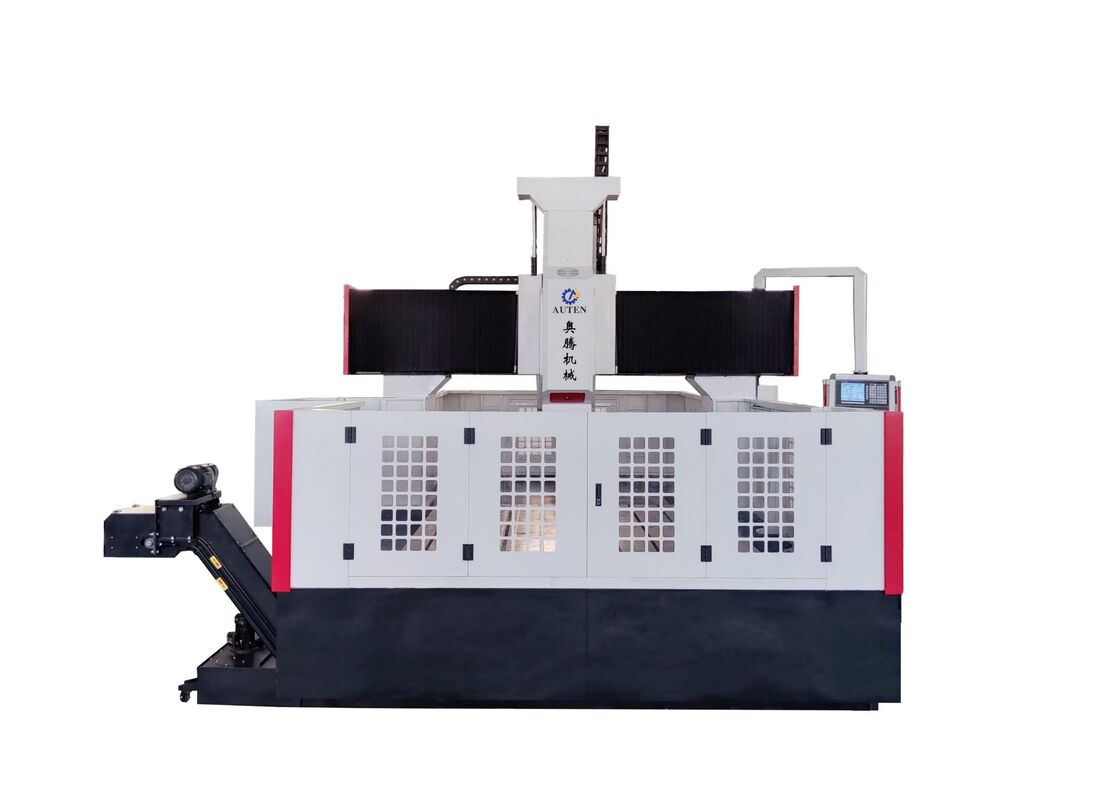

1. The equipment is primarily composed of a robust machine bed, longitudinal slide mechanism, gantry frame, transverse slide unit, vertical feed system, drilling and milling spindle head, worktable, coolant circulation system, automatic chip conveying system, centralized lubrication system, pneumatic assembly, electrical control cabinet, and other auxiliary modules. Together, these components form a complete, high-efficiency CNC machining system designed for precision industrial processing.
2. The servo-controlled sliding spindle head combines multiple machining capabilities, including drilling, reaming, tapping, chamfering, and groove milling. These functions can be executed individually or through coordinated multi-axis operation to provide maximum processing versatility. The spindle adopts a high-precision BT50 internal-cooling spindle manufactured in Taiwan and is equipped with an automatic tool clamping mechanism based on disc spring technology. Hydraulic tool release allows fast and convenient replacement of drilling and milling tools, effectively reducing tool change time and improving overall production efficiency.
3. High-accuracy linear guideways are installed across all major motion axes to ensure smooth movement, excellent rigidity, and precise positioning performance. The feed drive system utilizes AC servo motors combined with synchronous belt transmission and precision ball screw mechanisms, delivering outstanding positioning accuracy, superior repeatability, and stable long-term machining performance.
4. The machine bed and gantry structure are manufactured from high-quality cast iron or heavy-duty welded steel assemblies. Before machining, all critical structural components undergo high-temperature stress-relief annealing, followed by an additional stress-relief process after semi-finishing. Through this advanced manufacturing process, the machine achieves exceptional structural rigidity, enhanced dimensional stability, and consistently reliable machining accuracy throughout its entire service life.
The CNC Gantry Plate Drilling and Milling Machine is a high-performance CNC machining solution specifically engineered for precision processing of plate-type components and structural steel parts. It is widely suitable for machining flanges, discs, rings, flat plates, and other similar workpieces within the specified machining range. With its rigid mechanical construction, advanced CNC control technology, and comprehensive multi-function machining capabilities, the machine provides an efficient and reliable solution for industrial applications requiring high precision, productivity, and operational stability.
In structural steel fabrication plants, the equipment performs high-precision drilling and milling operations on structural plates, foundation plates, and connection components, delivering accurately processed parts for efficient steel structure assembly. In the wind energy industry, it is extensively applied to the machining of wind turbine tower sections and large-diameter flange components, ensuring excellent dimensional accuracy and structural integrity under challenging operating conditions, including heavy wind loads and significant temperature variations. In bridge construction applications, the machine is widely utilized for processing bridge girders, splice plates, and supporting structural components, producing high-strength and durable connections capable of enduring long-term dynamic loads. As a result, the equipment plays an important role in improving the structural safety, operational reliability, and service life of large-scale bridge and infrastructure projects.
