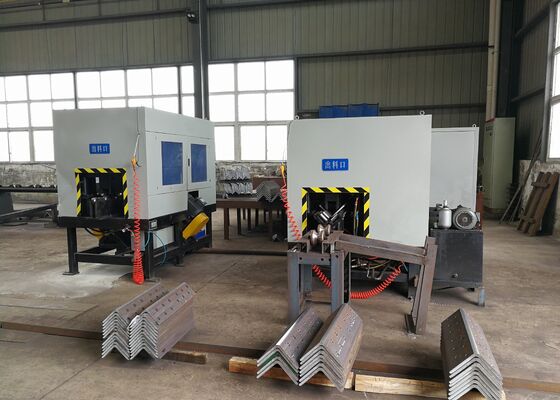

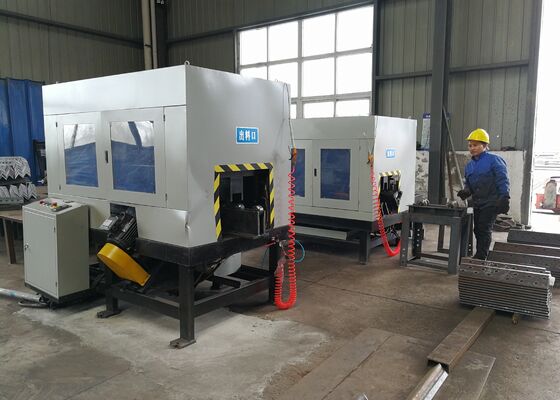

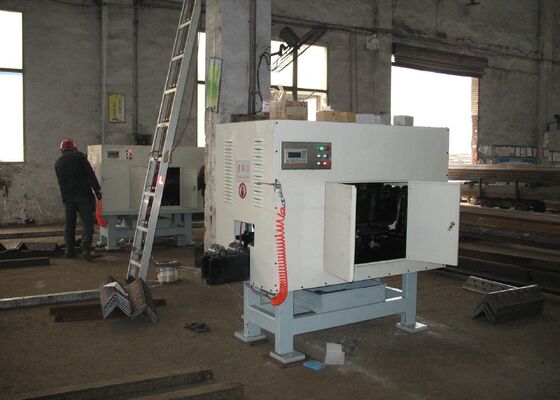

CNC Angle Steel Root Milling Machine Used To Process The Inner Arc Of Angle Steel

CNC Angle Steel Root Milling Machine Used To Process The Inner Arc Of Angle Steel

Application Industry:

Mainly used to process the inner arc of angle steel.

Product Parameters:




Workpiece process

1. Place the angle steel workpiece into the designated machining area of the equipment.

2. In automatic operation mode, activate the cycle start command, and the machine will automatically complete the entire programmed machining sequence.

3. Angle steel components with the same specifications can be processed continuously, maximizing production efficiency and ensuring consistent performance during large-volume batch manufacturing.


Equipment usage instructions and Characteristics

1. The equipment adopts advanced high-speed milling technology for angle steel back-side milling and root-edge preparation, delivering efficient, accurate, and high-quality surface machining performance.

2. Compared with traditional planing processes, this machine significantly improves root-edge preparation efficiency, achieving processing productivity up to ten times higher than conventional equipment.

3. The system features an optimized user-oriented operating design, requiring only basic operator training and reducing reliance on highly skilled technical personnel.

4. With its highly automated control system, the equipment greatly minimizes manual labor requirements while supporting continuous angle steel feeding, enabling stable, uninterrupted, and efficient production operations.

5. Unlike conventional planing machines that are restricted by workpiece length limitations and complex fixture requirements, this advanced milling solution provides greater machining flexibility. The elimination of dedicated clamping fixtures simplifies operation procedures, improves production efficiency, and enhances overall processing convenience.

6. The machine is equipped with an intuitive control system, versatile parameter adjustment functions, and a high-rigidity mechanical structure, ensuring stable, reliable, and repeatable performance during long-term industrial operation.


Configurations:

1. The automatic continuous feeding system is powered by a high-performance geared motor, ensuring smooth, stable, and reliable workpiece transportation while significantly improving overall production efficiency.

2. Major electrical components are supplied by internationally recognized manufacturers, including Schneider and Omron, guaranteeing superior quality, reliable operation, and extended equipment service life.

3. The machine adopts a dual-spindle configuration, enabling balanced distribution of cutting forces between two milling cutters. This design reduces the load on individual tools, extends tool service life, and improves overall machining efficiency.

4. The spindle system is driven by two 3 kW motors and incorporates precision synchronous belt transmission technology, effectively reducing vibration, enhancing operational smoothness, and ensuring high machining stability and long-term reliability.

5. An integrated cutting fluid cooling system is installed to provide effective cooling and lubrication during machining. This system reduces cutting temperature, extends cutter lifespan, maintains stable cutting performance, and ensures excellent surface finishing quality.



The equipment is specifically engineered for precision back milling of angle steel, providing accurate and efficient machining of structural angle profiles. It produces finished workpieces with excellent surface finish, precise dimensional accuracy, and clean edge geometry, making them well suited for structural fabrication and a wide range of industrial applications. The demonstration samples manufactured on this machine clearly exhibit its outstanding machining precision, excellent processing consistency, and capability to produce complex back-milling profiles, offering customers and inspection personnel a practical basis for evaluating the equipment's manufacturing performance and production suitability.

In ultra-high-voltage (UHV) power transmission projects, where transmission towers are required to withstand extreme environmental conditions and substantial structural loads, this equipment performs a vital function in manufacturing the angle steel members that constitute the primary structural framework of the towers. It efficiently carries out high-precision drilling and punching operations on angle steel components used in tower bodies, cross-arms, and other critical structural assemblies, ensuring accurate hole positioning and dependable connection quality. As a result, it significantly enhances the structural strength, operational stability, and long-term service reliability of transmission towers throughout their operating lifecycle.
