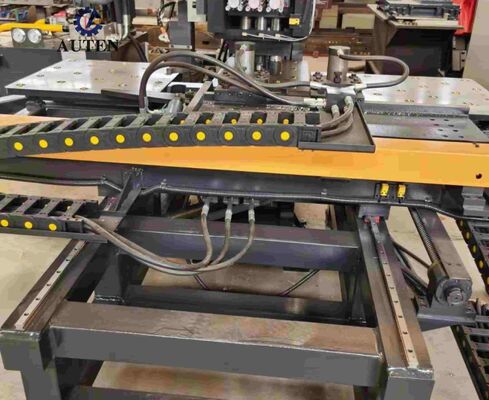

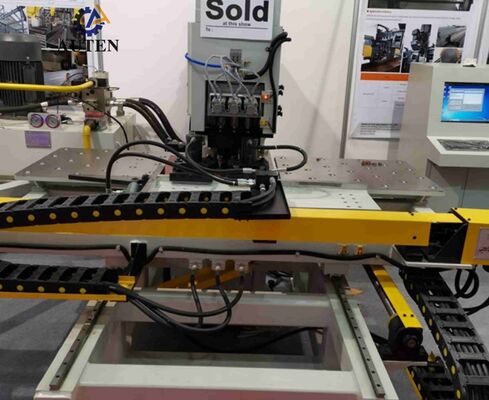

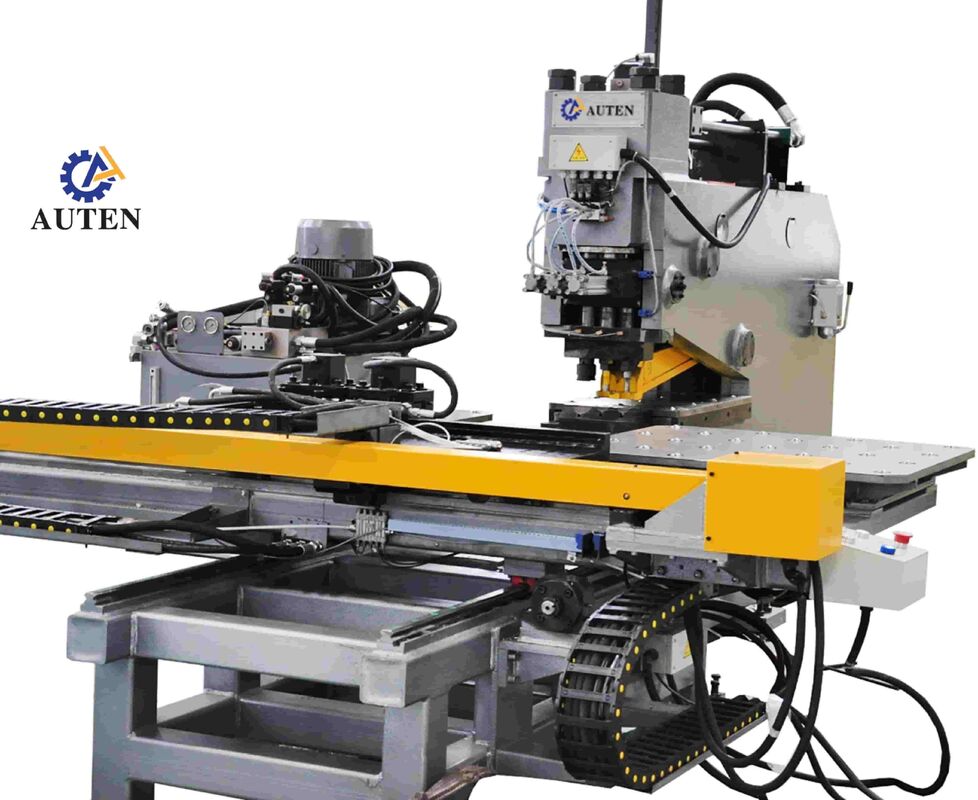

1. The machine features a high-strength C-frame welded steel construction, providing excellent rigidity, vibration resistance, and an expansive working area. It incorporates three automatic processing stations, comprising two punching stations and one dedicated marking station, with automatic station indexing for efficient machining. The hydraulic clamping system securely accommodates steel plates of different dimensions and thicknesses, while a precision reference stop ensures accurate positioning. A ball-transfer worktable facilitates smooth material movement. The X- and Y-axis assemblies are driven by servo motors and precision ball screws and coordinated through PLC-based closed-loop control, enabling fully automated and highly accurate punching operations. Processing programs can be created, stored, and reused, making the machine well suited for high-volume production.
2. Advanced CNC control technology is integrated with a servo-driven feeding system to provide high production efficiency, excellent dimensional accuracy, stable machining performance, and consistent repeatability during continuous operation.
3. Major functional assemblies are designed with a modular configuration, simplifying routine servicing, accelerating component replacement, reducing maintenance-related downtime, and enhancing long-term equipment reliability.
4. The machine performs punching and marking operations on a single steel plate within one integrated machining cycle, reducing unnecessary workpiece handling and improving overall processing efficiency and production throughput.
5. The CNC control system incorporates an intuitive programming interface and supports direct import of CAD drawings and processing data generated by nesting or lofting software. Compatibility with TEKLA NC1 files facilitates seamless data conversion, simplifies programming procedures, and supports efficient digital production management.
6. An intelligent self-diagnostic and monitoring function continuously supervises machine operating conditions, identifies abnormal situations, and provides detailed fault information. This capability enables rapid troubleshooting, streamlines maintenance activities, and improves overall equipment availability and reliability.
7. The X- and Y-axis drive systems employ high-performance servo motors, precision ball screw mechanisms, and high-accuracy linear guideways, ensuring excellent positioning accuracy, repeatability, and stable machining performance throughout extended service periods.
8. The main machine body is fabricated from a reinforced C-type welded steel frame, offering outstanding structural rigidity, operational stability, and a spacious processing area suitable for a wide range of steel plate dimensions and manufacturing requirements.
9. The equipment incorporates three fully automated processing stations, including one dedicated marking station. Automatic station selection minimizes manual intervention while improving processing speed, operational flexibility, and overall production efficiency.
10. The hydraulic clamping assembly is engineered to securely hold steel plates of varying thicknesses. Together with the precision zero-point reference stop and ball-transfer worktable, it provides dependable clamping, accurate workpiece positioning, and smooth material handling throughout the machining cycle.
11. The dual-axis CNC motion control system combines precision servo drives, high-accuracy ball screw transmissions, and linear guideways to achieve precise X- and Y-axis positioning, ensuring accurate punching and marking locations for each workpiece.
12. The entire machining sequence is automated. After the operator imports the workpiece drawing into the CNC control system, the machine automatically performs the programmed punching, marking, and drilling operations with minimal manual intervention, thereby improving production efficiency, process consistency, and operational reliability.
