20-50mm Processing Width CNC Flat Iron Hoop Forming Machine Model FF50

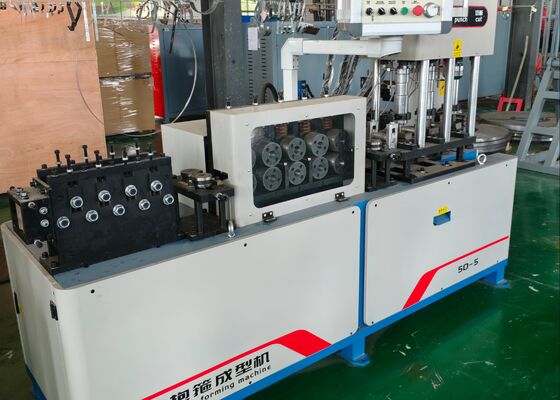

Large Image : 20-50mm Processing Width CNC Flat Iron Hoop Forming Machine Model FF50

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	FF50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	500 sets/year

Contact Now

Detailed Product Description

Processing Width:	20-50mm	Processing Thickness:	2-5mm
Min. Diameter:	30mm	Max. Diameter:	1500mm
Max. Feeding Speed:	55m/min	Max. Bending Speed:	800°/sec
Punching Cylinder:	125*30	Feeding Servo Motor:	3kw/1 Unit

20-50mm Processing Width CNC Flat Iron Hoop Forming Machine Model FF50

Product Application:

Mainly used for clamp processing in industries such as transportation, power and seismic bracing.

Product Parameter Configuration Table:

Model	FF50-5
Processing width	20-50mm
Processing thickness	2-5mm
Min. diameter	30mm
Max. diameter	1500mm
Max. feeding speed	55m/min
Max. bending speed	800°/sec
Punching cylinder	125*30
Feeding servo motor	3kw/1 unit
Cut-off cylinder	150*50
Bending servo motor	3kw/1 unit
Hydraulic system	Huade
Telescopic servo motor	1kw
Electrical control system	Weichuang / Xinjie
Hydraulic power station motor	7.5kw
Mold Material	DC53
Feed Roller Material	Cr12MoV
Dimensions	2.2×1.6×1.8m
