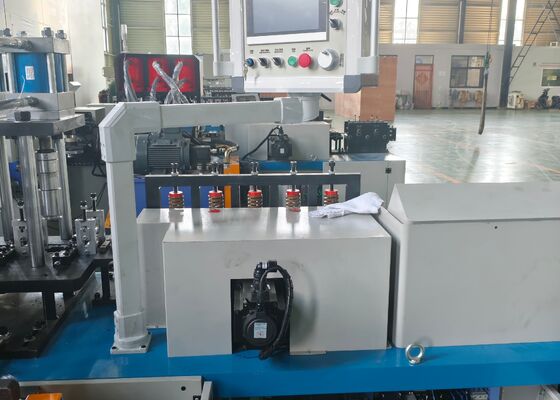

2-6mm Processing Thickness Flat Iron Banding Machine For Transportation Industry

Large Image : 2-6mm Processing Thickness Flat Iron Banding Machine For Transportation Industry

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	FF60

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	500 sets/year

Contact Now

Detailed Product Description

Processing Width:	20-60mm	Processing Thickness:	2-6mm
Min. Diameter:	30mm	Max. Diameter:	1500mm
Max. Feeding Speed:	55m/min	Max. Bending Speed:	800°/sec
Punching Cylinder:	150*50	Feeding Servo Motor:	3kw/2 Unit

2-6mm Processing Thickness Flat Iron Banding Machine For Transportation Industry

Product Application:

Mainly used for clamp processing in industries such as transportation, power and seismic bracing.

Product Parameter Configuration Table:

Model	FF60-6
Processing width	20-60mm
Processing thickness	2-6mm
Minimum diameter	30mm
Maximum diameter	1500mm
Maximum feeding speed	55m/min
Maximum bending speed	800°/sec
Punching cylinder	150*50
Feeding servo motor	5.5kw/1 unit
Cut-off cylinder	150*50
Bending servo motor	3kw/2 units
Hydraulic system	Huade
Telescopic servo motor	1kw
Electrical control system	Weichuang / Xinjie
Hydraulic power station motor	7.5kw
Mold Material	DC53
Feed Roller Material	Cr12MoV
Dimensions	2.8×2×1.8m
