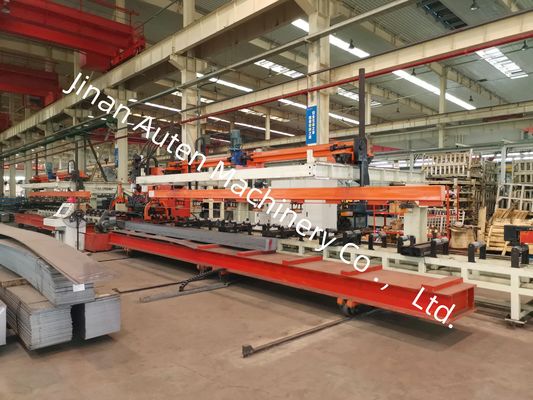

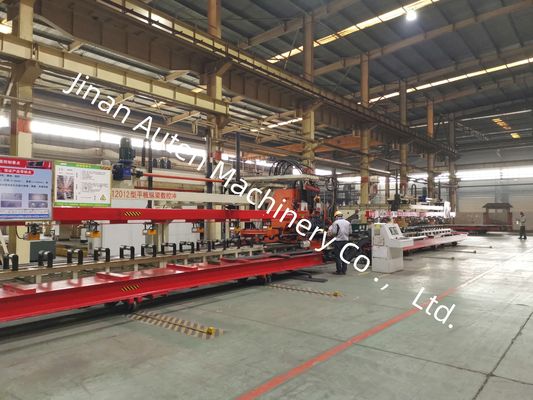

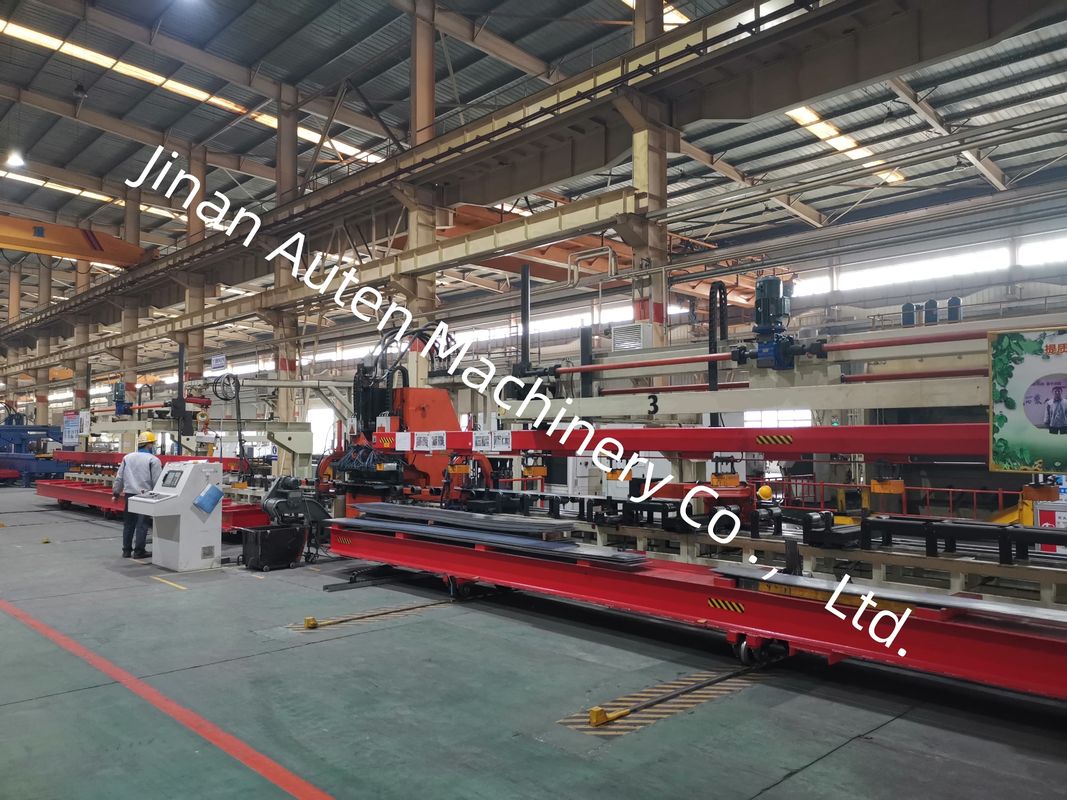

CNC Truck Beam High-Strength Automotive Punching Machine Processing Line In Commercial Vehicle
Product Introduction:
Our company has successfully developed an advanced, high-performance CNC sheet metal processing line dedicated to the precision punching of high-strength automotive longitudinal beams. Specifically engineered for ultra-wide and thick-gauge beam components used in heavy-duty trucks, mining vehicles, construction equipment, and other specialized commercial vehicles, the system delivers outstanding machining precision, high production efficiency, and exceptional operational stability, making it an ideal solution for modern vehicle chassis manufacturing.
Main technical parameters:
| No. |
Name |
Value |
| 1 |
Nominal force |
1200KN |
| 2 |
Processing plate size and range |
| 3 |
Length |
4000～8000mm |
| Width |
200～550mm |
| Thickness |
3～6mm |
| Incoming sheet material sickle bending |
≤7mm/10m |
| X-axis sheet unevenness |
≤10mm/1000mm ,≤20mm/8000mm |
| Y-axis sheet unevenness |
5mm |
| Sheet warping |
≤50mm |
| Sheet material mechanical properties |
σb=510～850N/mm2 |
| 4 |
Max. Punching diameter |
φ60mm |
| 5 |
Number of modules |
25 |
| 6 |
Max. speed |
| X-axis |
Max=50m/min |
| Y-axis |
Max=30m/min |
| 7 |
Processing accuracy |
| X-axis |
±0.25/600mm ,±0.50 / 3000mm,±0.7 / 8000 mm |
| Y-axis |
±0.2 mm / 600 mm |
| 8 |
Processing method |
Filtration |
| 9 |
Reference |
The X-axis is along the length of the plate, and the X-coordinate of the hole is based on the end of the plate; the Y-axis is the width of the plate, and the reference is the center line.
|
| 11 |
Operating mode |
Manual, automatic |
Product Features
1. The production line incorporates an advanced 828D CNC control system paired with a high-performance servo-controlled feeding mechanism. This integrated configuration delivers high production speeds while ensuring precise dimensional control, excellent positioning repeatability, and consistent machining quality throughout the entire production cycle.
2. A servo-actuated automatic centering mechanism is integrated into the material support roller assembly, enabling the processing of longitudinal beams with varying cross-sectional profiles. The system automatically compensates for height differences within a range of 0–200 mm, ensuring accurate workpiece alignment and stable material feeding during machining.
3. The machine supports the installation of up to 25 punching dies with different diameters. Its optimized tooling arrangement facilitates rapid die changes and convenient installation, reducing setup time while enhancing production flexibility and operational efficiency.
4. The entire production sequence, including workpiece loading, punching, and finished-part unloading, operates automatically. This integrated workflow minimizes manual handling, reduces labor demands, and significantly improves overall manufacturing productivity.
5. Punching scrap is automatically collected and discharged through an integrated waste-handling system. This design helps maintain a clean working area, prevents scrap accumulation, and supports continuous, uninterrupted production.
6. The intelligent programming software supports direct import of AutoCAD drawings and DXF files generated by widely used CAD systems. Equipped with an intuitive Human–Machine Interface (HMI), the software automatically converts design information into executable machining programs, simplifying programming, reducing setup time, and minimizing the risk of programming errors.
The product display features a representative selection of finished longitudinal beam samples produced by this automated processing line, covering various specifications commonly used in mining trucks, heavy-duty commercial vehicles, construction machinery, and specialized transport equipment. These sample components demonstrate the machine's precise hole positioning, high punching quality, and consistent dimensional accuracy. They enable customers, engineers, and quality inspection personnel to evaluate the equipment's machining capabilities, manufacturing precision, and operational reliability through direct examination of actual workpieces.
This advanced CNC Longitudinal Beam Punching Machine is specifically developed for the precision punching of flat longitudinal beams used in automotive manufacturing. It is widely utilized in the fabrication of chassis longitudinal beams for heavy-duty trucks, mining vehicles, construction machinery, and other specialized commercial vehicles. By producing accurately positioned hole patterns that comply with demanding structural assembly and engineering specifications, the machine provides a reliable manufacturing solution for critical load-bearing components. Its high machining accuracy, dependable operating performance, and automated production capabilities contribute to increased manufacturing efficiency, improved structural integrity, and consistently high finished-product quality.
