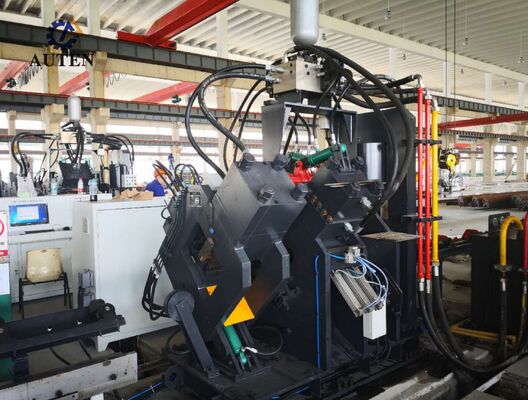

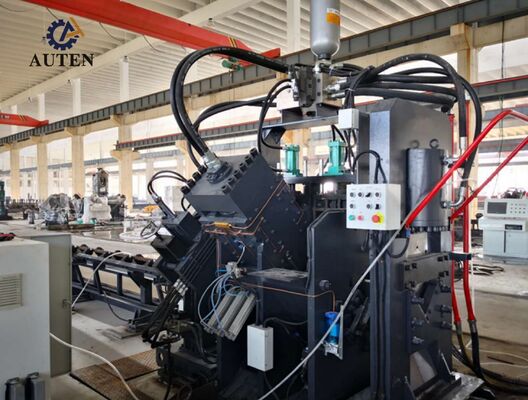

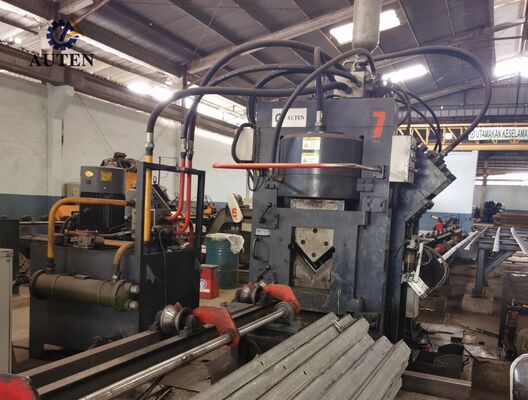

Precision CNC Angle Punching Machine Equipped With Lofting Software Programming And 3 CNC Axes For Angle Steel Processing

Precision CNC Angle Punching Machine Equipped With Lofting Software Programming And 3 CNC Axes For Angle Steel Processing

Product Introduction:

The machine is specialized equipment designed for punching, marking, and shearing angle steel in the angle steel tower industry, as well as in steel structure construction and building applications.

Product parameters:

Product Features:

1. The machine integrates CNC control technology with servo-driven material feeding, delivering high processing efficiency and consistent workpiece accuracy. Its key hydraulic, pneumatic, and electrical components are supplied by internationally reputable manufacturers.

2. Two or three sets of punches and dies are installed on each side, supporting three different punch diameters. This configuration enables the machine to complete all required hole-punching operations in a single setup.

3. The CNC feeding trolley is driven by an AC servo motor, with position feedback provided by a photoelectric encoder. A closed-loop control system ensures accurate positioning and reliable feeding precision.

4. The machine is equipped with an industrial computer featuring a bilingual Chinese/English interface for convenient operation and workpiece drawing visualization. Programming is straightforward, supporting both manual input and machining programs generated by steel structure detailing software.

5. The CNC infeed carriage is servo-driven and incorporates a photoelectric encoder for position feedback. Its closed-loop positioning system ensures precise material feeding and consistent machining accuracy.

6. Marking, punching, and shearing operations are performed automatically. Completed angle steel workpieces are discharged by a pneumatic turnover mechanism, minimizing manual intervention and improving overall production efficiency.

7. The marking unit adopts a rigid, enclosed-frame structure to ensure structural stability during operation. It is equipped with four sets of character boxes, which can be automatically selected according to the programmed processing requirements.

8. An optional shearing function is available, enabling the machine to cut angle steel to specified lengths according to production requirements.

9. The control system consists of a host computer, CNC controller, servo motors, PLC, and detection switches. After the workpiece drawing is entered, the system automatically generates the corresponding machining program, simplifying programming and production preparation.

10. The hydraulic system provides the power required for punching, shearing, marking, material clamping, and character-box replacement, coordinating these operations to support automated processing.

These sample workpieces are representative of standard specifications and typical processing requirements in the angle steel tower manufacturing industry. They enable customers to evaluate the machine's machining quality, dimensional accuracy, and manufacturing workmanship through practical examples. By providing a tangible reference for assessing processing capabilities and compliance with production requirements, these samples support objective equipment evaluation and informed purchasing decisions.

In ultra-high-voltage (UHV) transmission line construction, transmission towers must withstand severe weather conditions and substantial structural loads. This equipment plays an important role in manufacturing the angle steel components that form the primary framework of these towers. It performs consistent punching and marking operations on angle steel used in tower bodies, cross-arms, and other critical structural sections. Precise hole positioning and dimensional consistency help ensure reliable component connections and contribute to the overall structural integrity and stability of transmission towers.
