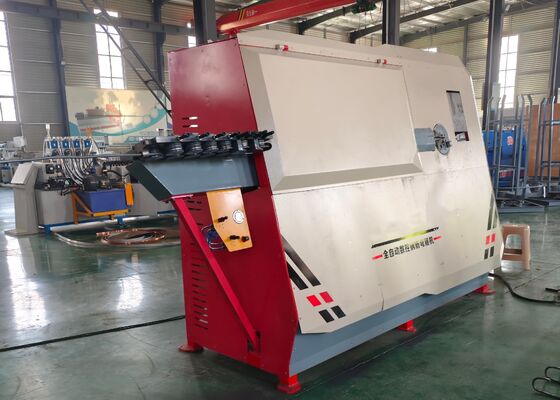

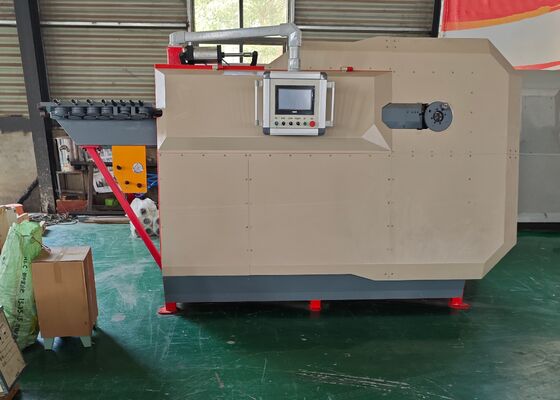

150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension

150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension
150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension 150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension 150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension

Large Image :  150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: FF50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Processing Width: 20-50mm Processing Thickness: 2-5mm
Min. Diameter: 30mm Max. Diameter: 1500mm
Max. Feeding Speed: 55m/min Max. Bending Speed: 800°/sec
Punching Cylinder: 125*30 Feeding Servo Motor: 3kw/1 Unit

150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension



Product Application:



The equipment is specifically designed for clamp fabrication in a wide range of industries, including transportation, power infrastructure, and seismic restraint and bracing applications.



Product Parameter Configuration Table:



Model FF50-5
Processing width 20-50mm
Processing thickness 2-5mm
Min. diameter 30mm
Max. diameter 1500mm
Max. feeding speed 55m/min
Max. bending speed 800°/sec
Punching cylinder 125*30
Feeding servo motor 3kw/1 unit
Cut-off cylinder 150*50
Bending servo motor 3kw/1 unit
Hydraulic system Huade
Telescopic servo motor 1kw
Electrical control system Weichuang / Xinjie
Hydraulic power station motor 7.5kw
Mold Material DC53
Feed Roller Material Cr12MoV
Dimensions 2.2×1.6×1.8m



150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension



Technical advantages:



1. The CNC control system features a user-friendly operating interface and comprehensive control capabilities, facilitating straightforward operation, streamlined process management, and efficient equipment handling.



150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension



2. The servo-driven positioning system ensures high positioning accuracy and precise dimensional control, delivering consistent machining results and reliable finished-product quality.



150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension



3. The machine accommodates flat steel materials in various specifications, with customized configurations available to satisfy specific production requirements and support a broad range of manufacturing applications.



150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension



Typical products include U-bolts, M-shaped clamps, seismic bracing suspension clamps, and other specialized structural fastening components.



150*50 Cut-Off Cylinder CNC Flat Iron Hoop Forming Machine 2.2×1.6×1.8m Dimension
