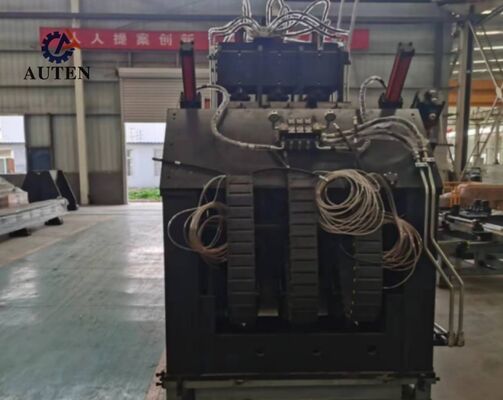

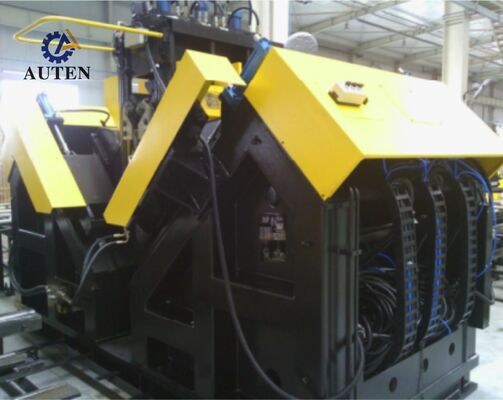

9 Axes CNC Angle Drilling Machine Featuring Air Atomization Dry Internal Cooling

9 Axes CNC Angle Drilling Machine Featuring Air Atomization Dry Internal Cooling

Product Introduction:

The CNC angle steel drilling and marking production line is specifically engineered for machining large, high-strength angle steel profiles used in power transmission tower manufacturing. It delivers accurate hole positioning and consistent drilling quality across all specified hole locations. By integrating advanced automation technology, the system improves manufacturing productivity while minimizing manual handling and operator involvement.

Main Parameters:

Product Features:

1. The production line incorporates an automated material-handling system consisting of a transverse feeding conveyor, rotary loading rack, automatic discharge system, and precision feeding mechanism. Drilling and marking operations are integrated into a continuous production process, enabling fully automated workpiece handling and machining. This configuration substantially reduces manual intervention and lowers labor requirements.

2. The drilling system is equipped with high-precision Taiwan-manufactured BT40 spindles featuring internal coolant delivery, providing reliable drilling accuracy and machining efficiency. Six CNC-controlled drilling heads are installed, with three positioned on each side of the angle steel. The opposing drilling heads can simultaneously process holes of the same diameter while maintaining consistent distances from the upper edges of the angle steel flanges.

3. The operating software provides a bilingual Chinese/English interface with a user-friendly layout and clear visualization of workpiece drawings, simplifying operation and production management.

4. Programming is efficient and convenient. Operators can generate machining programs by entering essential parameters, including workpiece dimensions, hole diameters, hole spacing, and hole quantities. Alternatively, CAD/CAM detailing software can be used to convert design data into machining files. The system also supports NC1 files generated by TEKLA software, facilitating the integration of engineering design and production processes.

5. Essential hydraulic, pneumatic, and electrical components are sourced from reputable manufacturers and established industrial brands, helping ensure dependable operation, consistent performance, and extended equipment service life.

6. An integrated automatic fault-diagnosis function enables the system to identify equipment abnormalities efficiently, simplifying troubleshooting and reducing maintenance downtime.

7. A shearing unit is available as an optional configuration. Its dual-blade cutting mechanism is designed to provide efficient angle steel cutting and expand the production line's processing capabilities.

These specimens exemplify a variety of standard specifications and hole configurations of angle steel typically used in the construction of transmission line towers. They serve as a visual reference for prospective users or inspectors to assess the operational performance of the equipment, offering clear and measurable benchmarks to determine whether the equipment complies with the required manufacturing standards for transmission line tower production.

In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers endure extreme weather conditions and substantial loads, this equipment plays a crucial role in processing the angle steel components that form the core load-bearing structures of the towers. It effectively performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other essential structural elements, ensuring precise dimensional accuracy and dependable connection performance. As a result, it significantly contributes to the long-term structural integrity and stability of the transmission towers throughout their entire service life.
