ADM2532 CNC Angle Metal Drilling Marking Processing Machine Line For Machining Angle Steel
Product Introduction:
The CNC angle steel drilling and marking production line is specifically engineered for machining large, high-strength angle steel profiles used in power transmission tower manufacturing. It delivers accurate hole positioning and consistent drilling quality across all specified hole locations. By integrating advanced automation technology, the system improves manufacturing productivity while minimizing manual handling and operator involvement.
Main Parameters:
| Model |
ADM2532 |
| Angle size (mm) |
100×100×10~250×250×32 |
| Max. length of blank(m) |
14 |
| Taper of drilling spindle |
BT40 |
| Max. Drilling diameter (mm) |
Ф40 |
| Qty. of drill on each side (pcs) |
3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) |
6000 |
| Max.cutting speed of drill (m/min) |
200 |
| CNC axes |
9 |
| Range of back mark (mm) |
50-220 (stepless) |
| Max. angle feeding speed (m/min) |
40 |
| Marking force (kN) |
1000/1200 |
| Qty. of character group |
4 |
| Qty. of character in each group |
18 |
| Character size(mm) |
14×10×19 |
| Drill bit cooling system |
Air atomization dry internal cooling |
| Programming mode |
Lofting software or instruction programming |
| Overall dimensions (m) |
34×8×3 |
Product Features:
1. The production line is equipped with an integrated automated material-handling system, including a transverse conveyor, rotary loading rack, automatic discharge mechanism, and precision feeding unit. Drilling and marking operations are integrated into a continuous processing sequence, enabling automated workpiece transfer and machining. This streamlined configuration reduces manual handling and lowers labor requirements.

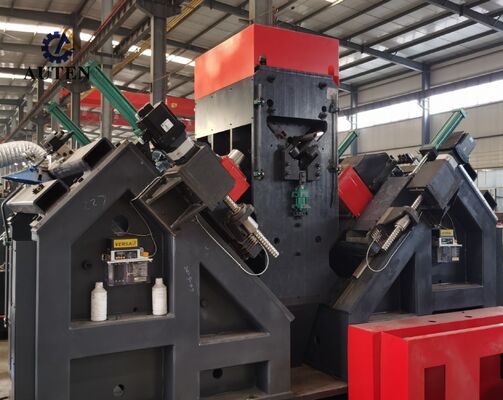

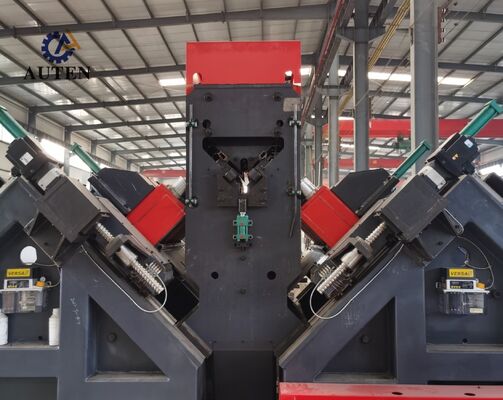

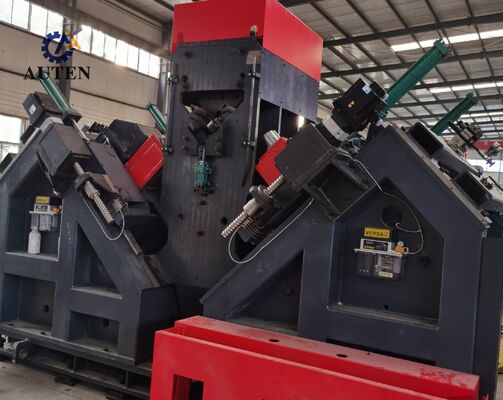

2. The drilling system is fitted with high-precision BT40 spindles manufactured in Taiwan and equipped with internal coolant delivery for accurate drilling and efficient cutting performance. Six CNC-controlled drilling heads are installed, with three positioned on each side of the angle steel. Opposing drilling heads can simultaneously machine holes of the same diameter while maintaining consistent distances from the upper edges of the angle steel flanges.
3. The machine operating software provides a bilingual Chinese/English interface, featuring intuitive controls and clear workpiece drawing displays to simplify operation and improve production management efficiency.
4. The programming procedure is designed for simplicity and efficiency. Operators can create machining programs by entering essential parameters, such as workpiece dimensions, hole diameters, hole spacing, and hole quantities. Alternatively, CAD/CAM detailing software can convert engineering drawings and design data into machine-readable programs. The system also supports NC1 files generated by TEKLA, facilitating seamless integration between engineering design and manufacturing processes.
5. Key hydraulic, pneumatic, and electrical components are sourced from recognized suppliers and established industrial brands, helping ensure dependable operation, stable performance, and a prolonged equipment service life.
6. The machine is equipped with an automatic fault monitoring and diagnostic system that detects operational abnormalities, assists in fault identification, and helps reduce downtime associated with troubleshooting and maintenance.
7. A shearing unit is available as an optional configuration. Its dual-blade cutting mechanism enables efficient angle steel shearing and further expands the production line's processing capabilities.
These sample workpieces cover a variety of standard dimensions and hole arrangements commonly used in angle steel transmission tower fabrication. They serve as practical reference samples for prospective customers and inspection personnel to evaluate the machine's machining capabilities and finished-product quality. By examining the processed workpieces, users can determine whether the equipment satisfies the relevant manufacturing standards and processing requirements for transmission tower production.
In ultra-high-voltage (UHV) transmission line projects, transmission towers must withstand harsh weather conditions and significant structural loads. This equipment supports the fabrication of angle steel components that constitute the towers' primary load-bearing structures. It performs precision drilling and punching on angle steel members used in tower bodies, cross-arms, and other essential structural assemblies, helping achieve accurate dimensions and dependable joint connections. These processing capabilities contribute to the structural strength, operational stability, and long-term service reliability of transmission towers throughout their intended operating life.
