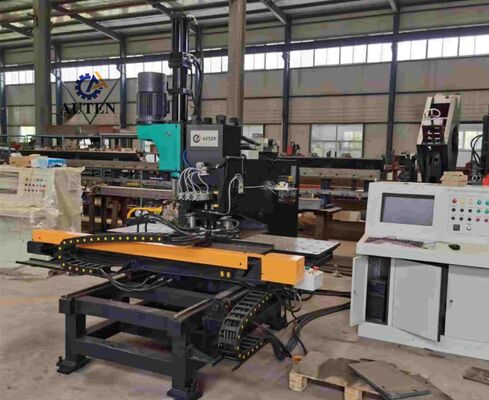

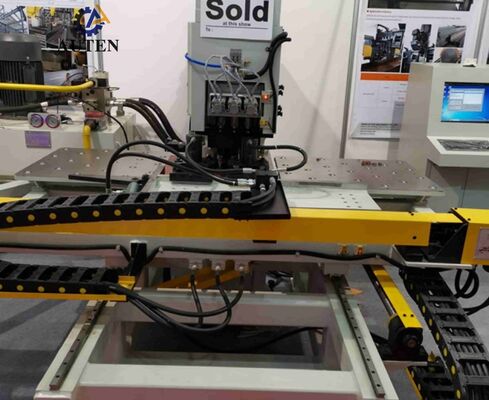

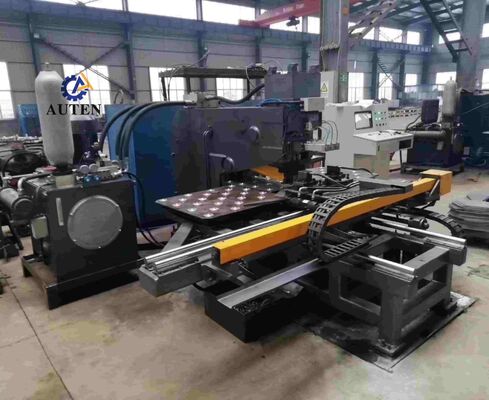

1. The machine is built around a C-shaped frame fabricated from welded steel plates, providing excellent structural rigidity and a generous working area. It incorporates three tooling stations, including one dedicated to marking, with automatic station selection to optimize the processing sequence. The clamping mechanism accommodates workpieces of varying sizes, while a zero-point positioning stop ensures accurate alignment. A ball-transfer worktable facilitates smooth material movement. The X- and Y-axis movements are driven by servo motors and precision ball screws, with the PLC control system coordinating punching positions for automated machining. Operator-defined workpiece programs can be stored, retrieved, and reused for subsequent production runs.
2. By integrating CNC control technology with a servo-driven feeding system, the machine achieves high processing efficiency, dependable operation, and repeatable machining precision.
3. The principal functional assemblies adopt a modular construction, simplifying routine servicing, facilitating component replacement, and reducing maintenance-related downtime.
4. Punching, marking, and drilling operations can be performed on the same steel plate within a unified machining process, minimizing workpiece transfers and improving overall production efficiency.
5. The drilling unit features rapid positioning, controlled low-speed feed during machining, and high-speed return movement. This optimized operating sequence shortens machining cycles and enhances overall production throughput.
6. An integrated fault monitoring and diagnostic system tracks machine operating conditions, helps identify abnormalities, and facilitates troubleshooting and routine maintenance.
7. The CNC control system provides flexible, user-friendly programming capabilities. Operators can directly enter hole diameters, hole coordinates, and workpiece quantities into the computer. In addition, the system supports machining programs generated by specialized lofting software and direct CAD/CAM data conversion, simplifying programming procedures and accommodating diverse production requirements.
