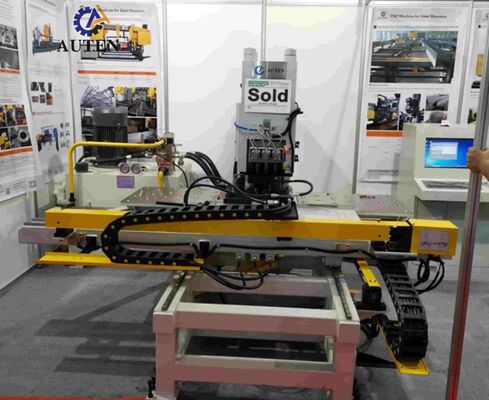

High-Efficiency CNC Plate Punching Marking And Drilling Machine With Φ50mm Drilling Capacity

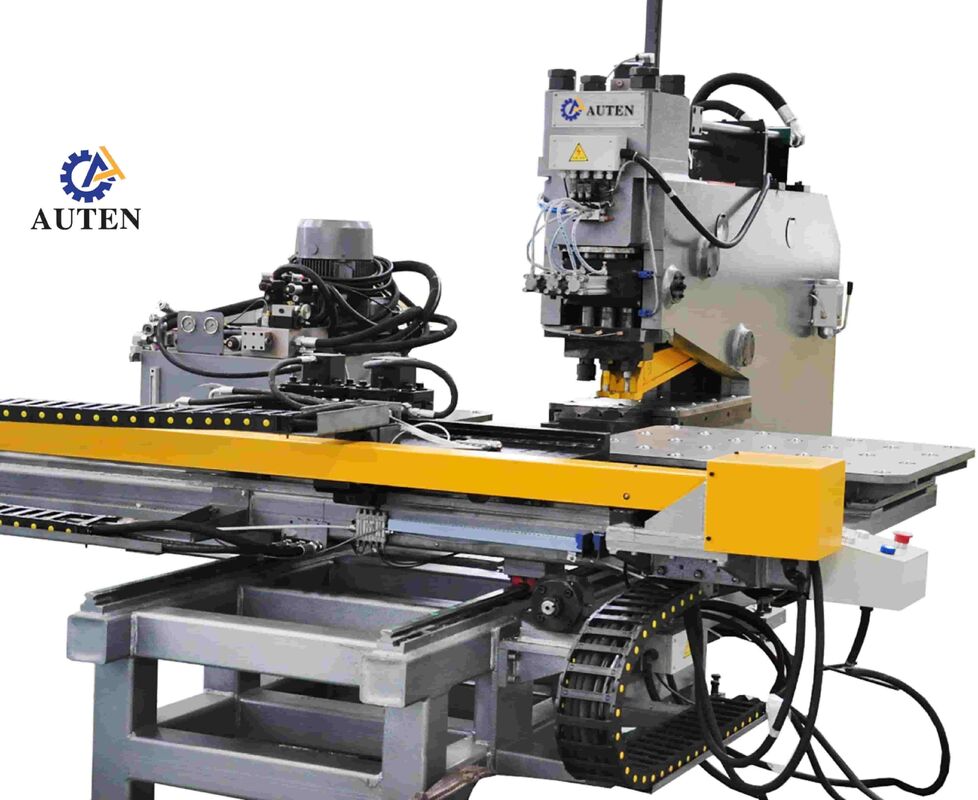

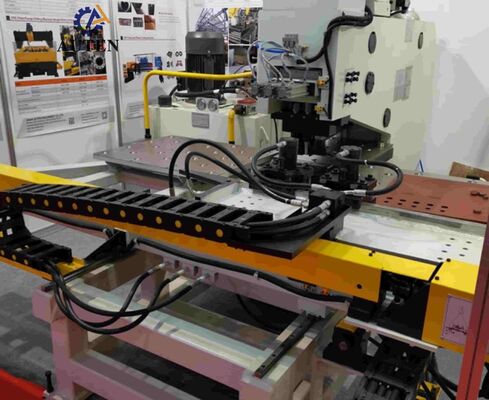

1. The machine features a C-shaped frame constructed from welded steel plates, offering high structural strength and an ample machining area. It is equipped with three tooling stations, including a dedicated marking station, with automatic station selection to streamline the processing sequence. The clamping system supports workpieces of different dimensions, while a zero-point positioning stop ensures precise alignment. A ball-transfer worktable enables smooth workpiece movement. The X- and Y-axis systems are driven by servo motors and precision ball screws, while the PLC coordinates punching positions to facilitate automated machining. Workpiece programs created by operators can be saved, recalled, and reused for subsequent production batches.

2. The combination of CNC control technology and a servo-controlled feeding mechanism enables efficient machining, reliable equipment operation, and consistent processing accuracy.

3. The main functional assemblies feature a modular design, making routine maintenance more convenient, simplifying component replacement, and minimizing downtime caused by servicing.

4. Punching, marking, and drilling can be completed on the same steel plate within an integrated processing workflow, reducing workpiece handling and improving overall production efficiency.

5. The drilling unit supports rapid positioning, controlled low-speed feed during machining, and high-speed return movement. This optimized motion sequence reduces cycle times and increases overall production capacity.

6. The machine incorporates an automatic fault monitoring and diagnostic system that continuously monitors operating conditions, assists in detecting abnormalities, and simplifies troubleshooting and preventive maintenance.

7. The CNC control system offers flexible and straightforward programming functions. Operators can enter hole diameters, hole coordinates, and workpiece quantities directly into the computer. The system also supports machining programs produced by specialized lofting software and direct CAD/CAM data conversion, streamlining programming and meeting a variety of manufacturing requirements.
