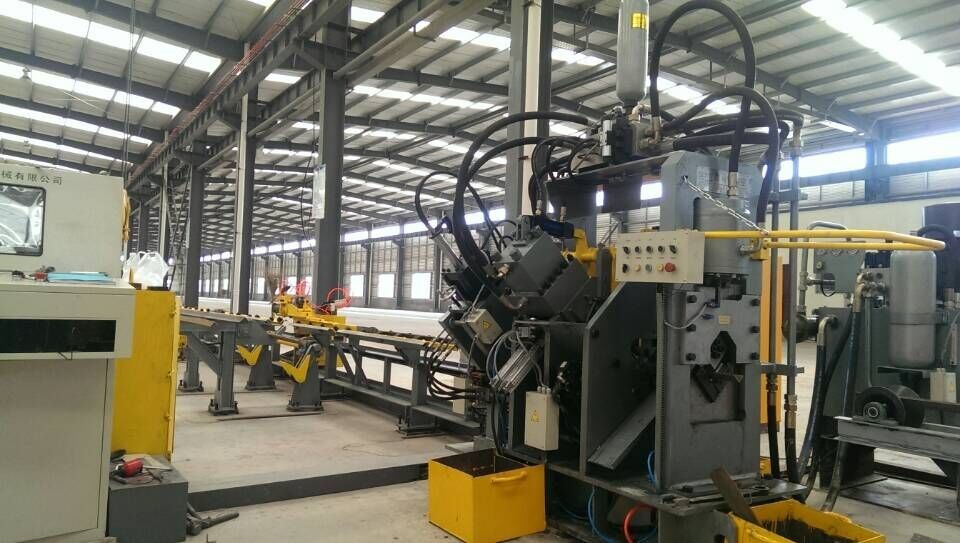

PLC Control CNC Steel Angle Cutting Machine Stable Work Piece Precision

PLC Control CNC Steel Angle Cutting Machine Stable Work Piece Precision
PLC Control CNC Steel Angle Cutting Machine Stable Work Piece Precision

Large Image :  PLC Control CNC Steel Angle Cutting Machine Stable Work Piece Precision

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: JNC1010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per year
Detailed Product Description
Functions: Punching, Marking, And Cutting Angle Bars Processing Angle Size: 40х40х3~100х100х10mm
Max. Punching Diameter: 26mm Max. Punching Thickness: 10mm
Name: CNC Angle Processing Machine Feature: Stable Work Piece Precision
High Light:

cnc angle drilling machine

,

angle bar cutting machine

High Speed CNC Angle Punching, Marking and Single Balde Cutting Machine



Product composition:

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.



Product Feature:

1. Feeding speed and punching speed are very fast. The speed is 3 times higher than previous common angle line machines. Greatly improve the production efficiency.

2. There are two sets of punching die-station on each side which can be installed two kinds of punches with different diameters.
3. Marking unit adopts closed frame with good rigidity. Four sets of character boxes are fixed on the marking unit which can be selected by program. Marking stadia can be set at will.

Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision. Key hydraulic, pneumatic and electric parts all imported.
4. Hydraulic system mainly serves for punching, cutting, marking, pressing and transposition of character boxes. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

5. Control system consists of upper computer, CNC system, servo motor, PLC and outside detection switch etc. Processing program can be generated automatically as long as operator inputs the dimension of workpiece. It can also accept certain processing program which is made from special software. The program can be stored, selected, displayed and communicated as per the workpiece No.
6. X,A,B CNC axis are driven by imported brushless AC servo motors. The CNC system is controlled by imported PLC, which attached with three axis CNC modules. The modules and three axis servo system constitute a position control loop. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.

7. Single blade shearing ensures smooth shearing section and save raw material. With function of self-diagnosis for failures.



Applicable industry:
Used for angle opening & closing in the steel tower industry.
1. Easy angle adjustment and indicated by scale range.
2. Angle opening & closing mould adopts combined unit to conveniently replace & adjust it.
3. Simultaneous angle opening & closing on the one machine, with small working area.
4.The linearity & flatness of finished products are accordance with GB2694.
5. Its biggest opening & closing angle is 25°, as for the length of opening & closing, we can manufacture moulds according to customers’ request, and its deforming length is 600mm. The machine has independent hydraulic station and electric control system, with simple structure, safe using, convenient & reliable.



Specifications:

Model JNC1010 JNC1412 JNC2020
Angle size (mm) 40х40х3~
100х100х10
40х40х3~
140х140х12
50х50х4~
200х200х20

Max. Punching

(Dia. х Thi.) (mm)

Φ26х10 Φ26х12 Φ26х20
Punching force (kN) 630 630/1000 1000/1200
Marking force (kN) 630 630/900/1200
Cutting force (kN) 1000 900/1800 1540/4300
Max. length of blank (m) 12 12 14
Max.length of finished (m) 10 12 14
Punches per side 2 2 or 3 3
Group of marking letters 4 4 4
Number of letters per group 12
Character size(mm) 14x10x19
CNC axes 3
Cutting mode Single Blade Double Blade or Single Blade
Feeding speed of angle(m/min) 80 80 60
Processing precision Accordance with GB2694
Programming mode Input by keyboard,USB interface
Overall dimension (m) About 28x6.5x2.2 About 29x6.5x2.2 About 32x7x2.35
