Detailed Product Description
Functions: Punching, Marking, And Cutting Angle Bars Processing Angle Size: 50х50х4~200х200х20mm
Max. Punching Diameter: 26mm Max. Punching Thickness: 20mm
Name: CNC Angle Line Machine Feature: High Speed
High Light:

cnc angle drilling machine


angle bar cutting machine

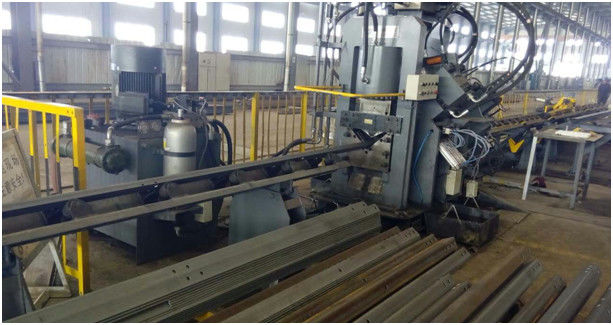

High Speed CNC Angle Punching, Marking and Shearing Machine Model JNC2020



Name JNC1412 JNC2020
Processing angle range ∠40x40x3~∠140x140x12 ∠63x63x4~∠200x200x20
Maximum punch diameter φ26mm φ26mm
Punch nominal force 540kN 950kN
Nominal force 540kN 540kN
Cut off nominal force 1800kN 1540kN
Cut off mode Single blade cutting Double blade cutting
Maximum length of workpiece 12m 14
Maximum length of finished workpiece 8m 12
The number of each side of the punch 2 3
Number of punched holes in each side Arbitrariness Arbitrariness
No. of character group 4 4
Dimension of characters 14×10×19mm 14×10×19mm
Numerical control axis 3 axis 3 axis
Angle feeding speed 80m/min 80m/min
Programming mode Keyboard input, USB interface input, CAD/CAM conversion
Machine tool dimensions 25.4×8×2.4m 31×8×2.8m
Weight of machine about 12000 Kgs about 14000 Kgs


Product composition:

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.


Product Feature:

1. Feeding speed and punching speed are very fast. The speed is 3 times higher than previous common angle line machines. Greatly improve the production efficiency.

2. There are two sets of punching die-station on each side which can be installed two kinds of punches with different diameters.
3. Marking unit adopts closed frame with good rigidity. Four sets of character boxes are fixed on the marking unit which can be selected by program. Marking stadia can be set at will.

Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision. Key hydraulic, pneumatic and electric parts all imported.
4. Hydraulic system mainly serves for punching, cutting, marking, pressing and transposition of character boxes. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.

5. Control system consists of upper computer, CNC system, servo motor, PLC and outside detection switch etc. Processing program can be generated automatically as long as operator inputs the dimension of workpiece. It can also accept certain processing program which is made from special software. The program can be stored, selected, displayed and communicated as per the workpiece No.
6. X,A,B CNC axis are driven by imported brushless AC servo motors. The CNC system is controlled by imported PLC, which attached with three axis CNC modules. The modules and three axis servo system constitute a position control loop. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.

7. Single blade shearing ensures smooth shearing section and save raw material. With function of self-diagnosis for failures.


High Efficiency CNC Angle Punching Machine , CNC Angle Shearing Machine 0
