Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic

Large Image : Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	JNC1412

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	200 sets/year

Contact Now

Detailed Product Description

Function:	Punching, Marking, Cutting	Angle Size（mm）:	∟40×40×3～∟140×140×12
Max. Length Of Blank (m):	12	Max. Length Of Finished (m):	10
Max. Punching (dia. х Thi.) (mm):	Φ26×12（Material：Q345 510N/mm2）	Punches Per Side:	2
Punching Force (kN):	630	Marking Force (kN):	630
Cutting Force (kN):	1800
Highlight:	cnc internal grinding machine , cnc profile grinding machine

Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic

Applicable Industry:

This machine is a specialized and high-performance equipment specifically engineered for precision operations such as angle steel punching, marking, and shearing within the angle steel tower industry. It is meticulously designed to cater to the unique processing requirements of angle steel components, which are widely used in the construction of transmission towers, communication towers, and other steel structure towers. By integrating advanced technologies, it ensures high accuracy, efficiency, and stability in handling various specifications of angle steel, thereby playing a crucial role in enhancing the overall quality and production efficiency of angle steel tower manufacturing.

Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic 0

Specifications:

Functions	Punching, marking, cutting
Angle size(mm)	∟40×40×3～∟140×140×12
Max. length of blank (m)	12
Max. length of finished (m)	10
Max. Punching (dia. х thi.) (mm)	Φ26×12(Material:Q345 510N/mm2)
Punches per side	2
Punching force (kN)	630
Marking force (kN)	630
Cutting force (kN)	1800
Group of Marking letters	4
Number of letters per group	12
Dimension of letter (mm)	14×10×19
Cutting mode	Single blade cutting
CNC axes	3
Feeding speed of angle (m/min)	80
Cooling method of hydraulic system	Water cooling
Processing precision	Accordance with GB2694
Program function	Input by keyboard and USB interface
Dimension(mm)	28000×6500×2200

Product Composition:

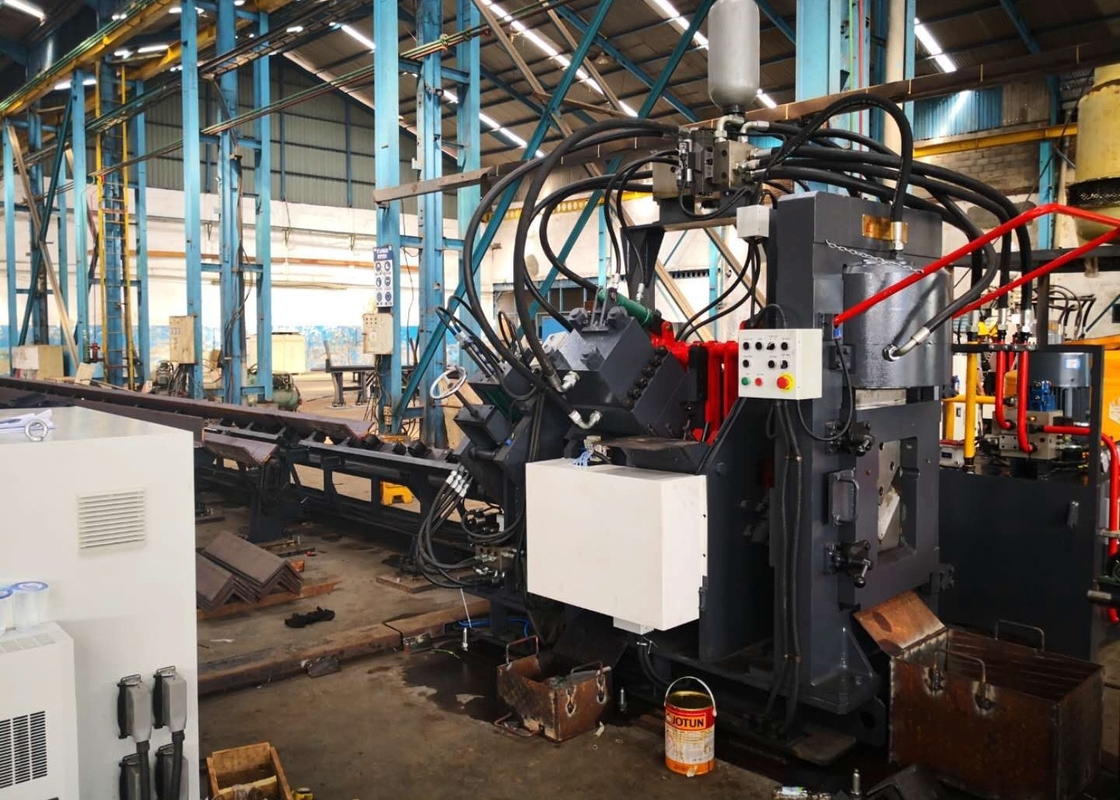

This machine is primarily composed of a transverse conveyor, a rotating loading system, an infeed conveyor, a CNC infeed carriage, a punching unit, a marking unit, a cutting unit, an unloading conveyor, as well as hydraulic, electrical, and pneumatic systems, among other components.

Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic 1

Product Features:
1. Incorporates CNC technology and servo motor feeding, boasting high efficiency and stable workpiece precision. Key hydraulic, pneumatic, and electrical components are all imported.

Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic 2

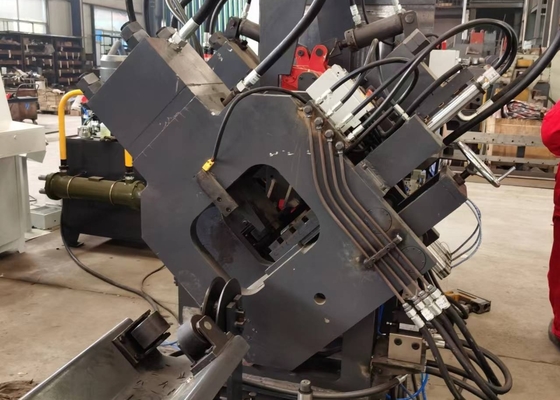

2. Each side is equipped with three sets of punches and dies, which can accommodate three types of punches with different diameters. The three sets of moulds can be moved collectively under PLC control to adjust the punching back mark.

3. The computer is equipped with a Chinese/English interface, featuring user-friendly operation and the capability to display workpiece drawings. Programming is simplified, and it can directly utilize program data generated by lofting software. When editing a program, only the workpiece dimensions, hole diameters, back marks, and workpiece quantity need to be input.

Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic 3

4. The CNC infeed carriage is driven by a servo motor, with information fed back via a photoelectric encoder. It adopts closed-loop control to ensure high positioning precision.

5. All marking, punching, and shearing operations are completed automatically. Finished angle steel can be unloaded by a pneumatic turnover device, thereby reducing operational intensity.
Single Blade Cutting CNC Angle Punching Marking And Shearing Line Water Cooling Hydraulic 4

This machine is a specialized equipment designed for angle steel punching, marking, and shearing within the angle steel tower industry. These samples, covering common specifications and processing scenarios in the angle steel tower industry, allow users to directly observe the equipment’s processing quality, accuracy, and craftsmanship, serving as a tangible reference for evaluating its performance and suitability for specific production needs.
