High Speed CNC Flange Drilling Machine for Metal Plates BT40 Spindle

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Speed CNC Flange Drilling Machine for Metal Plates BT40 Spindle

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: BHD6060
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Workpiece Size: 600x600mm Spindle Taper: BT40
Max.drilling Diamter: 35mm Tapping Diameter: M3-M15
Spindle Speed: 30~3000 R/min Feed Moving Speed: 0~9 M/min
High Light:

PFE Disposable Face Mask

,

CE Surgical Disposable Face Mask

High Speed CNC Flange Drilling Machine for Metal Plates BT40 Spindle

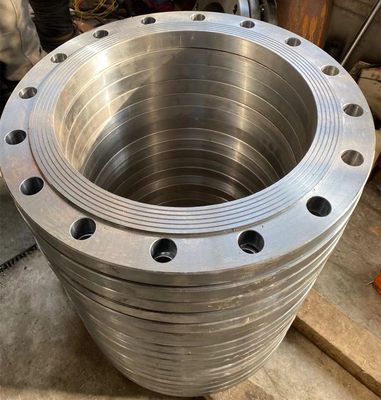

High Speed CNC Flange Drilling Machine for Metal Plates BT40 Spindle 0



Application:

The CNC gantry drilling and milling machine is mainly used for the drilling, chamfering, tapping, and milling of plate/structural parts with the thickness of flanges, discs, rings, plates and other workpieces within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The processing process is digitally controlled and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.



Equipment structure:

The equipment is integrally cast, mainly composed of worktable, fixed beam gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.



1,Drilling power head:

The drilling power head adopts a dedicated servo spindle motor, and the geared synchronous belt decelerates to increase the torque to drive the precision spindle. The spindle adopts the first three rear two five-row Japanese angular contact bearings to achieve stepless speed change. The spindle is equipped with a pneumatic tool change system to enable tool replacement Fast and convenient, the feed is driven by a servo motor and a ball screw. The X and Y axes can be linked, using semi-closed loop control, which can realize linear and circular interpolation functions. The spindle end is a BT40 taper hole, equipped with Italian Rotofors high-speed rotary joint, and can use high-speed U-drilling center to discharge water.





2,Automatic lubrication device and protection device

This machine tool is equipped with Taiwan's original volumetric partial pressure automatic lubrication device, which can automatically lubricate various motion pairs such as guide rails, lead screws, racks, etc., without dead ends, and ensure the service life of the machine tool. The X-axis and Y-axis of the machine tool are equipped with dust-proof shields, and splash-proof baffles are installed around the workbench.





Laser interferometer:

The laser interferometer is used to calibrate, and accurately check and compensate the pitch error, backlash, positioning accuracy, repeat positioning accuracy, etc., to ensure the dynamic, static stability and processing accuracy of the machine. Ballbar inspection Each machine uses a British RENISHAW company ballbar to calibrate the true circle accuracy and machine geometric accuracy, and perform circular cutting experiments at the same time to ensure the machine's 3D machining accuracy and circle accuracy.



Specifications:

Workpiece size LxW 600 x 600 mm
Gantry height 400 mm
Drilling power head Qty. 1
Spindle taper BT40
Max.drilling diamter Φ35 mm
Max.thickness 40 mm
Tapping diameter M3-M15
Spindle speed 30~3000 r/min
Servo spindle motor power 7.5kW
Distance from the lower end of the spindle to the worktable 200-540mm

Lateral movement of power head

(X axis)

Max.horizontal stroke 600 mm
Lateral movement speed 0~9 r/min
Servo motor power for lateral movement 10N/M
Gantry longitudinal movement (Y axis) Max. feed stroke 600 mm
Feed moving speed 0~9 m/min
Feed servo motor power 10N/M
Vertical ram feed motion (Z axis) Max. stroke 400 mm
Moving speed 0~8 m/min
Servo motor power 1x2.4kW (Brake)
Three-axis positioning accuracy X/Y/Z/A/B/C 0-0.02mm
Three-axis repeat positioning accuracy X/Y/Z/A/B/C 0-0.01mm
Machine weight / About 3.5T
Overall size LxWxH 2200x1600x2200 mm

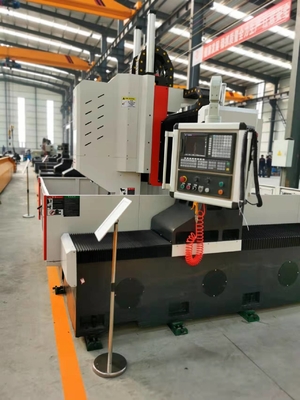

High Speed CNC Flange Drilling Machine for Metal Plates BT40 Spindle 1

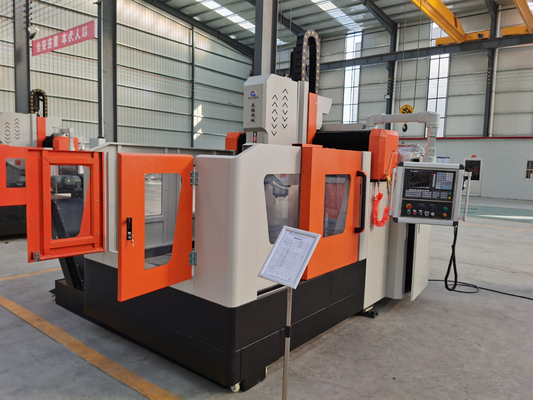

High Speed CNC Flange Drilling Machine for Metal Plates BT40 Spindle 2

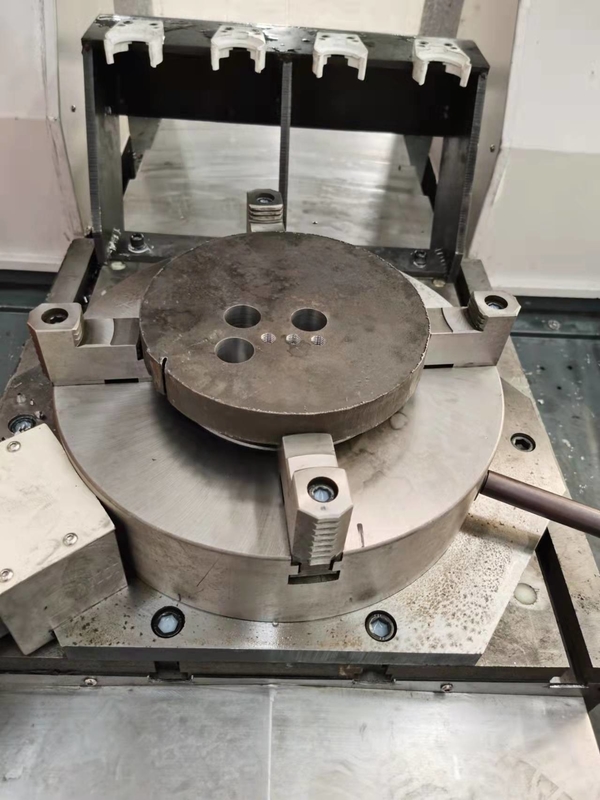

High Speed CNC Flange Drilling Machine for Metal Plates BT40 Spindle 3
