Product Details:
Payment & Shipping Terms:
|
| Functions: | Punching, Marking, And Cutting Angle Bars | Processing Angle Size: | 40х40х3~125х125х10mm |
|---|---|---|---|
| Max. Punching Diameter: | 26mm | Max. Angle Thickness: | 10mm |
| Name: | CNC Angle Processing Machine | Feature: | Stable |
| Cutting Force: | 1800 KN | Punching Force: | 630 KN |
| High Light: | 630kN CNC Angle Line Machine,ISO9001 CNC Angle Line Machine,80m/min CNC Angle Processing Machine |
||

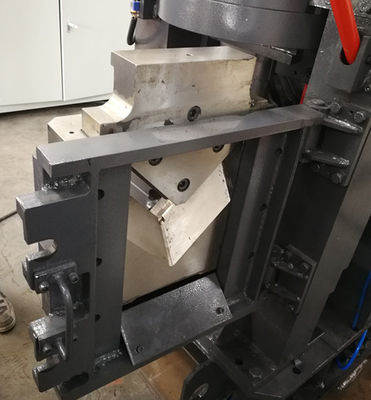

High Speed CNC Angle Punching Machine Line Punching Force 630 kN Angle Size 125х125х10mm
Applicable Industry:
This machine is used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2.Easy programming, adopt instruction programming and lofting software. It can read .NC1 files generated by TEKLA software.
3. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
4. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
5. Marking unit adopts closed frame with good rigidity. Four groups of character boxes are fixed on the marking unit which can be selected by program. Marking back mark can be set at will.
Specifications:
| Model | JNC125 |
| Functions | Punching, marking, cutting |
| Angle size(mm) | ∟40×40×3～∟125×125×10 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 10 |
| Max. Punching (dia. х thi.) (mm) | Φ26×10(Material:Q345 510N/mm2) |
| Max. Punching elliptical hole (dia. х thi.) (mm) | Ф22×50×8 (Material:Q345 510N/mm2) |
| Punches per side | 2 |
| Punching force (kN) | 630 |
| Marking force (kN) | 630 |
| Cutting force (kN) | 1000 |
| Group of Marking letters | 4 |
| Number of letters per group | 12 |
| Dimension of letter (mm) | 14×10×19 |
| Cutting mode | Single blade cutting |
| CNC axes | 3 |
| Feeding speed of angle (m/min) | 80 |
| Cooling method of hydraulic system | Water cooling |
| Processing precision | Accordance with GB2694 |
| Program function | Input by keyboard and USB interface |
| Dimension(mm) | 28000×6500×2200 |
