Gray Color CNC Angle Punching And Shearing Machine With Punching Force 1000kN

Gray Color CNC Angle Punching And Shearing Machine With Punching Force 1000kN
Gray Color CNC Angle Punching And Shearing Machine With Punching Force 1000kN

Large Image :  Gray Color CNC Angle Punching And Shearing Machine With Punching Force 1000kN

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: JNC2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per year
Contact Now
Detailed Product Description
Angle Bar Size: 50х50х4~200х200х20mm Max. Punching Diameter: 26mm
Max. Punching Thickness: 20mm Name: CNC Angle Processing Machine
Feature: Stable Shearing Force (kN): 1540
Punching Force (kN): 1000 Color: Gray
High Light:

1000kN CNC Angle Shearing Machine

,

3 Axis CNC Angle Shearing Machine

,

Stable CNC Angle Line Machine

Top Manufacture Multifunction High Speed CNC Angle Punching and Shearing Machine JNC2020





Application of the machine:

CNC angle attack machine is widely used in power transmission, steel tower, railway, bridge construction, used for marking and cutting angle of attack. Also known as CNC angle steel production line.

Features of CNC angle punching machine:

1. Independent hydraulic and electrical numerical control system, centralized control. At the same time, in order to facilitate the adjustment of molds and other parts, it has a distributed control function.

2. 3 CNC axis, used to adjust the hole distance and gauge lines on both sides, with high positioning accuracy;

3. The high precision of hole pitch positioning, the feed part with encoder is used for actual position feedback and error compensation, forming a closed loop control.


Specifications:



Model JNC1010 JNC1412 JNC2020
Angle size (mm) 40х40х3~
100х100х10		 40х40х3~
140х140х12		 50х50х4~
200х200х20

Max. Punching

(Dia. х Thi.) (mm)

 Φ26х10 Φ26х12 Φ26х20
Punching force (kN) 630 630/1000 1000/1200
Marking force (kN) 630 630/900/1200
Cutting force (kN) 1000 900/1800 1540/4300
Max. length of blank (m) 12 12 14
Max.length of finished (m) 10 12 14
Punches per side 2 2 or 3 3
Group of marking letters 4 4 4
Number of letters per group 12

Machine advantages:

1. Advanced software programs:

A) SUPERTIME independently writes software programs.

B) We can update the software program according to actual production needs to meet the special needs of customers.

C) The software program can read BOCAD and TEKLA lofting software. Now we have developed a program to connect with LANTEK.

D) The program can realize data exchange with the ERP system.

2. Low maintenance cost:

A) The operators strictly abide by our requirements, and the failure rate is low.

B) All electrical components are world-class brands, and suppliers are easy to find in any city.

C) We provide corresponding drawings for wearing parts, such as punches and dies, which you can produce in your own factory.

D) A team of engineers with more than 20 years, responsible for machine installation, commissioning and system training.

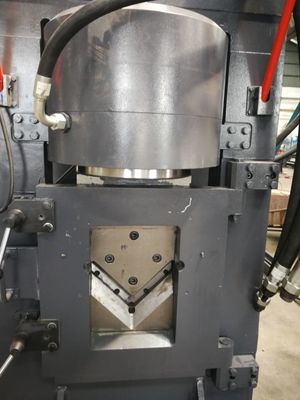

Gray Color CNC Angle Punching And Shearing Machine With Punching Force 1000kN 0Gray Color CNC Angle Punching And Shearing Machine With Punching Force 1000kN 1
