High Speed CNC Flange Drilling Machine China Factory Supply Directly

Certification
China Jinan Auten Machinery Co., Ltd. certification
China Jinan Auten Machinery Co., Ltd. certification
The cooperation is very enjoyable. Jinan Auten has an excellent professional team, the equipment works well and stable, the timely and enthusiastic after-sales service has impressed us. We hope that we can have more in-depth cooperation in the future!

—— PT. Bukaka

The CNC processing machine is easy for maintenance, high performance, moreover, the price is affordable.

—— Bob

Nice cooperation, we appreciate their patience, and hard working.

—— Mary

I'm Online Chat Now

High Speed CNC Flange Drilling Machine China Factory Supply Directly

High Speed CNC Flange Drilling Machine China Factory Supply Directly
High Speed CNC Flange Drilling Machine China Factory Supply Directly High Speed CNC Flange Drilling Machine China Factory Supply Directly High Speed CNC Flange Drilling Machine China Factory Supply Directly High Speed CNC Flange Drilling Machine China Factory Supply Directly

Large Image :  High Speed CNC Flange Drilling Machine China Factory Supply Directly

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: BHD1010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 200 sets/year
Detailed Product Description
Condition: New Automation: Automatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation Certification: ISO9001
Workpiece Size: 1000x1000mm Spindle Taper: BT50
High Light:

600mm Height CNC Flange Drilling Machine

,

Plate Drilling Machine 3000r/Min

,

Servo Spindle Motor Plate Drilling Machine

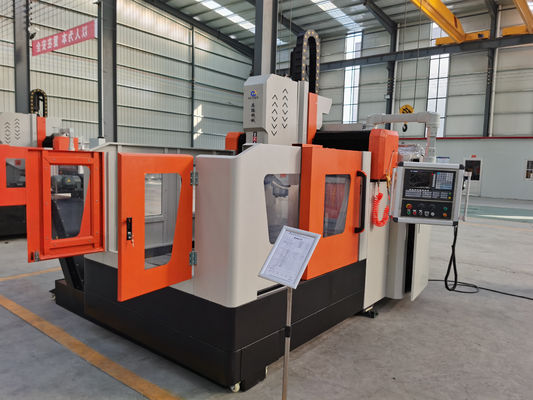

Top Quality High Speed CNC Flange Drilling Machine China Factory Supply Directly



Application:

The CNC gantry drilling and milling machine is mainly used for the drilling, chamfering, tapping, and milling of plate/structural parts with the thickness of flanges, discs, rings, plates and other workpieces within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The processing process is digitally controlled and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.



Equipment structure:

The equipment is integrally cast, mainly composed of worktable, fixed beam gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.



1, Movable sliding saddle:

The sliding saddle is a precision cast iron structure. The sliding saddle is equipped with two ultra-high load-bearing CNC hard-track sliding tables, a set of precision ball screw pairs and a high-precision planetary reducer connected to the servo motor to drive the drilling power The head moves in the Z-axis direction, which can realize the fast forward, work forward, fast reverse, stop and other actions of the power head. It has the functions of automatic chip breaking, chip removal and pause.



2, Drilling power head:

The drilling power head adopts a dedicated servo spindle motor, and the geared synchronous belt decelerates to increase the torque to drive the precision spindle. The spindle adopts the first three rear two five-row Japanese angular contact bearings to achieve stepless speed change. The spindle is equipped with a pneumatic tool change system to enable tool replacement Fast and convenient, the feed is driven by a servo motor and a ball screw. The X and Y axes can be linked, using semi-closed loop control, which can realize linear and circular interpolation functions. The spindle end is a BT50 taper hole, equipped with Italian Rotofors high-speed rotary joint, and can use high-speed U-drilling center to discharge water.

Specifications:



Workpiece size LxW 1000x1000 mm
Gantry height 600 mm
Drilling power head Qty. 1
Spindle taper BT50
Max.drilling diamter Φ60 mm
Max.thickness ≤180 mm
Tapping diameter M3-M20
Spindle speed 30~3000 r/min
Servo spindle motor power 11kW
Distance from the lower end of the spindle to the worktable 200-600mm

Lateral movement of power head

(X axis)

Max.horizontal stroke 1000 mm
Lateral movement speed 0~9 r/min
Servo motor power for lateral movement 10N/M
Gantry longitudinal movement (Y axis) Max. feed stroke 1000 mm
Feed moving speed 0~9 m/min
Feed servo motor power 15N/M
Vertical ram feed motion (Z axis) Max. stroke 400 mm
Moving speed 0~8 m/min
Servo motor power 1x15N/M (Brake)
Three-axis positioning accuracy X/Y/Z/A/B/C 0-0.02mm
Three-axis repeat positioning accuracy X/Y/Z/A/B/C 0-0.01mm
Machine weight / About 5T
Overall size LxWxH 3200x2200x2200 mm
