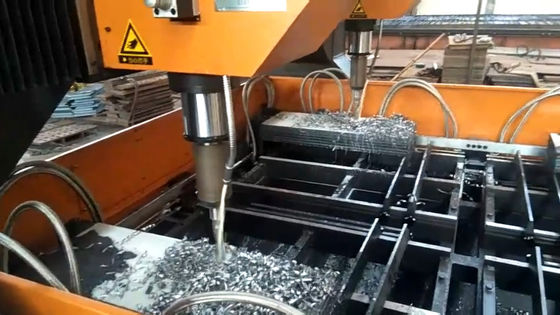

Movable Metal Flange Plate Drilling Machine CNC Double Spindle

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Movable Metal Flange Plate Drilling Machine CNC Double Spindle

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PZ3020/2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 30 days
Supply Ability: 200 sets/year
Detailed Product Description
Metal Plate Size: 3000x2000mm Max. Thickness: 100mm
Rotate Speed: 20-560r/min Flange Diameter: 2000mm
Max. Drilling Diameter: 50mm Main Spindle Power: 5.5 KW
High Light:

Movable Plate Drilling Machine

,

Double Spindle Plate Drilling Machine

,

560r/min Plate Drilling Machine

Gantry Movable Top Quality CNC Metal Flange Plate Drilling Machine Double Spindle



Applicable Industry:

It is used for drilling holes in steel plates. The workpiece to be processed can be steel structure buildings, bridges, connecting plates on iron towers, or large flanges, heat exchanger tube plates, etc. The CNC drilling machine can make the whole process of drilling work to achieve a complete automation degree with high precision and high efficiency. It is suitable for drilling and processing of connecting plates, anchor plates, end plates, templates, flanges, structural parts and other parts of steel structures, bridges, power communication towers, thermal power station boiler brackets and other industries.



Features:

1. The maximum drilling diameter of this machine is up to 50mm, and the holes on the connecting plate and the foundation plate can be drilled.

2. The maximum workpiece thickness is 100mm, and thinner plates can also be stacked and drilled. The workpiece is clamped by hydraulic clamps, which saves labor for operators and saves time when loading and unloading workpieces.

3. The largest workpiece can reach 3000×2000mm. If it is a small piece, it can be installed on the four corners of the worktable (Note: The tightening method is divided into hydraulic automatic tightening).

4. The screw, guide rail, hydraulic parts, electrical components, numerical control system, etc. configured by this machine are mostly foreign famous brand products. The reliability of the machine is comparable to that of imported equipment, and there are few failures.

5. The downward drilling stroke of the main shaft of this machine is up to 180mm, so the length of the drill bit is not limited. When the drill bit moves downward and does not touch the workpiece, it is a fast movement. Once it touches the workpiece, it will automatically change to the working speed, and after drilling through, it will automatically return quickly, so it saves time.

6. The equipment is equipped with an automatic lubrication system, which can effectively improve the service life of the equipment.

          7. The hydraulic station is equipped with an air cooling system.

Specifications:





Item Parameter
Workpiece size Width x length 3000x2000mm
Thickness Max.100
Diameter 2000mm
Spindle Quick-change connector Morse 4#
Drill diameter Max.Φ50mm
Speed-varying method Inverter stepless speed regulation
Rotate speed 20-560r/min
Stoke (Z axis) 180mm
Feeding Hydraulic cylinder drive
Workpiece Clamp Clamp thickness 15-100mm
Number of clamping cylinders 12
Clamp force 7.5kN
Clamp open Foot switch
Cooling liquid Method Forced loop
Capacity 300L
Hydraulic Clamp force 6MPa(60kgf/cm2)
Fuel tank capacity 90L
Motor Main spindle 5.5kW
Hydraulic pump 2.2kW
Cooling pump 0.45kW
X-axis servo system 2kW
Y-axis servo system 2x1kW
Machine size LxWxH 6490×3880×2750mm
CNC axis quantity 3
Positioning speed 10000mm/min
Machine size LxWxH 6490×3880×2750mm
