Dia 2000mm Metal Flange CNC Plate Drilling Machine Fast Speed

Dia 2000mm Metal Flange CNC Plate Drilling Machine Fast Speed
Dia 2000mm Metal Flange CNC Plate Drilling Machine Fast Speed Dia 2000mm Metal Flange CNC Plate Drilling Machine Fast Speed

Large Image :  Dia 2000mm Metal Flange CNC Plate Drilling Machine Fast Speed

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: PZ2020/2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: container
Delivery Time: 30 days
Supply Ability: 200 sets/year
Detailed Product Description
Metal Plate Size: 2000x2000mm Max. Thickness: 100mm
Rotate Speed: 20-560r/min Flange Diameter: 2000mm
Max. Drilling Diameter: 50mm Main Spindle Power: 5.5 KW
High Light:

2000mm Flange Dia Plate Drilling Machine


Fast Speed CNC Plate Drilling Machine


2000mm Flange CNC Plate Drilling Machine

Fast Speed CNC Metal Flange Plate Drilling Machine Factory Supply Model PZ2020/2


Applicable Industry:

It is used for drilling holes in steel plates. The workpiece to be processed can be steel structure buildings, bridges, connecting plates on iron towers, or large flanges, heat exchanger tube plates, etc. The CNC drilling machine can make the whole process of drilling work to achieve a complete automation degree with high precision and high efficiency. It is suitable for drilling and processing of connecting plates, anchor plates, end plates, templates, flanges, structural parts and other parts of steel structures, bridges, power communication towers, thermal power station boiler brackets and other industries.



1. The maximum drilling diameter of this machine is up to 50mm, and the holes on the connecting plate and the foundation plate can be drilled.

2. The maximum workpiece thickness is 100mm, and thinner plates can also be stacked and drilled. The workpiece is clamped by hydraulic clamps, which saves labor for operators and saves time when loading and unloading workpieces.

3. The largest workpiece can reach 3000×2000mm. If it is a small piece, it can be installed on the four corners of the worktable (Note: The tightening method is divided into hydraulic automatic tightening).


Equipment introduction:


Lateral skateboard and power head

The lateral sliding plate is installed on the two linear guide rails in front of the gantry, and the ball screw is driven by the AC servo motor to make lateral movement. The power head is installed vertically on the lateral slide. Follow the lateral slide to do lateral movement (Y 1 Y2 axis). The main shaft of the power head adopts hydraulic sensor control, which automatically performs the conversion of fast forward, work forward and fast backward, and does not need to manually set the length of the drill bit and the thickness of the workpiece to be processed. The main shaft gear reducer and the main motor are imported from Germany. A quick-change module with Morse's No. 4 taper hole is installed under the main shaft, and Morse's 3# and 2# reducer sleeves can be installed according to requirements, and drills with different diameters below Ф50mm can be installed. The rotation speed of the main shaft of the drilling machine is steplessly adjusted by the




Item Parameter
Workpiece size Width x length 2000x2000mm
Thickness Max.100
Diameter 2000mm
Spindle Quick-change connector Morse 4#
Drill diameter Max.Φ50mm
Speed-varying method Inverter stepless speed regulation
Rotate speed 20-560r/min
Stoke (Z axis) 180mm
Feeding Hydraulic cylinder drive
Workpiece Clamp Clamp thickness 15-100mm
Number of clamping cylinders 12
Clamp force 7.5kN
Clamp open Foot switch
Cooling liquid Method Forced loop
Capacity 300L
Hydraulic Clamp force 6MPa(60kgf/cm2)
Fuel tank capacity 90L
Motor Main spindle 5.5kW
Hydraulic pump 2.2kW
Cooling pump 0.45kW
X-axis servo system 2kW
Y-axis servo system 2x1kW
Machine size LxWxH 6490×3880×2750mm
CNC axis quantity 3
Positioning speed 10000mm/min
Machine size LxWxH 6490×3880×2750mm

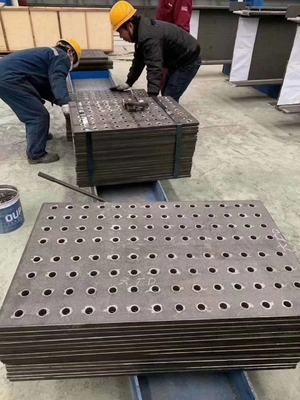

Dia 2000mm Metal Flange CNC Plate Drilling Machine Fast Speed 0

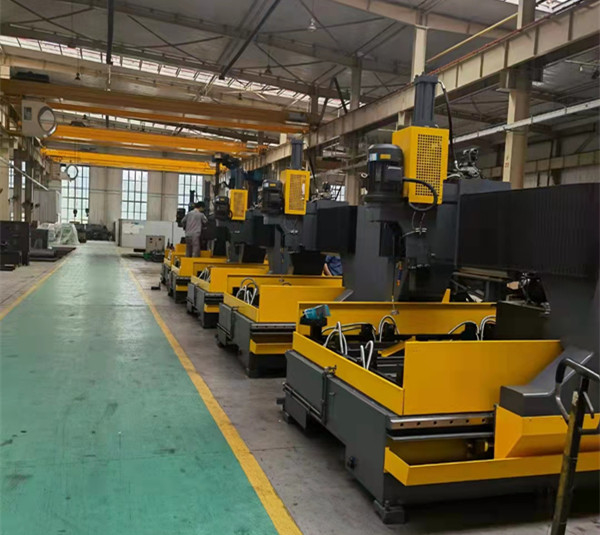

Dia 2000mm Metal Flange CNC Plate Drilling Machine Fast Speed 1
