| Metal Plate Size: | 2000x1600mm | Metal Plate Thickness: | 180mm |
|---|---|---|---|
| Spindle Taper: | BT50 | Max.tapping Diameter: | M30 Mm |
| Spindle Speed: | 30~3000 R/min | Max.drilling Diamter: | 70mm |
| High Light: | CNC Plate Drilling And Milling Machin,High Speed Drilling And Milling Machin,3000 R/Min Drilling And Milling Machin |
||

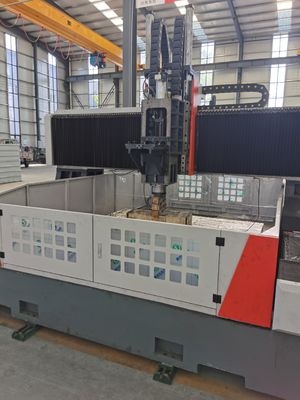

High Speed CNC Plate Drilling and Milling Machine PHD2016 Spindle speed upto 3000 r/min
Application:
Used for drilling, chamfering, tapping and milling of plate/structure parts.
It is mainly used for high-efficiency drilling processing of flanges, discs, rings, plates and other workpieces whose thickness is within the effective range. Drilling through holes and blind holes can be realized on single material parts and composite materials. The machining process of the machine tool is digitally controlled, and the operation is very convenient. It can realize automation, high precision, multiple varieties and mass production.
Machine structure:
The machine bed is cast, mainly composed of worktable, movable gantry, movable sliding saddle, drilling and milling power head, automatic lubrication device, protective device, circulating cooling device, digital control system, electrical system, etc. Rolling hard rail pair support and guidance, precision lead screw pair drive, the machine tool has high positioning accuracy and repeat positioning accuracy.
1.Workbench
The workbench is made of grey iron (HT250), which is finished by secondary tempering and vibration aging treatment, with good rigidity and no deformation. The work surface adopts casting structure.
2.Movable gantry:
The movable gantry is made of gray cast iron (HT250). The front side of the gantry is equipped with two ultra-high bearing capacity rolling linear guide pairs, a set of precision ball screws and a servo motor, so that the power head slide is used as the Y axis. When moving in the same direction, the drilling power head is installed on the power head slide plate. The gantry movement is realized by the rotation of the ball screw driven by the servo motor through the precision coupling.
3,Movable saddle:
The sliding saddle is a precision cast iron structure. The sliding saddle is equipped with two ultra-high load-bearing CNC hard-track sliding tables, a set of precision ball screw pairs and a high-precision planetary reducer connected to the servo motor to drive the drilling power The head moves in the Z-axis direction, which can realize the fast forward, work forward, fast reverse, stop and other actions of the power head. It has the functions of automatic chip breaking, chip removal and pause.
Specifications:
| Workpiece size | LxW | 2000x1600 mm |
| Gantry height | 600 mm | |
| Drilling power head | Qty. | 1 |
| Spindle taper | BT50 | |
| Max.drilling diamter | Φ70 mm | |
| Max.thickness | ≤180 mm | |
| Tapping diameter | M3-M25 mm | |
| Spindle speed | 30~3000 r/min | |
| Servo spindle motor power | 15kW | |
| Distance from the lower end of the spindle to the worktable | 200-600mm | |
|
Lateral movement of power head (X axis) |
Max.horizontal stroke | 1600 mm |
| Lateral movement speed | 0~9 r/min | |
| Servo motor power for lateral movement | 1x2.4 kW | |
| Gantry longitudinal movement (Y axis) | Max. feed stroke | 2000 mm |
| Feed moving speed | 0~9 m/min | |
| Feed servo motor power | 2x2.4 kW | |
| Vertical ram feed motion (Z axis) | Max. stroke | 600 mm |
| Moving speed | 0~8 m/min | |
| Servo motor power | 1x2.4 kW | |
| Three-axis positioning accuracy | X/Y/Z/A/B/C | 0-0.02mm |
| Three-axis repeat positioning accuracy | X/Y/Z/A/B/C | 0-0.01mm |
