Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction

Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction
Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction

Large Image :  Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: FLC5012
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: container
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Cuttable Material Type: Round Tube, Square Tube, Rectangular Tube, Channel Steel, Angle Steel Fiber Cutting Tube Wall Thickness: Max.25mm
Cut Material Length: 13000 Diagonal Section: 30-800mm
Positioning Accuracy: 0.05-0.1mm Cutting Accuracy: 0.2-0.6mm
High Light:

multifunction cnc fiber laser cutting machine

,

stable cnc fiber laser cutting machine

,

high efficiency cnc metal laser cutter

5 Aixs CNC Fiber Laser Tube Pipe Beam Cutting Machine High efficiency and multifunction





Product Description

This machine is used for cutting metal round and square tubes, channel steel,H beam,angle steel, etc. It adopts a 19-inch high-resolution LCD color display, which can display cutting graphics and cutting running tracks. Cutting programs can be edited manually. It adopts five-axis perfect cutting, which can cut round pipe, square pipe, channel steel and angle steel. In addition, it supports functions such as pause, forward, backward, and speed regulation during processing. It can store 200G files and can be used at will. It is driven by high-efficiency servo motor, with fast speed, high efficiency, high precision and stable operation. High-flexible shielded wire is used to truly resist high-frequency interference. It is suitable for various fiber optic models. The movable beam can save tailings. The front chuck is equipped with two sets of intelligent follow-up splicing devices to facilitate the For long material processing requirements, there is a set of intelligent follow-up material support systems in between, so as to avoid Buyer’s long material sagging and affecting the cutting accuracy.



Main technical parameters of the equipment

1. Specification of cutting steel pipe

Cuttable Material Type Round tube,Square tube,Rectangular tube,Channel steel,Angle steel
Fiber cutting tube wall thickness Max 25mm quality 20mm or less
cut material length 13000mm
Diagonal Section 30-800mm
Overall body length 14000mm
Overall length of the machine 16000mm
equipment weight 7000KG
positioning accuracy 0.05-0.1mm
Cutting accuracy 0.2-0.6mm



2. cutting speed

Max cutting speed 20m/min





Control system features:

1.Hardware board interpolation, stable and reliable, simple wiring

2.Support manual box operation, improve production efficiency

3.You can use the file to set the speed, or use the system to set the speed

4.File speed setting supports line speed and synthesis speed

5.The power clamp displays the maximum size of the processing graphics, which is intuitive and convenient

6.Graphics can be zoomed in and out

7.The limit can be used as the zero return switch, which is simple and convenient.

8.The starting position of processing is simple, no need to consider the pendulum axis

9.During processing, it can move forward and backward, and can be offset and returned

10.Parameter backup and parameter restoration.

11. Optional hole to start cutting, convenient and fast.



System performance parameters:



1. Control accuracy: up to ±0.05mm

2. Maximum running speed: 20000mm/min

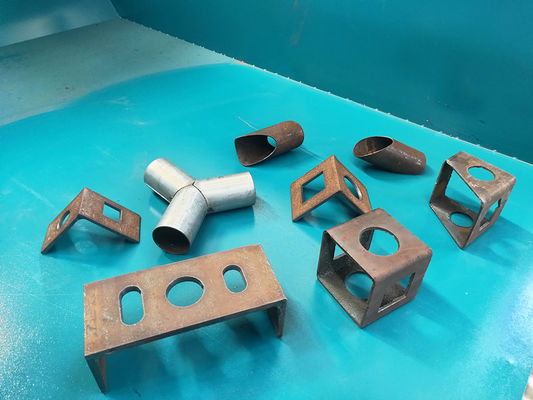

Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction 0



Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction 1Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction 2

Stable High Efficiency Cnc Fiber Laser Cutting Machine Multifunction 3
