200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013

200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013
200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013 200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013 200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013 200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013

Large Image :  200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: CPC5013
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets/year
Detailed Product Description
Plasma Source: Huayuan 200A Plasma Cutting Tube Thickness: Max. 35mm
Cutting Pipe Length: 14000mm Round Tube Load: 3500KGS
Plasma Cutting Speed: 1000-6000mm/min Control Number Axis: 8-axis
High Light:

200a cnc flame plasma cutting machine

,

pipe cnc flame plasma cutting machine

,

8 axis cnc pipe cutting machine

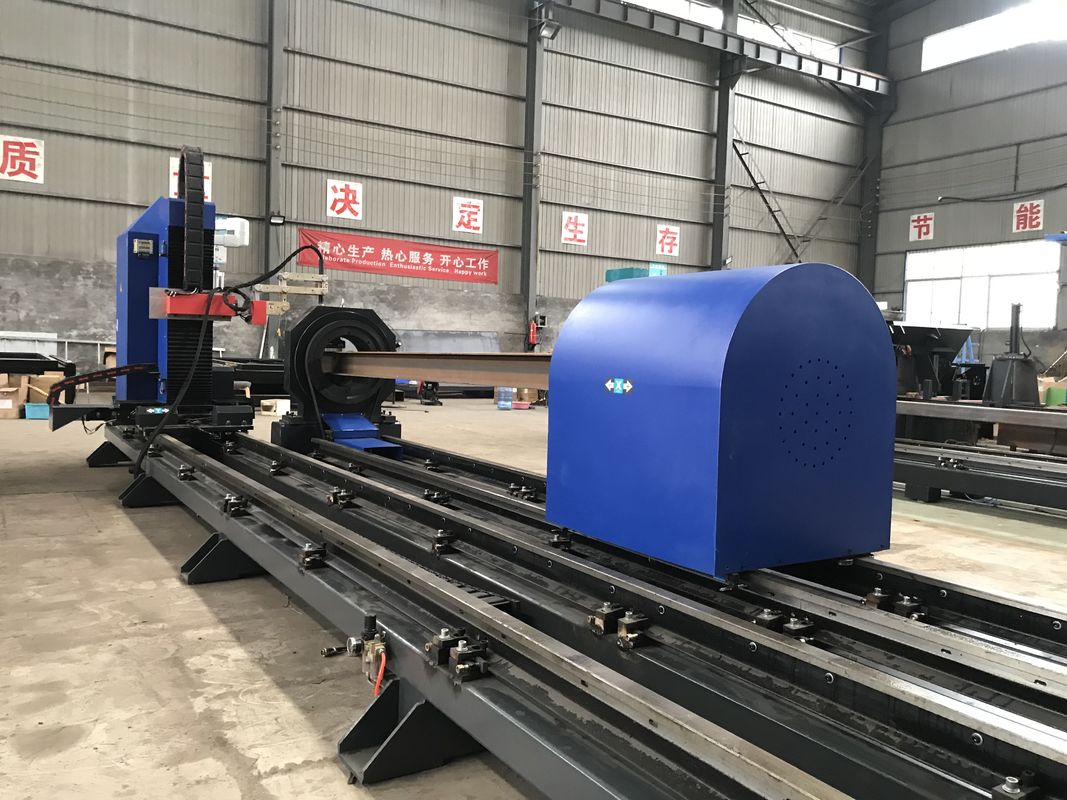

8 Axis CNC Tube Pipe H beam Angle Steel Plasma Cutting Machine Model CPC5013

Product description:
It is the latest high-efficiency and high-precision pipe automatic cutting equipment. It is mainly used for cutting various low carbon steel, stainless steel, copper, aluminum and other pipes. . It can cut the end surface of the round pipe, the intersection of the circular pipe and the plane, and the various round and round pipes, the surface of the round pipe and the spherical surface, the pipe and the curved surface, the H-shaped steel channel steel, the rectangular pipe and the square pipe. The model is beautiful in appearance, compact in structure, stable in operation and easy to operate. The cutting pipe diameter ranges from 50 to 320mm and the cutting pipe length ranges from 9m.
The mechanical part of the machine is mainly composed of a work table, a power chuck and a cutting head. The worktable and the power chuck adopt the overall design and mechanically complete machining, so that the longitudinal guide rail and the shaft of the power chuck are kept parallel, which greatly improves the working precision of the machine. Two parallel linear guide rails are mounted on the side of the table, and precision racks are mounted between the guide rails. The gears are driven by the drive system on the moving body to realize the longitudinal gear and the rack drive. The power chuck drives the chuck to rotate through the servo motor and the timing pulley, and the work piece is driven by the chuck to realize the forward and reverse rotation. The cutting head is controlled by a dual servo motor for axial and radial deflection. The linkage of these motion axes is controlled by the system to achieve the cutting of the intersecting lines of the tubes.

Environment for Equipment:
(1) Ambient temperature: -10-50 °C
(2) Ambient humidity: monthly average humidity ≤ 80%
(3) Power supply: control system power input 220V±10% 50HZ 380V±10% 50HZ
(4) Gas source: oxygen + acetylene or oxygen + propane (preheated oxygen ≥ 0.7Mpa, cutting oxygen ≥ 1Mpa, gas ≥ 0.05Mpa)
(5) Protective gas: air, oxygen, air pressure 8.3bar, flow rate 8 cubic meters / hour.
(6) Installation site: indoor installation, concrete foundation, requiring the ground to be level, the inclination is not more than 1/100

Main technical parameters of the equipment:
1. Cutting steel pipe specifications

Cutting the outer diameter of the tube

30-500mm (500mm*500mm*14000mm)



Plasma cutting tube thickness Max 35mm
Cutting pipe length 14000mm
Round tube load 3500KGS

  • Equipment movement axis and range of motion




Movement axis

Cutting machine shaft number selection

Activity range


A-axis pipe rotation

axis 360° free rotation


Y-axis torch moves horizontally along the axial direction of the pipe 430mm
B-axis torch along the axis of the pipe axis A=±60°
C-axis torch rotates along the radial plane of the pipe B=±45°
Z axis Torch vertical lifting axis Maximum stroke 300MM



3. Cutting machine steel pipe loading method
The round tube adopts 4-claw chuck type structure, multiple sets of long-axis roller frame, the active frame drives the maximum pipe weight of 3.5tons, and the minimum spacing of the roller frame roller: 400MM (end part), which can support the minimum straightness of 800MM long. Pipe of the pipe section.

4. Cutting speed


Plasma cutting speed 1000-6000mm/min
Movement speed 10-8000mm/min


5. The torch repeating positioning accuracy
≤ ± 0.03mm; bus positioning accuracy ≤ ± 0.03mm; groove positioning accuracy ± 0.05 °
6. Equipment power

No. Items of Parts Specification Supplier Quantity
1 Electrical control cabinet ZLQ-XGEC Manufacture 1
2 Control system EOE-01A Manufacture 1
3 programming software With the beveling function Shanghai FL 1
4 The servo driver and Motor 750W Japan Panasonic servo motor 6
6 Planetary Reducer 1:5 Japan shimpo 6
7 The brace of Rotary 250mm Manufacture 2
8 Adjustable chuck support 500mm Manufacture 3
9 All the head system Z and hold the torch Manufacture 1
10 Y axis 35kg rail 35 kg Manufacture 18
11 Plasma source 200A HUAYUAN 1


Control system features:
a. Industrial control CNC control, powerful, and scalable.
b. Hardware board interpolation, stable and reliable, simple wiring.
c. Support standard G code, FastPipe, FastFrame and other nesting software.
d. Support manual box operation to improve production efficiency.
e. Supports three operating modes of flame/plasma/demo, easy to switch
f. You can use the file to set the speed, or use the system to set the speed.
g. File speed setting supports line speed and composite speed
h. Automatically introduce pipe diameter, safe and reliable
i. Display the maximum size of the processing graphics, intuitive and convenient
j.Graphics can be zoomed in and out
k. It can be used as a zero return switch, which is simple and convenient.
l. The starting position of the machining is simple, no need to consider the pendulum axis.
m.Forward and backward in machining, offset back
n. Parameter backup and parameter restoration.
o.Optional hole to start cutting, convenient and fast.
p. Full manual touch screen setting for more convenient operation.

200A Pipe Cnc Flame Plasma Cutting Machine 8 Axis Model Cpc5013 0
