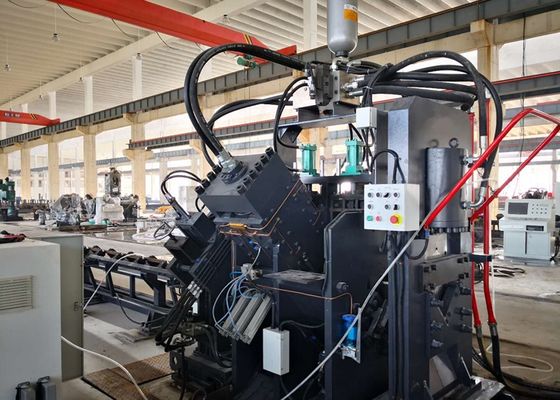

Angle Steel Tower Industry CNC Angle Line Machine For Punching Marking And Cutting

Large Image : Angle Steel Tower Industry CNC Angle Line Machine For Punching Marking And Cutting

Product Details:

Place of Origin:	China
Brand Name:	Auten
Model Number:	JNC1412

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	Negotiation
Packaging Details:	By container
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets/month

Contact Now

Detailed Product Description

Processing Angle Size:	40х40х3~125х125х10mm	Feeding Speed:	100~500 Mm/min
Punching Speed:	60-80 Holes/min	Drilling Hole Diameter:	Ф13.5~Ф40mm
Angle Processing Size:	L40x3~L125x10mm	Function:	Punching Hole And Cutting
Punching Force:	800kN	Min Angle Size:	40x40x3mm
Processing Angle Range:	80x80x7～250x250x32mm	Marking Characters:	14 Characters
Hole Diameter:	26mm	Diameter Of Drilling:	Ф13.5~Ф40mm
Size:	40х40х3~140х140х12mm
Highlight:	Industry CNC Angle Line Machine , Punching CNC Angle Line Machine , Marking CNC Angle Line Machine

Applicable Industry:

This machine serves as specialized equipment for angle steel punching, marking and shearing in the angle steel tower industry.

Product Composition:

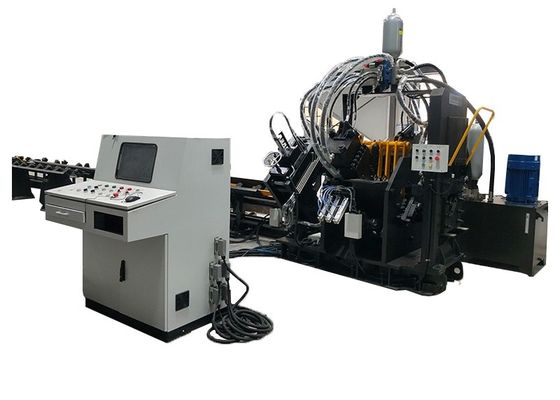

The machine is primarily composed of a transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, along with hydraulic, electrical and pneumatic systems, etc.

Angle Steel Tower Industry CNC Angle Line Machine For Punching Marking And Cutting 0

Specifications:

Functions	Punching, marking, cutting
Angle size(mm)	∟40×40×3～∟140×140×12
Max. length of blank (m)	12
Max. length of finished (m)	10
Max. Punching (dia. х thi.) (mm)	Φ26×12(Material:Q345 510N/mm²)
Punches per side	2
Punching force (kN)	630
Marking force (kN)	630
Cutting force (kN)	1800
Group of Marking letters	4
Number of letters per group	12
Dimension of letter (mm)	14×10×19
Cutting mode	Single blade cutting
CNC axes	3
Feeding speed of angle (m/min)	80
Cooling method of hydraulic system	Water cooling
Processing precision	Accordance with GB2694
Program function	Input by keyboard and USB interface
Dimension(mm)	28000×6500×2200
