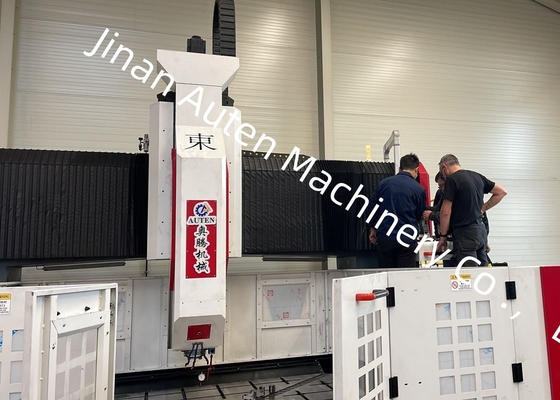

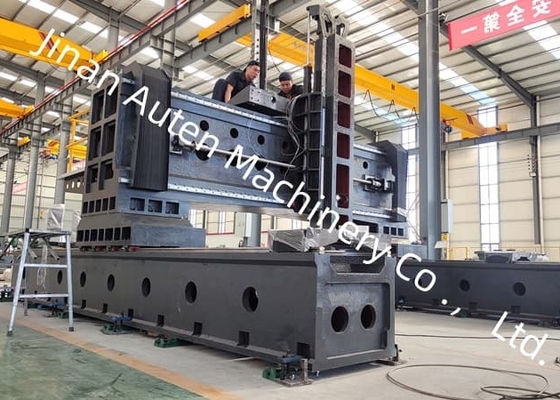

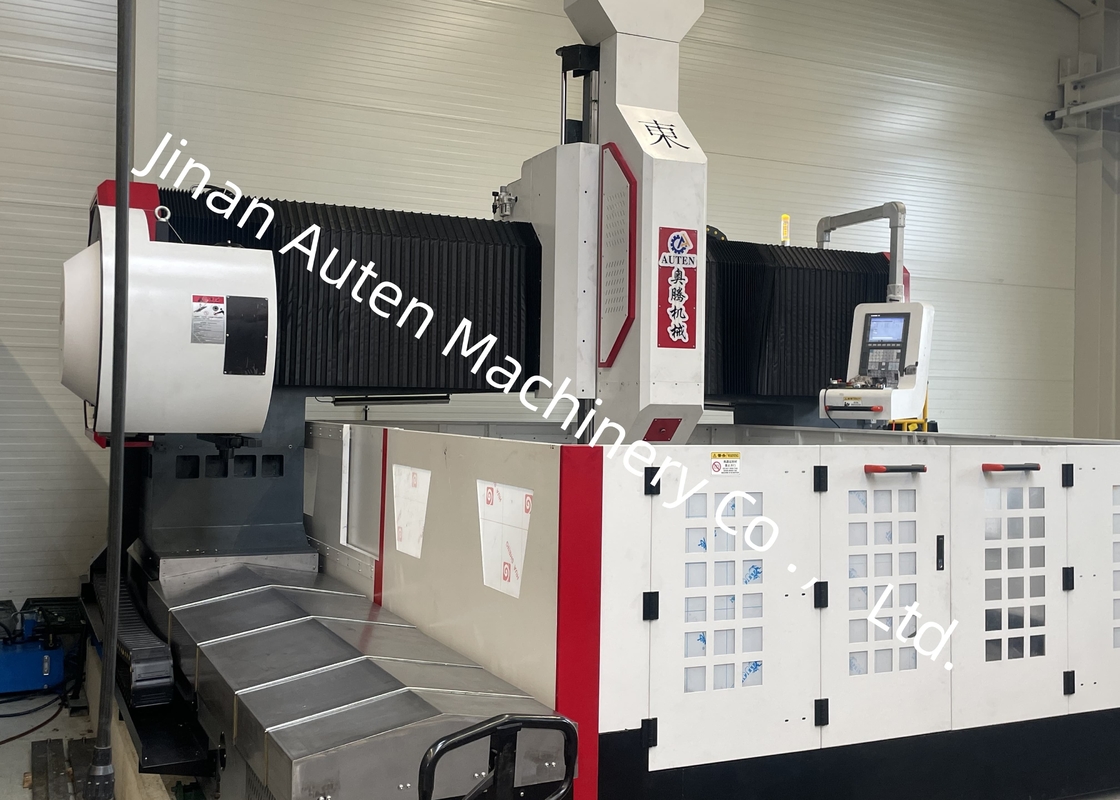

Model PHD3030 CNC Plate Drilling Machine 80mm Max Drilling Diameter Automated Production
Application:
Designed for drilling, chamfering, tapping, and milling of plates and structural components.
It is primarily utilized for high-efficiency drilling of workpieces such as flanges, discs, rings, and plates with thicknesses within the effective processing range. The machine enables drilling of both through holes and blind holes in single-material parts and composite materials. Its machining processes are digitally controlled, ensuring highly user-friendly operation, and it supports automated, high-precision production across multiple varieties and in mass quantities.
Automatic chip conveyor and circulating cooling device:
There is an automatic chip conveyor at the back of the workbench and a filter at the end. The automatic chip conveyor is a flat chain type. A cooling pump is installed on one side. The outlet is connected to the central water filter system with a hose. The coolant flows into the chip conveyor, the chip conveyor lift pump pumps the coolant into the central outlet filtering system, and the high-pressure cooling pump circulates the filtered coolant for cutting cooling. It is also equipped with a trolley for transporting scraps, which is very convenient for transporting iron scraps. This equipment is equipped with internal and external tool cooling systems. When high-speed drilling, the tool is cooled by internal water outlet, and external cooling is used for light milling. Automatic low water level alarm 8.1 When the coolant in the filter is at the middle level, the system will automatically connect to the motor to start, and the coolant in the chip conveyor will automatically flow into the filter. When it reaches a high level, the motor will automatically stop working. 8.2 When the coolant in the filter is at a low level, the system will automatically prompt the level gauge to alarm, the spindle will automatically retract the tool, and the machine will stop working.
Power-off memory function:
The operation is stopped due to sudden power failure, etc. Use this function to quickly and easily find the location of the last hole drilled before the power failure. Operators can quickly proceed to the next step, saving search time.
Laser interferometer:
The laser interferometer is used to calibrate, and accurately check and compensate the pitch error, backlash, positioning accuracy, repeat positioning accuracy, etc., to ensure the dynamic, static stability and processing accuracy of the machine. Ballbar inspection Each machine uses a British RENISHAW ballbar to calibrate the true circle accuracy and machine geometric accuracy. At the same time, a circular cutting experiment is carried out to ensure the machine's 3D machining accuracy and circle accuracy.
Specifications:
| Workpiece size |
LxW |
3000x3000 mm |
| Gantry height |
800 mm |
| Drilling power head |
Qty. |
1 |
| Spindle taper |
BT50 |
| Max.drilling diamter |
Φ80 mm |
| Max.thickness |
≤180 mm |
| Tapping diameter |
M3-M28 mm |
| Spindle speed |
30~3000 r/min |
| Servo spindle motor power |
30kW |
| Distance from the lower end of the spindle to the worktable |
200-800mm |
|
Lateral movement of power head
(X axis)
|
Max.horizontal stroke |
3000 mm |
| Lateral movement speed |
0~9 r/min |
| Servo motor power for lateral movement |
1x2.4 kW |
| Gantry longitudinal movement (Y axis) |
Max. feed stroke |
3000 mm |
| Feed moving speed |
0~9 m/min |
| Feed servo motor power |
2x2.4 kW |
| Vertical ram feed motion (Z axis) |
Max. stroke |
600 mm |
| Moving speed |
0~8 m/min |
| Servo motor power |
1x2.4 kW |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C |
0-0.02mm/1000mm |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C |
0-0.01mm/1000mm |
| Machine weight |
/ |
About 28T |
| Overall size |
LxWxH |
4800x4500x3200 mm
|
