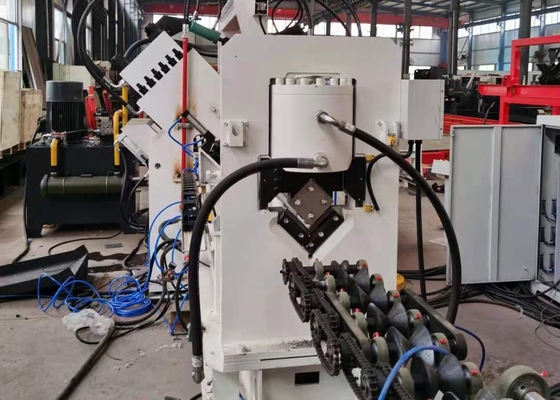

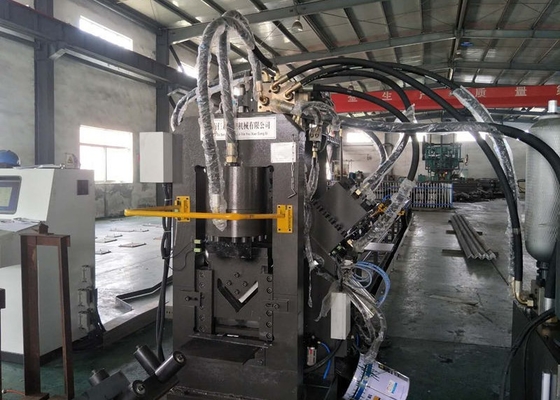

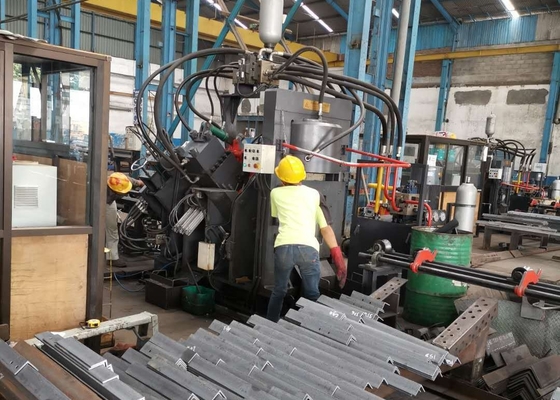

JNC1412 Model Punching Marking Cutting CNC Angle Line Machine 630/1000KN punching Force
Applicable Industry:
This machine is a specialized equipment engineered for angle steel punching, marking, and shearing operations within the angle steel tower sector.
Product Composition:
This machine is primarily composed of a transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical, and pneumatic systems, among other components.
Product Features:
1. Integrates CNC technology and servo motor feeding, ensuring high efficiency and consistent workpiece precision. Core hydraulic, pneumatic, and electrical components are all imported.
2. Each side is equipped with three sets of punches and dies, capable of accommodating three punches with varying diameters. Under PLC control, the three sets of molds can move synchronously to adjust the punching back mark.
3. Equipped with a computer featuring a Chinese/English interface for intuitive operation, with the ability to display workpiece diagrams. Programming is streamlined, and it can directly utilize program data generated by lofting software. When editing programs, only the workpiece dimensions, hole diameters, back mark, and workpiece quantity need to be input.
4. The CNC infeed carriage is driven by a servo motor, with a photoelectric encoder providing real-time feedback. Closed-loop control ensures high positioning accuracy.
5. Marking, punching, and shearing processes are fully automated; finished angle steel can be unloaded via a pneumatic turnover device, reducing operational intensity.
6. The control system comprises a host computer, CNC system, servo motor, PLC, and external detection sensors, among other components. Processing operations are initiated simply by inputting workpiece dimensions. Additionally, programs can be stored, selected, displayed, and transmitted based on workpiece numbers.
Parameter information
| Model |
JNC1010 |
JNC1412 |
JNC2020 |
| Angle size (mm) |
40*40*3~
100*100*10 |
40*40*3~
140*140*12 |
50*50*4~
200*200*20 |
|
Max. Punching
(Dia. * Thi.) (mm)
|
26*10 |
26*12 |
26*20 |
| Punching force (kN) |
630 |
630/1000 |
1000/1200 |
| Marking force (kN) |
630 |
630/900/1200 |
| Cutting force (kN) |
1000 |
900/1800 |
1540/4300 |
| Max. length of blank (m) |
12 |
12 |
14 |
| Max.length of finished (m) |
10 |
12 |
14 |
| Punches per side |
2 |
2 or 3 |
3 |
| Group of marking letters |
4 |
4 |
4 |
| Number of letters per group |
12 |
| Character size(mm) |
14*10*19 |
| CNC axes |
3 |
| Cutting mode |
Single Blade |
Double Blade or Single Blade |
| Feeding speed of angle(m/min) |
80 |
80 |
60 |
| Processing precision |
Accordance with GB2694 |
| Programming mode |
Input by keyboard,USB interface |
| Overall dimension (m) |
About 28*6.5*2.2 |
About 29*6.5*2.2 |
About 32*7*2.35 |
