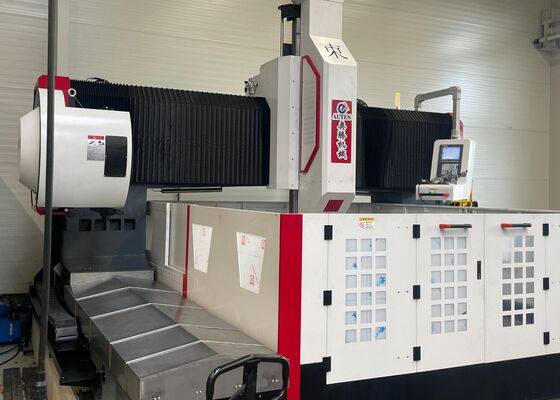

2500x2500mm Split CNC Gantry Drilling Milling Marking Machine 2x4.2kW Servo Motor Power

2500x2500mm Split CNC Gantry Drilling Milling Marking Machine 2x4.2kW Servo Motor Power

Application:

This CNC gantry drilling system is specifically engineered for drilling, chamfering, tapping, and milling operations on plate and structural components. It is primarily utilized for high-efficiency drilling of flanges, discs, rings, plates, and other workpieces within the specified thickness range. The system is capable of processing both through-holes and blind holes on single-material and composite materials. Featuring digital control, the machining process ensures seamless operation and ease of use. The equipment supports automation, delivers high precision, and is suitable for the production of a wide variety of components, including both small batches and mass production runs.

Specifications:

Equipment Structure:

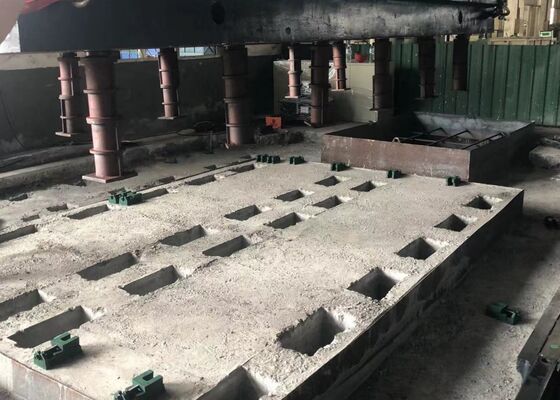

The machine base is constructed from cast material and comprises essential components, including the worktable, movable gantry, movable sliding saddle, drilling and milling power head, automatic lubrication system, safety devices, circulating cooling system, digital control system, and electrical system. It incorporates rolling hard rail pairs for support and guidance, coupled with precision lead screw pairs for drive. The machine is distinguished by its high positioning accuracy and exceptional repeatability in positioning.

Product Features

1. Drilling Power Head:
The drilling power head is equipped with a specialized servo spindle motor, which drives a precision spindle through a tooth-synchronous belt for deceleration and enhanced torque. The spindle can be replaced swiftly and effortlessly. The feed mechanism is powered by a servo motor and ball screw. Both the X and Y axes are capable of simultaneous motion, and a semi-closed loop control system is employed to enable both linear and circular interpolation functions. The spindle is designed with a BT50 taper, and is fitted with a high-speed rotary joint, facilitating the use of high-speed U-drill center coolant for efficient processing.

2. Transmission Device:
The transmission device utilizes high-precision guide rails and sliders imported from Taiwan, ensuring smooth operation and significantly enhancing load-bearing capacity.

The X-axis and Z-axis are each supported by two rolling linear guide rails, which serve as both guide and load-bearing rails for lateral and longitudinal movements. This configuration meets the technical demands of high-speed drilling. The X-axis and Z-axis transmission systems are driven by AC servo motors, which rotate the precision ball screws to achieve linear motion.

The Y-axis is equipped with two heavy-duty rolling linear guide rails on either side, with two square rail sliders mounted on each guide rail to form a robust Y-axis sliding track. This setup ensures the high rigidity and strength requirements of the gantry frame are met, while also offering advantages such as a low friction coefficient, high-speed movement, excellent vibration damping, and extended service life. The X-axis transmission employs dual-servo motor synchronous drive technology, with one servo motor on each side driving the ball screws in unison. This mechanism facilitates the movement of the gantry frame, enabling precise CNC machining.

3. Automatic Lubrication System and Protective Mechanisms:

This machine tool is equipped with a Taiwan-made volumetric partial pressure automatic lubrication system, designed to provide seamless lubrication to moving components such as guide rails, lead screws, racks, and others, ensuring comprehensive coverage and preventing wear. This system helps to extend the service life of the machine. Additionally, the X-axis and Y-axis are fitted with dust-proof shields, and a waterproof splash guard is installed around the worktable to further enhance protection.

.

This state-of-the-art CNC gantry machine is specifically designed for high-efficiency drilling and marking of plate and sheet metal parts. It has been meticulously engineered to enable accurate processing of plate-type workpieces and structural assemblies, making it particularly suitable for the machining of flanges, discs, ring-shaped components, flat plates, and similar parts. A critical operational consideration is that the thickness of the workpieces must comply with the machine's established effective machining parameters.

In steel structure fabrication facilities, this equipment performs high-precision drilling and milling operations on structural plates and connecting elements, providing a solid foundation for the reliable assembly of steel frameworks. Within the wind energy industry, it offers advanced, high-accuracy machining capabilities for wind turbine towers and flanges—ensuring these components are engineered to withstand challenging environmental conditions, including strong winds and temperature fluctuations. For bridge construction projects, the equipment processes bridge girders and support brackets, facilitating the creation of stable, durable connections designed to endure dynamic loads throughout the bridge’s extended lifespan.
