JNC1010 Model High Speed CNC Punching Marking And Cutting Machine For Angles Use

JNC1010 Model High Speed CNC Punching Marking And Cutting Machine For Angles Use

Product Introduction:

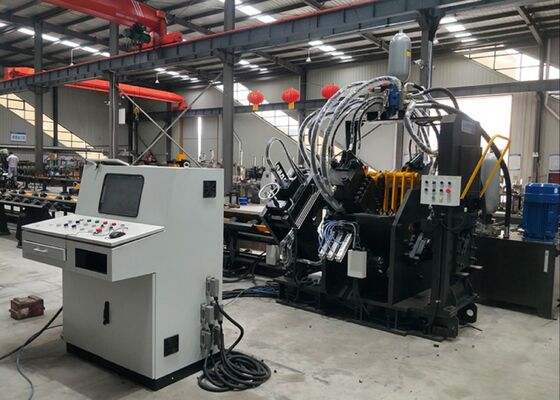

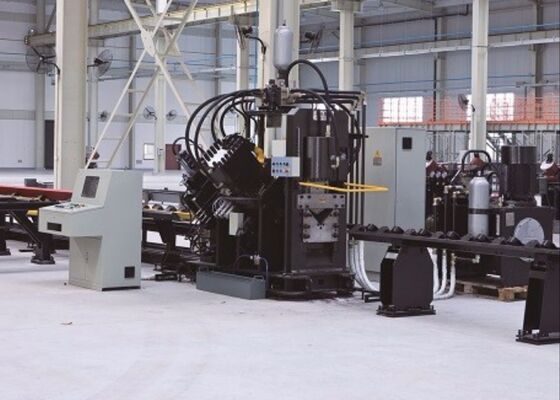

JNC series high speed cnc angle punching, marking and cutting production line is mainly composed of punching unit, marking unit, cutting unit, transverse conveyor, rotating conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system and so on. This production line is mainly used for the automatic processing of angle steel in tower industry. The processing process is numerically-controlled and the operation is very convenient. It can realize the automatic, high-precision, multi-varieties and mass production.

Product parameters:

Product Features:

1. The cnc angle iron punching machine are three or two sets of punching unit, which can be installed with three kinds of punches with different diameters. The three sets of punching dies are moved by numerical control to change the stadia. It can punch not only round holes but also oval holes. Its fast feeding and punching speeds improve production efficiency. For a 50×50×4mm angle steel, the output is 9-10 tons every eight hours.

2. The cnc angle punching machine marking unit is closed with good rigidity. The marking unit has four sets of cassettes, which is chosen by programming and the typing stadia can be set at will. In addition, can choose the disc typing method. The disc typing has 10 rows and automatically selects characters without manual intervention, which greatly improves typing efficiency.

3. The cnc angle bar cutting machine cutting unit adopts single blade shearing which is popular with large shearing force. There is no waste in each cutting and the cutting surface is neat and smooth. The blade box has an open door design, which makes blade changing quick and safe.

4. The horizontal material table transfers the angle bar to the rotating material rack, which is driven by motor and reducer to place the angle bar steadily on the feeding conveyor.

5. The workpiece is held and fed by CNC feeding carriage with high positioning accuracy. CNC feeding carriage is driven by servo motor with photoelectric encoder feedback, closed-loop control.

6. The cnc angle steel metal punching marking machine's hydraulic system provides power for punching, typing, and shearing. A high-speed hydraulic station with an accumulator is used, and the hydraulic lines utilize ferrule-type connections, which are leak-proof and easy to replace and maintain. The main hydraulic valve blocks are all Atos brand, ensuring a stable and efficient hydraulic system.

7. The cooling system of the hydraulic station includes water cooling, air cooling or oil chiller. Customers can choose the cooling method according to actual conditions.

8. The control system is mainly composed of upper computer, PLC, servo motor, external detection switch etc. The operator only needs to input processing requirements, the processing program can be automatically generated, it can also read DXF, NC and other processing files generated by lofting software. The man-machine interface display of the upper computer software is intuitive, and the operation is simple. lt can realize the function of work piece graph display, large amount of data storage, location data display, fault alarm and so on.

These specimens, which reflect standard specifications and common processing scenarios within the angle steel tower industry, enable users to directly assess the equipment's processing quality, accuracy, and craftsmanship. They serve as a tangible benchmark for evaluating the equipment’s performance and its alignment with specific production requirements, thus facilitating informed, data-driven decision-making for potential applications.

In the construction of ultra-high voltage (UHV) transmission lines—where towers are required to withstand severe weather conditions and significant loads—this equipment is crucial for processing the angle steel components that form the core framework of the towers. It reliably carries out drilling and stamping operations on the angle steel used for tower bodies, cross-arms, and other key structural parts, ensuring precise dimensions and secure connections that maintain the overall stability of the towers.
