50-330mm Range Of Back Mark Cnc Angle Drilling Machine Air Atomization Dry Internal Cooling

50-330mm Range Of Back Mark Cnc Angle Drilling Machine Air Atomization Dry Internal Cooling

Product Introduction:

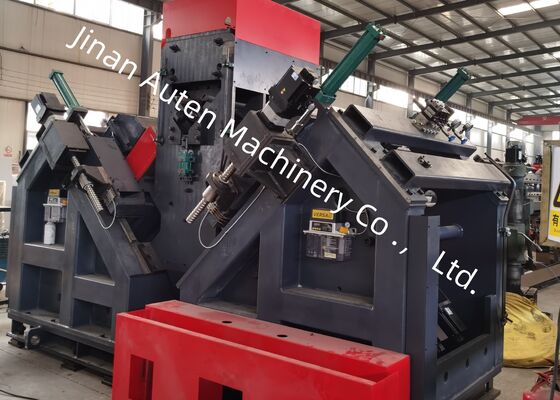

The CNC angle drilling and marking machine line is expertly designed for the drilling and marking of large, high-strength angle steel used in transmission line towers. This system ensures precise drilling of all holes in the angle steel, delivering outstanding hole quality and positional accuracy. Furthermore, it enhances production efficiency while providing a high level of automation.

Main Parameters:

Product Features:

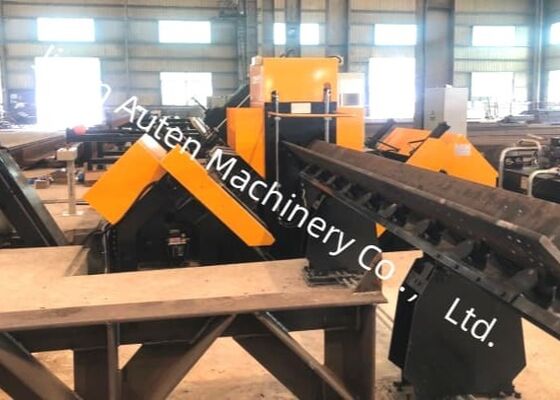

1. The production line is equipped with an automated loading system, comprising a horizontal feeding channel, a rotating loading rack, and an automatic unloading system, along with an advanced feeding mechanism. All drilling and steel stamping operations on the angle steel are seamlessly integrated into a continuous and efficient workflow. The entire process is fully automated, eliminating the need for manual intervention and significantly reducing labor requirements for operators.

2. The drilling spindle is outfitted with a Taiwan BT40 precision spindle (incorporating internal coolant), ensuring superior drilling efficiency and accuracy. The drilling unit is equipped with six CNC drilling heads, with three positioned on each side of the angle steel. The heads on both sides are capable of simultaneously drilling holes with identical diameters and at consistent intervals from the upper ends of the angle steel flanges.

3. The software features a bilingual Chinese/English interface, offering intuitive navigation and a clear display of workpiece drawings.

4. The programming process is straightforward and efficient; users are required to input the workpiece dimensions, hole diameter, spacing, and quantity to automatically generate the program. Furthermore, CAD/CAM lofting software can be utilized for seamless file conversion. The system is fully compatible with NC1 files generated by TEKLA software.

5. Critical hydraulic, pneumatic, and electrical components are procured from well-established, high-performance brands to guarantee outstanding reliability and an extended service life.

6. The system is equipped with an integrated self-diagnostic function, enabling efficient fault identification and troubleshooting.

7. The shearing unit is offered as an optional enhancement, featuring a dual-blade cutting mechanism designed to optimize performance.

These specimens exemplify a variety of standard specifications and hole configurations of angle steel typically used in the construction of transmission line towers. They serve as a visual reference for prospective users or inspectors to assess the operational performance of the equipment, offering clear and measurable benchmarks to determine whether the equipment complies with the required manufacturing standards for transmission line tower production.

In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers endure extreme weather conditions and substantial loads, this equipment plays a crucial role in processing the angle steel components that form the core load-bearing structures of the towers. It effectively performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other essential structural elements, ensuring precise dimensional accuracy and dependable connection performance. As a result, it significantly contributes to the long-term structural integrity and stability of the transmission towers throughout their entire service life.
