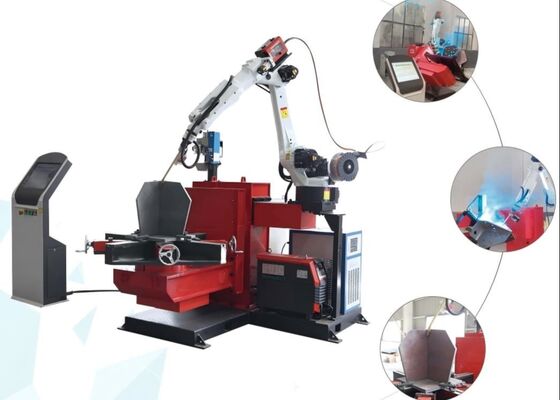

Product Introduction:

This equipment is primarily designed for welding the base of transmission towers. In addition to the reinforcement plates, it is capable of completing the welding of 11 primary seams on the main body, one seam for cleaning purposes, as well as the welding of the sealing head corners.

Main Parameters:

Product Features:

1. Repeatability: The system offers repeatability of no less than ±0.05 mm.

2. Path Accuracy: The track accuracy does not exceed ±0.1 mm.

3. Structural Design: Arc welding robot featuring a highly stable and reliable mechanical structure, engineered for long-term, continuous operation.

4. Working Envelope: Accommodates workpieces up to 1500 mm in size, covering the full range of welding requirements.

5. Operating Method: The workpiece is secured on a positioner fixture, while the welding head is mounted on a dedicated robot base. During welding, the positioner and robot operate synchronously. Utilizing robot vision scanning in combination with a laser seam tracker, the welding trajectory is automatically generated without programming. This system is capable of welding complex and irregular workpieces, offering ease of operation and a minimal learning curve.

1. Welding System: The machine is equipped with a high-performance Aotai arc welding power supply, capable of supporting transverse, longitudinal, and vertical welding processes, including MIG, MAG, and TIG welding. The welding current and voltage ranges are fully compatible with the processing requirements of various workpieces, providing excellent arc stability and superior weld formation. Parameters can be precisely adjusted to suit different welding materials and workpiece thicknesses.

Welding Torch and Accessories: Fitted with a premium Apollo welding torch and associated accessories, including wire feed mechanisms and contact tips, ensuring consistent welding quality and operational efficiency.

2. Intelligent Recognition and Conversion: The system incorporates intelligent recognition and conversion functionality, automatically identifying key welding features—such as weld location and type—from drawings and programs. These features are rapidly converted into robot-executable welding instructions, typically within 30 seconds. Data can be efficiently imported via network connections, USB, or other communication interfaces.

3. Control System:
① Control Method: Utilizes an advanced digital control system, offering precise trajectory management and adjustable welding parameters.

② Programming Method: Supports visual scanning-based programming. The interface is intuitive and user-friendly, allowing rapid program creation and precise control of complex welding operations.

③ Communication Interface: Provides communication ports for integration with other equipment and production line control systems, facilitating seamless automation and coordinated operation.

4. Positioner Mounting Structure: The positioner mounting framework is engineered with sufficient strength and stability to withstand the forces and vibrations generated by both the robot and the workpiece during welding, ensuring consistent robot operation and welding precision. The design of the mounting structure also facilitates installation, commissioning, and maintenance of the robot without compromising its working range or operational performance.

5. Safety System: Protection Rating: Rated no less than IP54, providing reliable resistance against dust, moisture, and other environmental factors commonly encountered in industrial settings.

6. Robot Data Import Method: The system supports multiple import methods, including CAD drawing import, visual scanning import, and no-programming import of welding information and requirements. A variety of program and drawing import options are available, making the system straightforward, user-friendly, and highly convenient to operate.

7. Workpiece Welding System Description: The arc welding robot utilizes a 6-axis industrial robot with full degrees of freedom, allowing the welding torch to reach the workpiece in a wide range of complex orientations. This enables adaptation to diverse welding positions and intricate weld geometries, including spatial curve welds, ensuring flexibility and precision in welding operations.

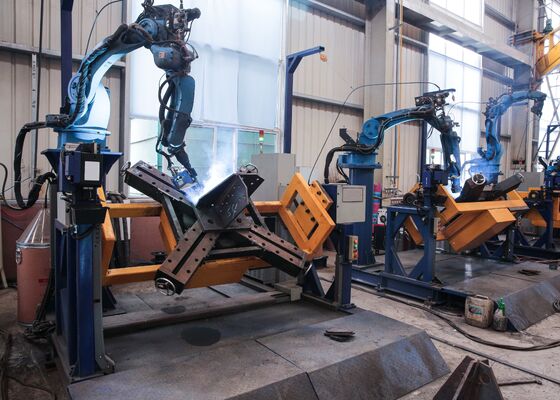

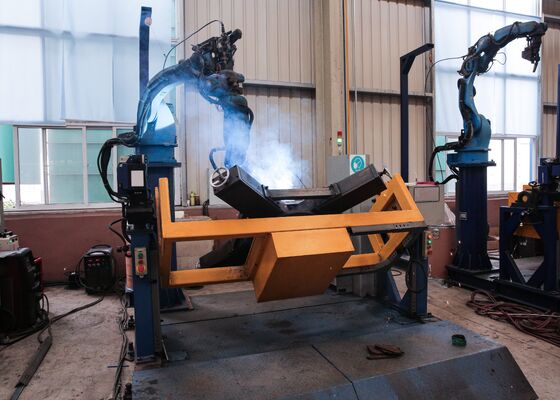

This equipment is specifically designed for the welding of transmission tower bases, playing a critical role in ensuring the structural integrity of the tower’s foundation. Beyond the welding of stiffening plates, the system is capable of performing all 11 primary weld seams of the main structure, as well as the single root pass weld, ensuring complete and consistent penetration. Additionally, it efficiently executes the welding of end caps and corner joints, providing uniform and high-quality welds across all critical connection points. By automating these essential welding operations, the equipment guarantees precise alignment, consistent weld quality, and superior structural strength, making it ideally suited for the fabrication of tower base samples, as illustrated in the accompanying images.
