Product Introduction:

This equipment is specifically developed for the automated welding of transmission tower base components. In addition to reinforcement plate welding, the system is capable of completing the 11 major weld seams of the tower base structure, dedicated root-pass cleaning welds, and sealing cap corner joint welding operations. By integrating intelligent robotic control technology with advanced welding processes, the equipment achieves superior welding precision, uniform weld quality, and enhanced production efficiency, providing an efficient and reliable manufacturing solution for modern transmission tower fabrication.

Main Parameters:

Product Features:

1. Repeatability: The system provides a positioning repeatability of no less than ±0.05 mm.

2. Path Accuracy: The trajectory accuracy remains within ±0.1 mm.

3. Structural Design: The arc welding robot features a highly stable and robust mechanical structure, designed for prolonged, continuous industrial operation.

4. Working Envelope: Supports workpieces up to 1500 mm in dimension, fulfilling the complete spectrum of welding requirements.

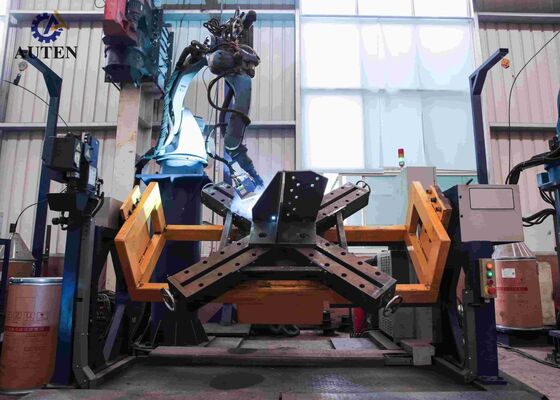

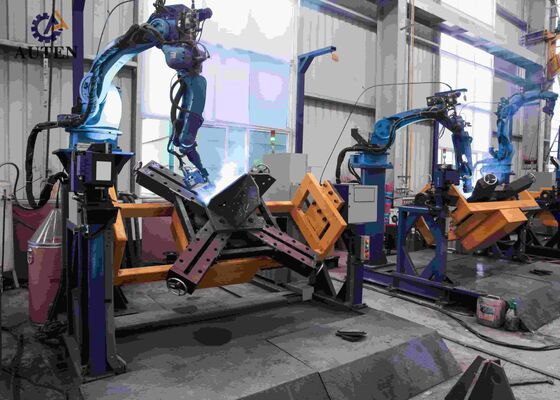

5. Operating Method: Workpieces are mounted on a positioner fixture, while the welding head is installed on a dedicated robotic platform. During operation, the robot and positioner function in coordinated synchronization. By employing robotic vision scanning combined with a laser seam-tracking system, welding paths are generated automatically without programming. This configuration enables the welding of complex and irregular components with ease of operation and minimal operator training.

1. Welding System
The equipment is equipped with a high-performance AOTAI arc welding power source, supporting multiple welding processes, including MIG, MAG, and TIG, to meet the requirements of transverse, longitudinal, and vertical welding applications. Welding current and voltage parameters can be continuously adjusted according to different workpiece structures, material specifications, and thickness conditions, ensuring stable arc performance, excellent weld appearance, and consistent welding quality.

The system is fitted with a high-quality Apollo welding torch and complete auxiliary welding components, including an automatic wire feeding mechanism, contact tips, and related accessories. This configuration ensures smooth wire delivery, reliable welding operation, and long-term equipment durability under continuous production conditions.

2. Intelligent Recognition & Automatic Program Conversion
The system integrates advanced intelligent recognition and data processing technology, enabling automatic identification of critical welding information, including weld positions, seam categories, and joint structures, from engineering drawings or digital manufacturing data. The extracted information is automatically converted into executable robotic welding programs, generally within approximately 30 seconds. Welding programs can be transferred through Ethernet communication, USB interfaces, and other standard data transmission methods, allowing rapid production preparation and efficient workflow management.

3. Control System
① Digital Control Platform:
The equipment adopts an advanced digital control architecture that provides precise robotic trajectory management and flexible welding parameter adjustment. This ensures stable, repeatable, and high-quality welding performance throughout continuous production operations.
② Programming Method:
The system supports vision-assisted programming through an intuitive Human–Machine Interface (HMI), enabling operators to quickly create welding programs while maintaining accurate control over complex welding paths, joint structures, and process parameters.
③ Communication Interface:
Multiple industrial communication interfaces are provided to support seamless connection with automated production systems, peripheral equipment, and factory-level control platforms. This enables efficient integration into intelligent manufacturing environments and coordinated production management systems.

4. Positioner Support Structure
The robot positioner adopts a high-strength, high-rigidity support structure engineered to withstand dynamic loads generated by robotic movement and heavy workpiece positioning during welding operations. Its robust construction ensures excellent positioning stability, superior welding accuracy, and reliable long-term operation. The optimized installation design simplifies equipment commissioning, maintenance, and servicing while maximizing the robot’s working range and overall operational efficiency.

5. Safety Protection System
The complete system is designed with an IP54 protection rating or higher, providing effective protection against dust, moisture, and other environmental influences commonly present in industrial manufacturing facilities. This ensures safe operation, reliable performance, and extended service life in demanding production environments.

6. Robot Programming & Data Import
The robotic welding system supports multiple programming methods and data input solutions, including direct CAD file import, machine vision-assisted scanning, and parameter-based programming without traditional manual teaching. Compatible with various engineering drawing and program formats, the system provides flexible operation, simplified programming procedures, and efficient preparation for automated welding production.

7. Robotic Welding System
The equipment integrates a 6-axis industrial welding robot featuring a wide range of motion and multi-directional flexibility, allowing the welding torch to approach complex workpieces from different angles. This advanced configuration supports various welding positions and complicated joint geometries, including three-dimensional curved weld seams. With excellent precision, repeatability, adaptability, and production efficiency, the robotic welding system delivers reliable performance for high-demand transmission tower manufacturing applications.

This automated robotic welding system is specifically developed for manufacturing transmission tower base assemblies, where it performs a crucial role in ensuring the structural integrity and reliability of tower foundations. In addition to welding reinforcement plates, the equipment automatically completes all 11 primary structural weld seams, the dedicated root-cleaning weld, and the welding of sealing caps and corner joints. Throughout the welding cycle, the system maintains precise workpiece positioning, consistent weld penetration, and uniform weld bead formation across every critical connection. By automating these essential welding operations, the equipment significantly improves welding consistency, production efficiency, and structural strength, making it an ideal solution for high-quality transmission tower base fabrication and large-scale industrial production.
