2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

Large Image : 2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets/year

Contact Now

Detailed Product Description

Arm Span:	2010mm	Repeatability:	±0.07mm
Load Capacity:	12KG	Near Field Of View:	461×255mm@300mm
Visual Accuracy:	≤0.5mm	Degrees Of Freedom:	7 Axis
Light Resistance:	180000Lux	Power Supply:	Three-phase Five-wire System, 3×380V±10%/50HZ

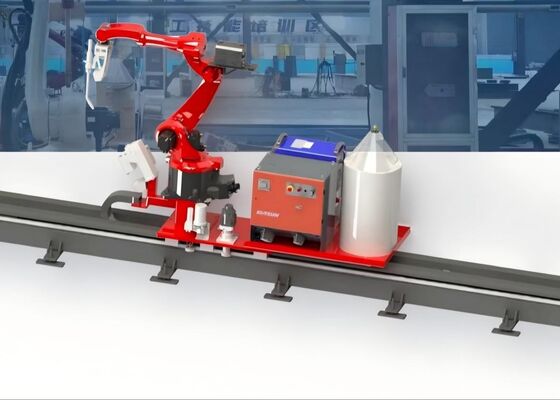

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

Product Parameters:

Category	Content	Main Technical Parameters		Remark
Robot performance	Arm span	2010mm
	Repeatability	±0.07mm
	Load capacity	12kg
Visual performance	Near field of view	461×255mm@300mm
	Far field of view	1150×660mm@800mm
	Z-axis single-point repeatability	0.015mm@300mm0.1mm@800mm
	Visual accuracy	≤0.5mm
	Full frame acquisition time	0.2-0.8s(Full frame rate Max:6FPS)
	Light resistance	180000Lux
Overall parameters	Power supply	Three-phase five-wire system, 3×380V±10%/50HZ
	Degrees of freedom	7-axis
	Number of robots configured	Single unit	Dual unit	Depends on the design
	Total power consumption	35kw	75kw
	Floor area	(4m + track length) × (3 + rail spacing) × 3.5m

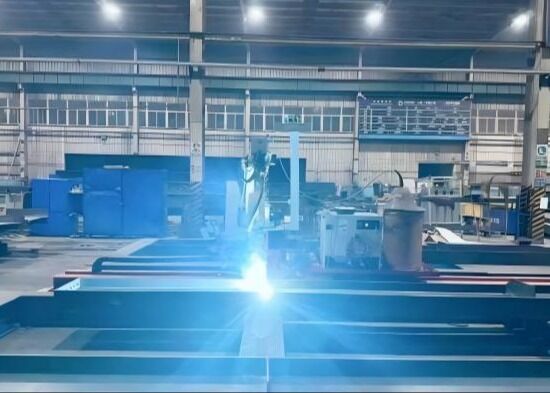

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

The floor rail system is the foundation of a teach-free welding robot, providing it with flexible movement space and expanding its working range. It is suitable for workpieces with a width ≤ 1.4M and a height ≤ 500mm, such as crane beams, H-shaped steel columns, and roof beams.

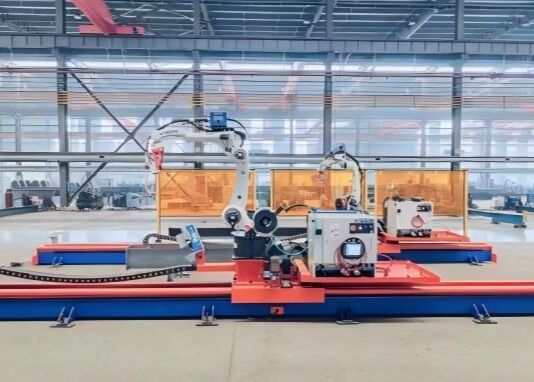

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

The floor rail uses a high-precision guide rail and drive system to ensure the robot's stability and positioning accuracy during movement. With the help of the floor rail, the robot can quickly switch between different welding positions to complete the welding of longer workpieces, improving production efficiency.

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
