Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

Large Image : Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets/year

Contact Now

Detailed Product Description

Arm Span:	2010mm	Repeatability:	±0.07mm
Load Capacity:	12KG	Near Field Of View:	461×255mm@300mm
Visual Accuracy:	≤0.5mm	Degrees Of Freedom:	7 Axis
Light Resistance:	180000Lux	Power Supply:	Three-phase Five-wire System, 3×380V±10%/50HZ

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

Product Parameters:

Category	Content	Main Technical Parameters				Remark
Robot performance	Arm span	2010mm				—
	Repeatability	±0.07mm				—
	Load capacity	12kg				—
Visual performance	Near field of view	461×255mm@300mm				—
	Far field of view	1150×660mm@800mm				—
	Z-axis single-point repeatability	0.015mm@300mm0.1mm@800mm				—
	Visual accuracy	≤0.5mm				—
	Full frame acquisition time	0.2-0.8s(Full frame rate Max:6FPS)				—
	Light resistance	180000Lux				—
Overall parameters	Power supply	Three-phase five-wire system 3×380v±10%/50HZ				—
	Degrees of freedom	Adapt to workpiece conditions				—
	Number of robots configured	single unit	single unit	two units	Four units	Depends on the design
	Total power consumption	34kw	37kw	68kw	136kw	Corresponding to different configuration quantities
	Floor area	(4m + track length) × (3 + rail spacing) × 3.5m				—

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

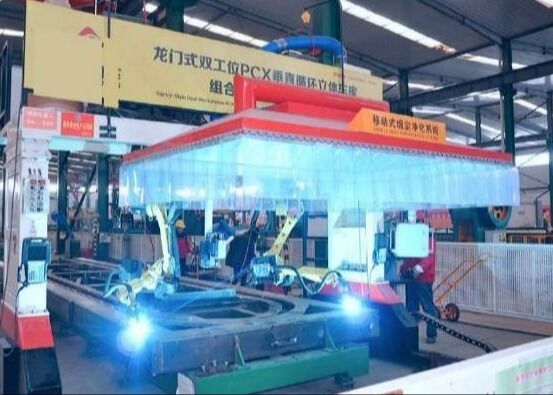

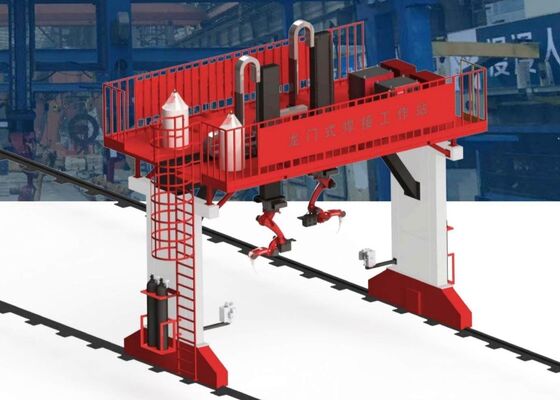

This gantry-type welding robot is installed upside down, allowing multiple units to work collaboratively via the gantry frame beam.

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

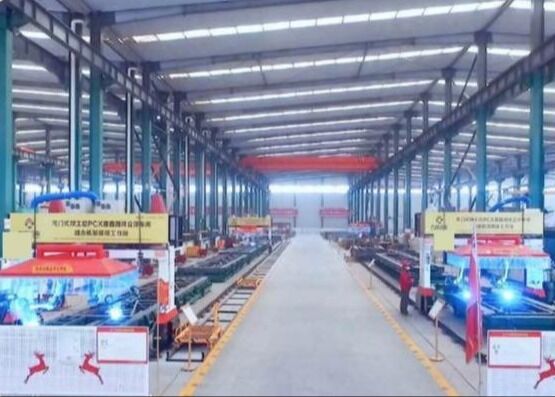

It supports multi-axis linkage (X/Y/Z) and external extension axis configurations, making it suitable for multi-angle welding of large workpieces such as ship assembly components. It can operate as a single machine, in pairs, or in groups of four, significantly improving efficiency. Utilizing a servo-driven backlash-free reducer and a programming-free system, it automatically plans the welding path and tracks the weld seam, ensuring precise welding trajectory.
