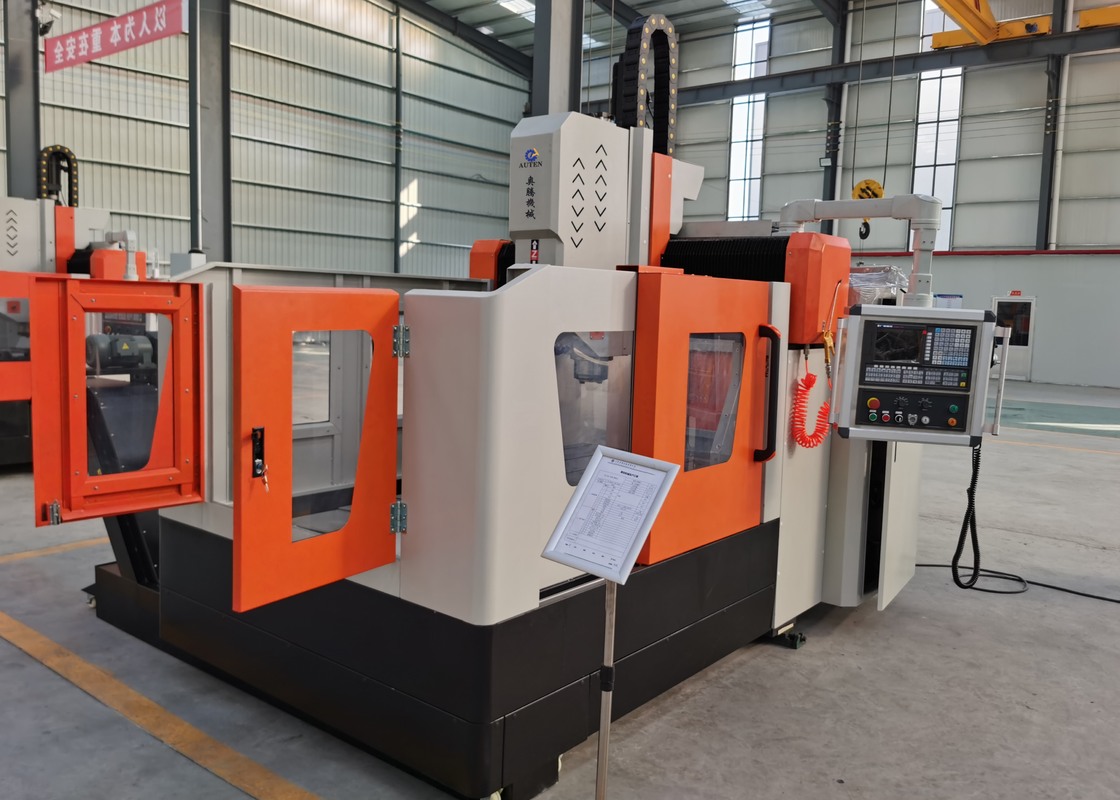

High-Rigidity High Speed CNC Plate Drilling And Milling Machine With Servo Control
Product Introduction:
The machine is specially developed for high-precision machining of tube sheets and flange components, supporting drilling operations for hole diameters up to φ80 mm. It integrates multiple machining functions, including drilling, reaming, boring, tapping, chamfering, and milling. The equipment is compatible with both carbide tools and conventional drill bits, providing flexible processing solutions for various material requirements. Featuring an intuitive CNC control system, the machine offers convenient operation, efficient programming, and excellent machining accuracy, making it suitable for high-precision industrial manufacturing applications.
Product configuration:
| Model |
PHD1010 |
| Workpiece size |
LxW (mm) |
1000x1000 |
| T-slot width of Workbench (mm) |
28 |
| Drilling power head |
Qty. |
1 |
| Spindle taper |
BT40 |
| Max. drilling diameter (mm) |
Φ50 |
| Max. thickness (mm) |
≤180 |
| Tapping diameter |
M3-M20 |
| Spindle speed (r/min) |
30~3000 |
| Servo spindle motor power (kW) |
11 |
| Lateral movement of power head (X axis) |
Max. horizontal stroke (mm) |
1000 |
| Lateral movement speed (r/min) |
0~8 |
| Servo motor power for lateral movement (kW) |
2.4 |
| Gantry longitudinal movement (Y axis) |
Max. feed stroke (mm) |
1000 |
| Feed moving speed (m/min) |
0~8 |
| Feed servo motor power (kW) |
2.4 |
| Vertical ram feed motion (Z axis) |
Max. stroke (mm) |
400 |
| Moving speed (m/min) |
0~8 |
| Servo motor power (kW) |
2.4 |
| Three-axis positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.02/1000 |
| Three-axis repeat positioning accuracy |
X/Y/Z/A/B/C (mm) |
±0.01/1000 |
| Electrical system |
CNC system |
FAGOR/ KND/ GSK |
| Tool changer |
Disc type (Optional) |
24 tool positions |
| Overall size |
LxWxH (m) |
3.2x2.2x2.2 |
Product Features
1. The machine bed and crossbeam adopt a heavy-duty welded steel structure with advanced aging and stress-relief heat treatment to improve structural stability and long-term machining accuracy. The worktable, transverse slide table, and ram are manufactured from high-quality cast iron, providing excellent rigidity, vibration resistance, and operational durability.
2. The X-axis adopts a dual servo motor drive configuration on both sides of the gantry, ensuring synchronized movement, high positioning accuracy, and excellent parallelism. This advanced drive structure effectively maintains superior perpendicularity and precision between the X- and Y-axis movements.

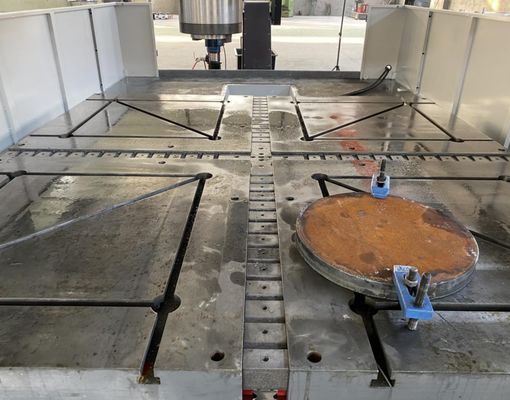

3. The worktable is manufactured from premium cast iron, offering outstanding load-bearing capability, structural stability, and reliable support for heavy-duty machining operations.
4. The drilling spindle adopts a rigid, high-precision BT40 design with an integrated internal coolant supply system, ensuring efficient chip removal, improved tool cooling, and convenient tool replacement. The spindle speed range is adjustable from 30 to 3000 rpm, allowing flexible adaptation to different machining requirements.
5. Two plate-chain type chip conveyors are installed on both sides of the worktable to automatically collect machining chips and coolant. This system enables efficient chip discharge, coolant recovery, and a cleaner machining environment.
6. The machine is equipped with both internal and external coolant supply systems, providing sufficient pressure and flow capacity for effective tool cooling and lubrication. Coolant level monitoring devices are integrated to ensure stable cooling performance and protect drilling tools during continuous operation.
7. An automatic lubrication system provides continuous and precise lubrication to critical moving components, including linear guideways, ball screws, and roller bearings. This design reduces mechanical wear, improves operational stability, and extends the service life of key components.
8. The machine is equipped with the 828D CNC control system, featuring powerful processing functions, automatic CAD/CAM programming capability, intuitive operation, real-time alarm notification, and intelligent error compensation functions, significantly improving machining efficiency and production management.
9. The machine integrates high-quality core components from internationally recognized manufacturers, including linear roller guideways, precision ball screws, servo motors and drives, spindle systems, CNC controllers, hydraulic pumps, control valves, and coolant pumps. These premium components ensure exceptional equipment reliability, stable operation, and long-term machining performance.

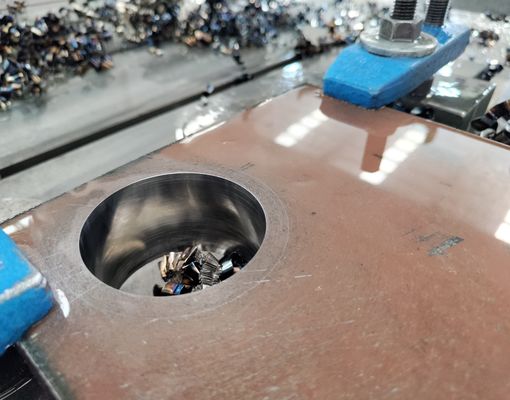

The CNC gantry plate cutting machine is a robust industrial solution, meticulously engineered for the precise processing of plate-shaped components and structural elements. This machine is specifically tailored for handling workpieces such as flanges, discs, rings, and flat plates, provided that the material thickness is within the machine's designated effective machining range.
In steel structure manufacturing facilities, this plate drilling machine executes precise drilling and milling operations on structural plates and connecting components, providing a solid foundation for the construction of resilient steel frameworks. In the wind energy sector, it delivers high-precision machining for wind turbine towers and flanges—essential processes that guarantee these components can withstand harsh environmental conditions, including extreme winds and temperature fluctuations. For bridge construction projects, the equipment processes bridge girders and supports, ensuring the formation of stable and durable connections capable of withstanding dynamic loads throughout the bridge's extended service life.
