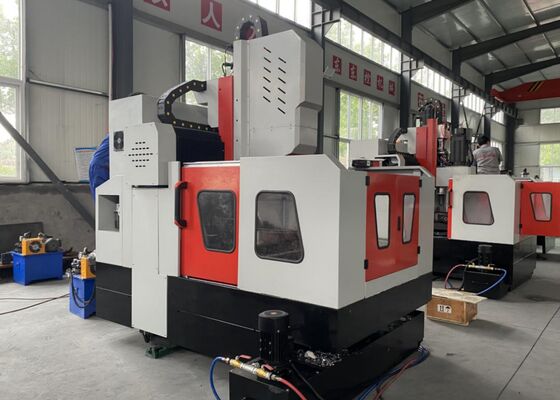

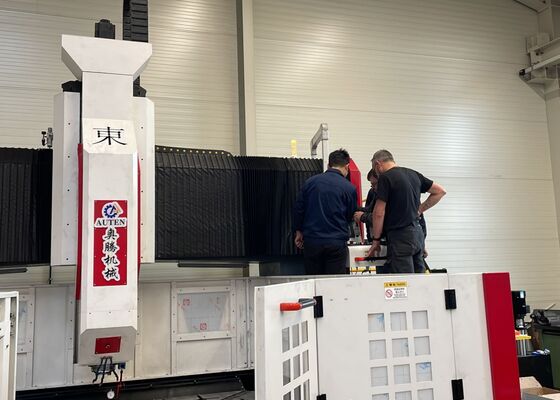

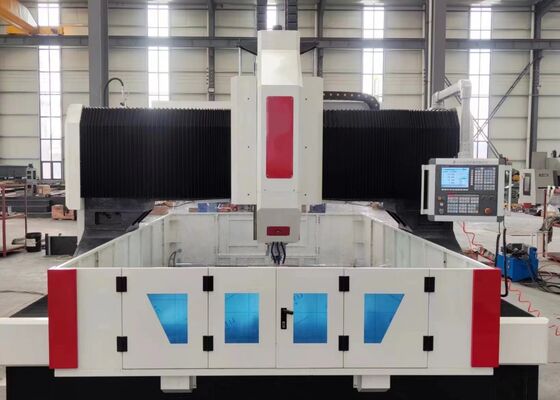

Gantry-Type High Speed CNC Plate Drilling And Milling Machine With Precision Drive

Gantry-Type High Speed CNC Plate Drilling And Milling Machine With Precision Drive

Application:

This CNC gantry-type plate drilling and milling machine is specially developed for performing a wide range of machining processes, including drilling, chamfering, tapping, milling, and boring, on steel plates and structural components. It provides highly efficient hole-processing solutions for various workpieces such as flanges, discs, rings, and plate structures within the applicable thickness range. The machine supports both through-hole and blind-hole machining and is suitable for processing single-material as well as multi-layer composite components. By integrating advanced CNC technology, the equipment delivers convenient operation, automated processing capability, and high-precision manufacturing performance, making it an ideal solution for large-scale industrial production requiring efficiency, accuracy, and reliability.

Specifications:

Product Features

1. High-Precision Transmission System:
The machine is equipped with Taiwan-produced linear guideways and precision slider assemblies, providing smooth axis travel, stable motion performance, and enhanced load-bearing capability for demanding heavy-duty machining applications.

1). The X-axis utilizes two rolling linear guideways that provide lateral guidance and structural support, meeting the requirements of high-speed drilling operations. An AC servo motor drives a high-precision ball screw transmission mechanism, ensuring accurate positioning, smooth movement, and reliable linear feed performance.

2). The Y-axis incorporates two heavy-duty rolling linear guideways on each side, with three square-type sliders installed on each guideway to form a rigid and stable gantry travel system. This configuration provides excellent structural strength and operational stability while offering low friction, high travel speed, effective vibration damping, and extended service life. The gantry is driven by a dual-servo synchronous transmission system, with servo motors installed on both sides to drive the respective ball screws simultaneously, ensuring synchronized movement and precise CNC machining performance.

3). The spindle carriage is supported by four heavy-duty linear guideways, delivering high structural rigidity, superior positioning accuracy, excellent dynamic response, and stable motion performance during both high-speed and low-speed machining operations.

2. Automatic Lubrication System and Protective Structure:
The equipment incorporates a Taiwan-manufactured volumetric automatic lubrication system with precision pressure distribution. Lubricant is automatically supplied to key moving components, including linear guideways, ball screws, and rack-and-pinion transmission mechanisms, ensuring comprehensive lubrication and effectively extending the service life of critical machine components. Dust-resistant protective covers are installed on the X- and Y-axis assemblies, while waterproof splash guards are positioned around the worktable to protect major machine components and enhance operational reliability.

3. Advanced KND CNC Control System:
The machine adopts high-precision absolute-value servo motors for motion control and is equipped with an RS232 communication interface, color display, and Chinese-language operating interface. The CNC system supports both on-machine operation and external USB data input, providing convenient program administration, efficient data transfer, and flexible machining control.

This high-performance CNC gantry plate drilling and marking machine is specifically developed for precision machining of plate-type workpieces and structural steel components. It is suitable for processing flanges, discs, rings, flat plates, and other comparable components, with workpiece thickness required to remain within the machine's specified effective machining range.

In structural steel fabrication facilities, the equipment performs precision drilling and milling on structural plates, connection plates, and related components, supporting accurate and reliable steel structure assembly. In the wind power industry, it provides high-precision machining for wind turbine tower sections and large flange components, helping ensure dimensional accuracy and structural integrity under demanding operating conditions such as strong winds and significant temperature variations. In bridge construction, the machine is utilized to process bridge girders, support components, and connection structures, producing accurate and durable joints capable of withstanding long-term dynamic loading. Through its combination of precision machining, stable operation, and versatile processing capabilities, the equipment provides a reliable manufacturing solution for structural steel, wind power, and major infrastructure applications.
