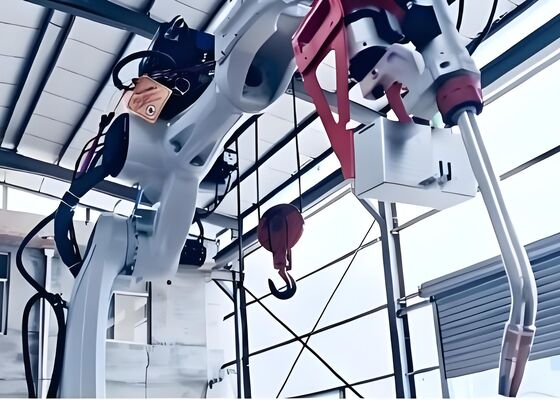

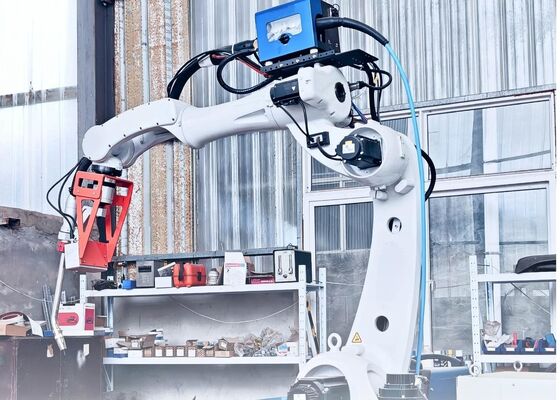

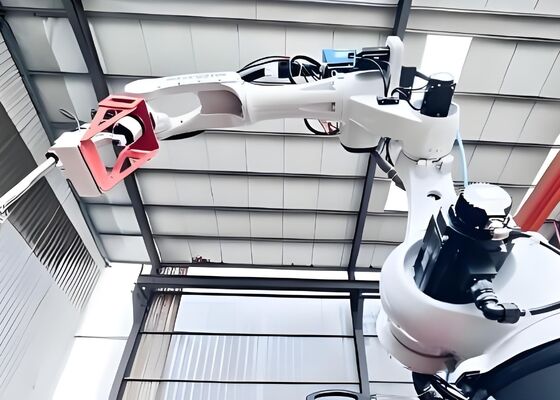

Multi Layer Multi Pass Continuous Welding CNC No-Teach Welding Robot With 3D Design Software

Multi Layer Multi Pass Continuous Welding CNC No-Teach Welding Robot With 3D Design Software

Designed for complex welding scenarios

The teach-free welding system eliminates the conventional pre-welding teaching procedure associated with traditional robotic welding systems. By utilizing advanced visual recognition technology, the robot automatically identifies the weld seam, generates the optimal welding trajectory, and executes the welding operation according to predefined process parameters. This intelligent configuration enhances welding efficiency and operational flexibility, simplifies production procedures, and minimizes manual intervention.

Product Features

1. Automatic Recognition Without Manual Teaching: The system automatically identifies workpieces, detects dimensional deviations, and performs positional corrections without requiring manual programming or teaching. It rapidly generates the corresponding motion trajectory, reducing setup time and improving overall production efficiency.

2. Integrated Multifunctional Welding Capabilities: The system supports multi-layer welding, multi-pass welding, continuous welding, automatic positioning, and weld seam tracking. These integrated functions enable the equipment to effectively accommodate workpiece deformation and complex welding conditions.

3. Broad Compatibility and User-Friendly Operation: The system is compatible with commonly used 3D design software and STEP-format files. Its intuitive operating interface simplifies programming and operation, allowing personnel to become proficient after basic training. Workpieces can be positioned flexibly, providing excellent adaptability for frequent product changeovers.

4. Efficient and Flexible Manufacturing: The system significantly enhances welding productivity while supporting small-batch and multi-variety production. Its flexible configuration facilitates responsive manufacturing, accurate process control, and efficient production management.

No-Teach System Introduction

The no-teach robotic welding system incorporates advanced sensing technologies and intelligent algorithms to overcome the programming complexity associated with conventional welding robots. It enables automatic workpiece identification and welding path generation without manual teaching. This capability allows rapid system deployment and commissioning while improving welding efficiency, process consistency, and finished-weld quality. At the same time, it reduces labor and technical training costs and supports the advancement of intelligent and automated manufacturing.

1. Rapid Deployment
The system automatically identifies the workpiece and generates the required welding trajectory without manual teaching, substantially reducing programming and commissioning time.

2. Consistent Welding Quality
Vision and laser sensors provide real-time process monitoring, enabling intelligent adjustment of welding parameters and helping maintain consistent weld quality throughout production.

3. Convenient Operation
The intuitive and clearly structured user interface enables operators to master essential functions after basic training. This reduces dependence on highly specialized technicians while lowering personnel training and labor costs.

4. Flexible and Expandable Configuration
The ground rail system provides an extended operating range and accommodates workpieces with different dimensions and geometries. The modular configuration also supports future system expansion to address increasing production requirements.

5. Intelligent Process Control
By integrating intelligent algorithms with an automated control architecture, the system continuously adjusts welding parameters and motion trajectories in real time. This ensures stable welding performance, improves process efficiency, and enhances the overall productivity of the production line.
