Robot Welding Machine With Fast Frame Acquisition Rates Supporting Real Time Visual Feedback

Large Image : Robot Welding Machine With Fast Frame Acquisition Rates Supporting Real Time Visual Feedback

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 days
Payment Terms:	L/C, T/T
Supply Ability:	300 sets/year

Contact Now

Detailed Product Description

Arm Span:	2010mm	Repeatability:	±0.07mm
Load Capacity:	12KG	Near Field Of View:	461×255mm@300mm
Visual Accuracy:	≤0.5mm	Degrees Of Freedom:	7 Axis
Light Resistance:	180000Lux	Power Supply:	Three-phase Five-wire System, 3×380V±10%/50HZ

Robot Welding Machine With Fast Frame Acquisition Rates Supporting Real Time Visual Feedback

Product Parameters:

Category	Content	Main Technical Parameters				Remark
Robot performance	Arm span	2010mm				—
	Repeatability	±0.07mm				—
	Load capacity	12kg				—
Visual performance	Near field of view	461×255mm@300mm				—
	Far field of view	1150×660mm@800mm				—
	Z-axis single-point repeatability	0.015mm@300mm0.1mm@800mm				—
	Visual accuracy	≤0.5mm				—
	Full frame acquisition time	0.2-0.8s(Full frame rate Max:6FPS)				—
	Light resistance	180000Lux				—
Overall parameters	Power supply	Three-phase five-wire system 3×380v±10%/50HZ				—
	Degrees of freedom	Adapt to workpiece conditions				—
	Number of robots configured	single unit	single unit	two units	Four units	Depends on the design
	Total power consumption	34kw	37kw	68kw	136kw	Corresponding to different configuration quantities
	Floor area	(4m + track length) × (3 + rail spacing) × 3.5m				—

Robot Welding Machine With Fast Frame Acquisition Rates Supporting Real Time Visual Feedback

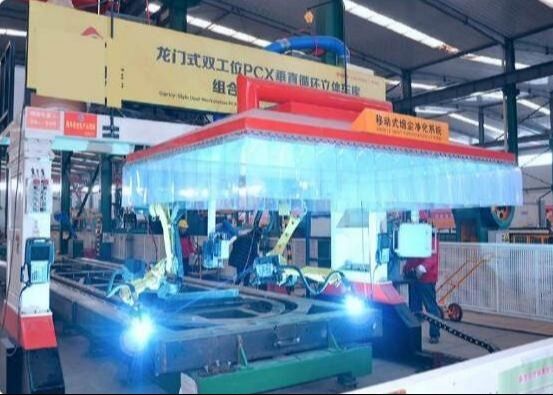

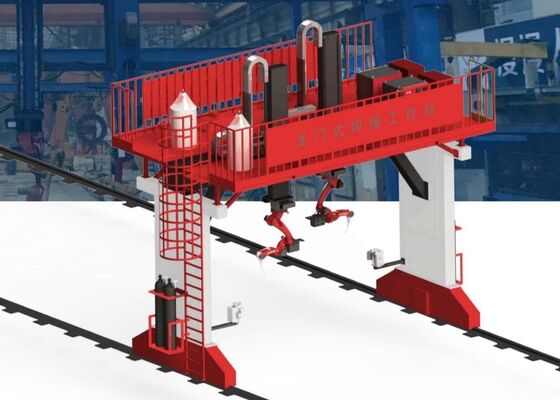

This gantry-mounted welding robot adopts an inverted installation configuration, enabling multiple robotic units to operate collaboratively through the integrated gantry crossbeam.

Robot Welding Machine With Fast Frame Acquisition Rates Supporting Real Time Visual Feedback

The system supports multi-axis coordinated motion across the X/Y/Z axes, together with configurable external extension axes, making it well suited for multi-angle welding of large-scale workpieces, including shipbuilding and marine structural components. Multiple robots can be deployed independently, in paired configurations, or as a four-robot system, significantly enhancing overall welding productivity. Equipped with a servo-driven zero-backlash reducer and a programming-free control architecture, the system can automatically generate optimized welding paths and perform real-time weld seam tracking, thereby ensuring accurate and consistent welding trajectories.

Robot Welding Machine With Fast Frame Acquisition Rates Supporting Real Time Visual Feedback
