Detailed Product Description
Max. Length Of Workpiece: 12000mm Max. Loading Capacity: 3 Tons/m, Total 35 Tons/whole Worktable
No. Of Drilling Spindle: 3 (Left + Right + Top) Drilling Diameter: Φ12.5 ~ Φ50 Mm
Moving Speed: 0 ~ 10m/min Drive Model: Double Side Servo + Gear
High Light:

cnc h beam drilling machine

,

cnc beam drill line

Gantry Type CNC H Beam Drilling Machine Specialized For Large Section Beams



INTRODUCTION

BD2010 which was designed for large-section beam fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market. BD2010 eliminates time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.

BD2010 is equipped with 3 self-supported high-speed Y-Z-axis moving drilling spindles. All spindles are built on the gantry and moving along with it. The spindle can provide high efficient drilling capacity with wide range of hole diameters. All these 3 drilling units can work simultaneously on the web and flanges of the beam. The Beam is fixed on the worktable, and the gantry will finish the CNC moving automatically to find the right position for drilling.

BD2010 can be multi-used for drilling H-Beam, Box-Beam, Column-Beam and Channel. The high speed drilling spindle and high speed position servo system will enable the machine to finish job efficiently.



MACHINE MAIN CHARACTER

  • Reduced setup time & simple to operate;
  • Sturdy frame, no vibrations and noiseless;
  • Circle-Controlled system to measure accurately;
  • High-speed drilling with inner cooling;
  • Specialized for large-section beam drilling.
  • Layout marking function easy for welding.
  • Autocad, X-STEEL & Tekla file reading instead of manual input.

SPECIFICATIONS:



Operating Range

H-Beam 1000 x 400 mm ~ 2000 x 1000 mm
Channel 1000 x 400 mm ~ 2000 x 1000 mm
Box-Beam & Column Beam 1000 x 400 mm ~ 2000 x 1000 mm
Max. Length of Workpiece 12,000 mm
Max. Loading Capacity 3 tons/m, total 35 Tons/whole worktable



Drilling Unit

No. of Drilling Spindle 3 (Left + Right + Top)
Drilling Diameter Φ12.5 ~ Φ50 mm
Thread Tapping 4#
Motor Power of Drilling Spindle 5.5 kW x 3
Spindle Feeding Stoke

Y1 axis: 1000mm; A axis: 600mm (horizontal)

Y2 axis: 1000mm; B axis: 600mm (horizontal)

Z axis: 2000mm; C axis: 600mm (vertical)

Spindle Y & Z movement Yes
Feed CNC feeding; 0 ~10 m/min (vertical to H-beam)
Drilling Tools & Tool Lube Model

Coated Drill Bit with mist spray cooling

Or

Carbide Drill Bit with inner cooling

Spindle rpm (servo) Stepless120~560 rpm
Profile Height Measuring Included
Profile Width Measuring Included
Layout Point Marking (not drilling through) Available (for welding purpose)



Gantry System

Moving Speed 0 ~ 10m/min
Drive Model Double side servo + Gear
Structure Square Pipe + Plate; HF welded



Control System

Type Computer + Mitsubishi PLC + Modules
Importing Software AUTOCAD (*.dxf), TEKLA, X-STEEL (*.nc1, dstv)
Manual Programming Available



Hydraulic System (for tool changing & side push aligning)

Hydraulic Motor Power 5.5 kW
System Inner Working Pressure 75 bar
Flux 40 L/min.
Hydraulic Tank Content 140 L
Hydraulic oil N0. #46



Scraps Removal System

Motor Power 1.5 kW
Type Chain & Plate recycling moving type
Speed 10/min
No. of scraps removal system 2sets



Machine overall info

Dimension (L x W x H) L 17000mm x W 8600mm x H 4620mm
Total Weight Around 50 Tons
Total Power 40 kW



Gantry Type CNC H Beam Drilling Machine Specialized For Large Section Beams 0

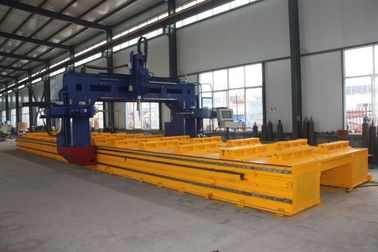

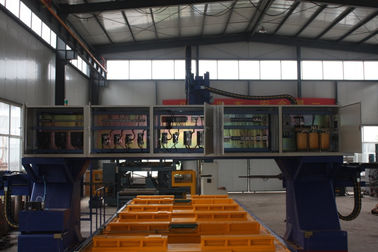

Main Machine Body (Gantry and Working table)

Gantry Type CNC H Beam Drilling Machine Specialized For Large Section Beams 1

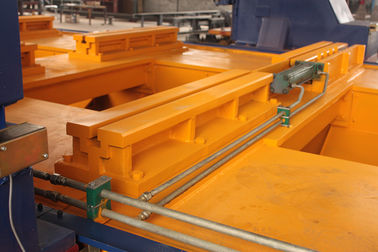

Material Support and Side-push Device

Gantry Type CNC H Beam Drilling Machine Specialized For Large Section Beams 2

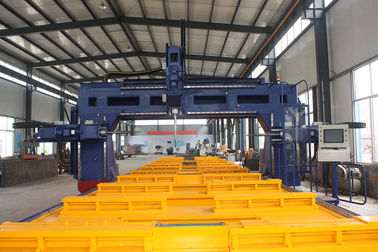

High-speed Drilling Spindle

Gantry Type CNC H Beam Drilling Machine Specialized For Large Section Beams 3

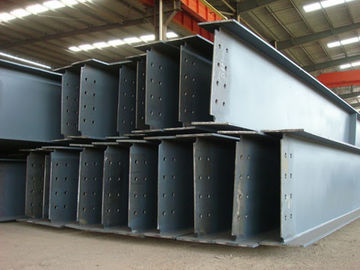

Workpiece showing
