7 MPa Hydraulic Pump Pressure Cnc Beam Drilling Line 2x3 KW Feed Servo Motor Power

7 MPa Hydraulic Pump Pressure Cnc Beam Drilling Line 2x3 KW Feed Servo Motor Power

Product Introduction:

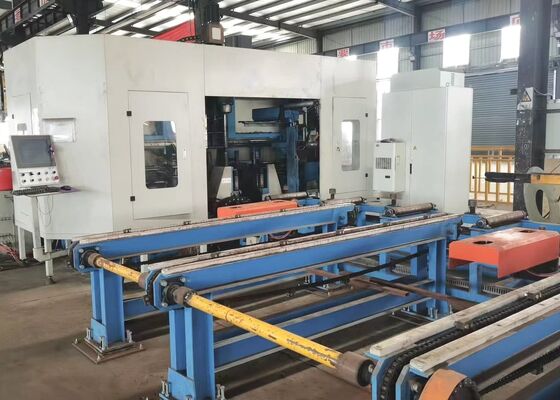

This machining center is purpose-built for drilling operations on H-beams. Equipped with three high-speed, precision drilling spindles, it executes drilling tasks on workpieces with exceptional efficiency. Delivering superior machining accuracy and user-friendly operation, this equipment serves as an essential high-performance solution in the steel fabrication industry. It is extensively utilized in key sectors such as construction engineering, bridge infrastructure, tower mast manufacturing, and grid structure projects.

Product configuration information:

Product Features

1. This 3D H-beam drilling and cutting machine is predominantly made up of the main machine frame, CNC feeding system, material conveyor, electrical system, hydraulic system, cooling system, lubrication system, waste container, and other associated components. With a fixed bed design and a movable workpiece arrangement, the machine is perfectly suited for processing large H-beams. It facilitates continuous production operations and is renowned for its high degree of automation.

2. The drilling machine structure consists of the bed, CNC sliding table assemblies, support mechanisms, upper pressing units, side pressing units, and detection systems. The CNC sliding table assemblies include the fixed side, movable side, and the upper-unit CNC sliding table. Specifically engineered for H-beam drilling applications, the sliding table components comprise a sliding plate, sliding table base, spindle headstock, high-speed mechanical spindle, tool cylinder, variable-frequency motor, servo motor, linear guides, and lead screws.

3. The CNC feeding system is composed of brackets, gears, racks, servo motors, reducers, and manipulators. The servo motor drives the manipulator, enabling the movement of the H-beam along the X-axis, ensuring accurate feeding and precise positioning of the workpiece.

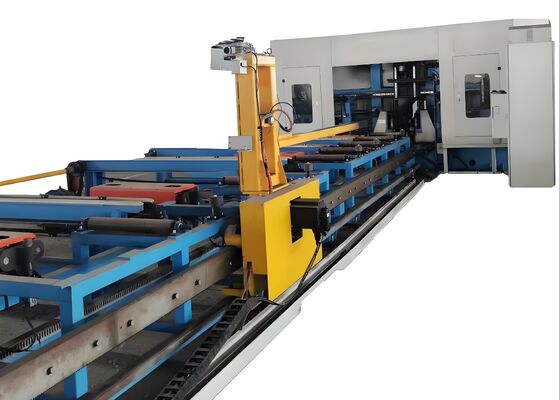

4. The material conveyor includes both an in-feed conveyor and an out-feed conveyor. The in-feed conveyor consists of conveyor brackets, support rollers, and side-pushing mechanisms, all designed to transport profiled steel blanks, achieve Y-axis positioning of the blanks, and operate in coordination with the CNC feeding system to facilitate the material feeding process. The out-feed conveyor, made up of material channel brackets and support rollers, is specifically intended for transporting finished workpieces.

5. The cooling system employs both internal and external cooling techniques, utilizing oil mist to cool the borehole. This method offers several benefits, including reduced coolant consumption, which enhances cost efficiency, supports environmental sustainability, and minimizes wear on the drill bit.

6. The hydraulic system delivers power to the upper pressing unit, side pressing unit, tool cylinder, and other related components.

7. The pneumatic system is engineered to provide power to the manipulator, testing cylinder, and other similar equipment.

8. The lubrication system incorporates both centralized and manual lubrication methods. Centralized lubrication is primarily employed for the timely and precise lubrication of the main linear guides and lead screws.

9. The machine tool's control system is composed of a host computer, PLC, and other associated components. Programming Method: Processing programs are created by inputting CAD drawings or processing parameters through a USB interface or keyboard. These programs can be stored, retrieved, displayed, and transmitted at any time using part numbers. The machine tool facilitates manual adjustment and control of individual processing parameters while also supporting fully automated control of the entire processing sequence.

During sample demonstration sessions, the CNC beam and sheet metal drilling, marking, and shearing machine effectively illustrates its processing capabilities when handling standard H-beam samples—featuring various flange widths and web thicknesses—as well as channel steel samples of different dimensions. The specimens presented in these demonstrations distinctly showcase the equipment’s capacity to achieve precise hole placement, clean tapped threads, and well-defined marking patterns, thereby thoroughly demonstrating its exceptional accuracy and reliability in practical application scenarios.

The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is primarily employed in steel structure manufacturing facilities and bridge construction projects. In steel structure workshops, it ensures precise machining of H-beams used in frameworks and support structures, providing a solid foundation for the stable assembly of steel constructions. In bridge building, the equipment conducts high-precision drilling operations on H-beams, enhancing the structural integrity of bridges and enabling them to effectively bear long-term loads. With its outstanding operational efficiency, this machine offers dependable support for these critical infrastructure sectors, facilitating the smooth advancement of related projects.
