Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line

Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line
Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line

Large Image :  Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line

Product Details:
Place of Origin: China
Brand Name: Auten
Certification: ISO9001
Model Number: HBD3012
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Container
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets/year
Detailed Product Description
Max. H Beam Size: 3000×1250mm Max. Length: 12000mm
Max. Thickness: 60mm Max. Workpiece Weight: 40 Tons
Spindle: BT40 Spindle Speed Range: 0-3000 R/min
High Light:

Heavy Big CNC Beam Drilling Machine

,

Gantry Movable H Beam Drill line

,

Heavy Big H Beam Drill line

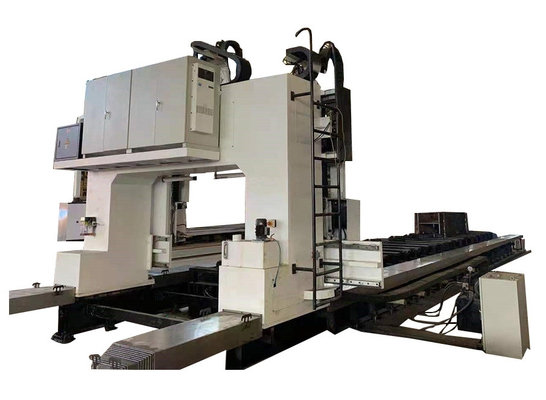

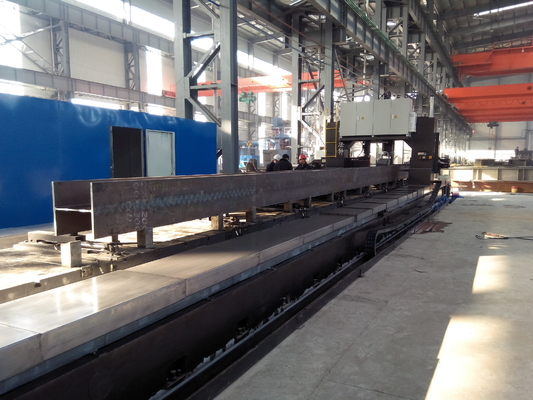

Gantry Movable High Speed CNC Heavy Big H Beam Drilling Machine Line Model HBD3012

Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line 0

Application:

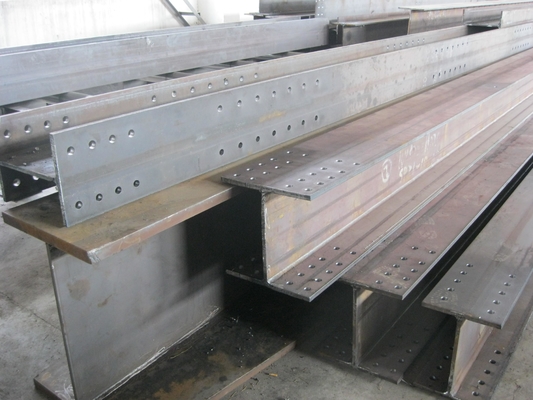

It is mainly used for the drilling of large welded H-beams, and can also be used for the drilling of rectangular and U-shaped steels. The holes on the three sides of the H-beam can be loaded and processed at one time, with high efficiency and high hole position accuracy. It is the key equipment for quality assurance in related manufacturing industries. The machining process of the machine tool is digitally controlled, and the operation is very convenient. It can realize automation, high precision and mass production.

Product Feature:



Gantry Movable High Speed CNC Beam Drilling Machine Heavy Big H Beam Drill line 1

  • The drilling efficiency of the equipment should meet the following basic requirements: the processing material is a low-alloy high-strength structural steel plate (Q345) with a thickness of 55mm and a hole diameter of φ32mm. One-time drilling is performed, and the time for uniaxial drilling of a single hole is less than 30 Seconds, the finish reaches 3.2-6.3.
  • It has the function of detecting the three dimensions W, H and H as shown in the figure below, and automatically records and modifies these dimensions to compensate for welding errors and ensure the correct drilling position.
  • With flange plate positioning and clamping function, with web support function (to prevent excessive vibration of the web during high-speed drilling and damage to the tool).

  •  It has the function of spray cooling the tool in the center of the spindle, so as to use the inner cooling tool.

  • It has the functions of automatic broaching and hydraulic loosening.

  • Drilling programs compiled by other CNC equipment can be used on this CNC drilling machine as long as the format is in the general format.

  • Except for the chip conveyor, other parts of the equipment are installed above the ground.



    Specifications:

    Name Unit Parameter
    Workpiece size Section(width x Height) mm 400×600-3000×1250
    Max. length mm 12000
    Max. thickness mm 60
    Max. Workpiece weight t 40
    Worktable Size(LxWxH) mm 12500×2260*850
    T-slot width and quantity mm 28,21 pcs
    Web support Qty. 63
    Spindle Type   BT40
    Qty.   3
    Max.rotating speed allowed r/min 0-8000
    Upper power head unit Spindle type   BT40 of Precision high-speed spindle
    Tool cooling method   Central spray inner cooling + liquid outer cooling
    Knife release method   hydraulic
    Servo motor power kW 15
    Spindle speed range r/min 0-3000
    Max. left and right stroke mm 2900
    Max.left and right movement speed m/min 10
    Max. up and down feed stroke mm 750
    Max. up and down feed speed m/min 6
    Distance from spindle nose to table mm 850-1600
