BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power

Large Image : BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power

Product Details:

Place of Origin:	China
Brand Name:	Auten
Certification:	ISO9001
Model Number:	BHD500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	30 days
Supply Ability:	500 sets per year

Contact Now

Detailed Product Description

Condition:	New	Max. Size Width X Height:	500×500mm
Min. Size Width X Height:	100×100mm	Beam Length:	2000～13000mm
Channel Steel:	10#～40#	Main Spindle Model:	BT40
Motor Powerr :	11KW	Spindle Speed:	100～3000 R/min
Highlight:	BT40 spindle CNC beam drilling machine , 3D I-Beam H-Beam drilling sawing machine , 11KW motor CNC beam tapping machine

BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power

Machine tool use:

This machine tool is primarily dedicated to drilling, tapping, and marking processes for steel materials such as H-shaped steel and channel steel. It employs three BT40 high-speed spindles to conduct drilling on the three surfaces of the steel, with one spindle designated for each surface. The corresponding row-type tool magazine can house up to 4 specifications of drill bits.

It is characterized by high processing efficiency, high precision, easy operation, and wide applicability. It is extensively utilized in steel structure industries including construction, garages, towers, and grids.

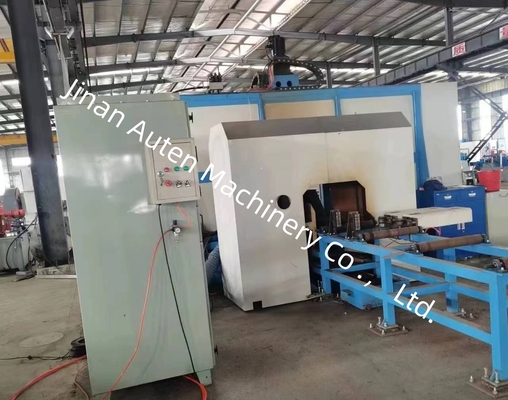

BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power 0

1. Discharging channel
The discharging channel is composed of a channel bracket, support rollers, etc., and is used to carry the workpiece that has been processed.
2. Cooling system
The drill bit is cooled by the spindle internal cooling method.
3. Hydraulic system
It is used to provide power for the workpiece clamping device and the knife cylinder.
4. Pneumatic system
It is used to provide power for workpiece clamping, spindle blowing, etc.

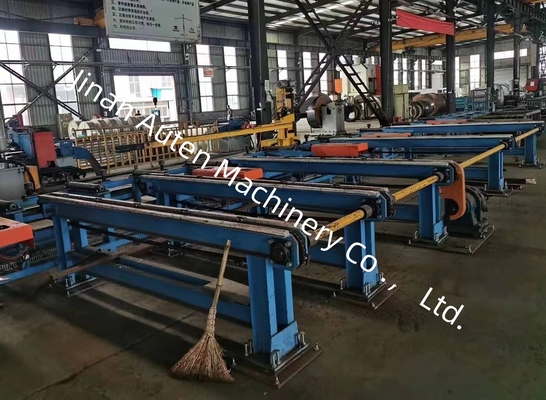

BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power 1

5. Lubrication system
A combination of centralized lubrication and manual lubrication is used. A centralized lubrication device is used to lubricate certain linear guides and lead screws in a timely and quantitative manner, and other lubrication points are lubricated manually.

BT40 Main Spindle CNC 3D I-Beam H-Beam Drilling Sawing and Tapping Machine Line 11KW Motor Power 2

6. Electrical system
The control system of the machine tool consists of a host computer, PLC, etc.
Programming method: Input CAD drawings or processing parameters through the USB interface or keyboard to generate a processing program. The processing program can be stored, called, displayed and communicated at any time according to the part number. The machine tool can realize both manual adjustment and control of each processing parameter separately, and automatic control processing of the entire process.

Specifications:

H beam parameter	Max. Size Width x Height		500×500mm
	Min. Size Width x Height		100×100mm
	Beam Length		2000～13000mm
	Channel steel		10#～40#
Main spindle	Qty.		3
	Model		BT40
	Motor power		11 kW
	Spindle speed		100～3000 r/min
	Hole diameter		φ5～φ30 mm
CNC axis	Servo motor power of X axis		About 4.5 kW
	Servo motor power of horizontal drilling positioning axis		About 1.5 kW
	Servo motor power of vertical drilling positioning axis		About 3 kW
	Servo motor of drilling infeeding		About 2 kW
Tool magazine	Qty.		3
	Type		Row style
	Tool magazine capacity		4 x 3
Processing Accuracy	Hole distance deviation	Two holes within 1 meter	±0.5
		The allowable deviation value increases by ±0.2mm for every additional 1 meter of the hole distance, and the maximum does not exceed ±2mm
	End margin deviation		±1.0 mm
