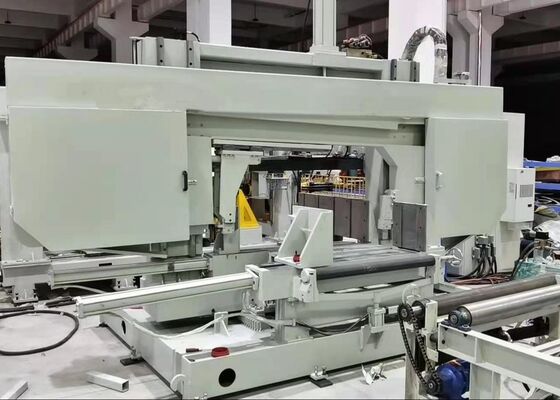

40mm Workpiece Thickness CNC 3D H Beam Drilling Shearing Machine 55KW Power

40mm Workpiece Thickness CNC 3D H Beam Drilling Shearing Machine 55KW Power

Application:


It is primarily utilized for drilling, tapping, marking, and scoring H-shaped steel, channel steel, angle steel, and other types of steel. Its applications are extensive across industries involved in steel structures, including construction, garages, towers, and grid frameworks.

Specifications:

The above parameters can be adjusted and changed according to customer's specific requirements.

1. Essential and specialized drilling machinery for the steel structure construction industry.
2. Simultaneously drills holes on three surfaces of H-beams and channels with high precision and efficiency.
3. Equipped with 7 CNC axes, enabling automatic and precise feeding and positioning.
4. Capable of recognizing AUTOCAD and DSTV part drawings and converting them into machining programs.

Product Features

1. The feeding system employs CNC carriage clamping and feeding, ensuring high speed and precise positioning accuracy.

2. Three BT40 high-speed spindles are utilized to drill the three surfaces of the H-beam. The system uses carbide drill bits, with spindle rotational speeds reaching up to 3000 rpm. This results in high processing efficiency and excellent drilling performance. The chips produced during drilling are efficiently removed via a chain-type chip conveyor.

3. The cooling system utilizes mist cooling, providing both internal and external cooling capabilities. Each drilling spindle unit is equipped with its own external cooling nozzle and internal cooling connector, which can be selected based on the drilling requirements. Internal and external cooling can be used independently or simultaneously.

4. The Automatic Tool Changer (ATC) system can be customized according to customer requirements, eliminating the need for manual tool replacement, thus saving time and enhancing operational efficiency.

During sample demonstration sessions, the CNC beam plate metal drilling, marking, and shearing machine effectively demonstrates its processing capabilities when working with standard H-beam samples (with varying flange widths and web thicknesses) as well as channel steel samples of different sizes. The samples showcased in these demonstrations clearly highlight the machine's ability to deliver precise hole positioning, clean tapped threads, and clear marking patterns—fully exemplifying its high accuracy and reliability in practical applications.

The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is primarily utilized in steel structure fabrication and bridge construction projects. In steel structure fabrication, it performs precision processing on H-beams used in frameworks and support systems, providing a solid foundation for the stable assembly of steel structures. In bridge construction, it carries out high-precision drilling on H-beams, which not only strengthens the structural integrity of bridges but also ensures they can endure long-term loads. With its high operational efficiency, the machine offers reliable support to these vital infrastructure sectors, ensuring the smooth progression of associated projects.
