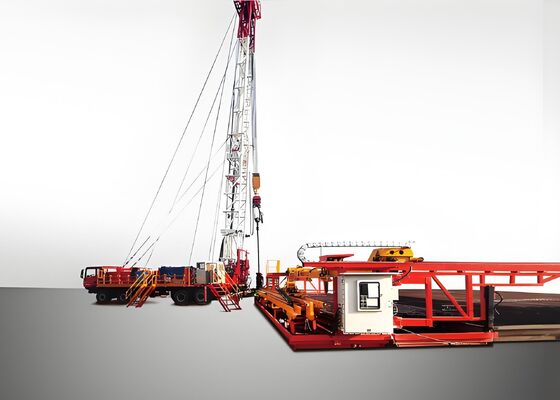

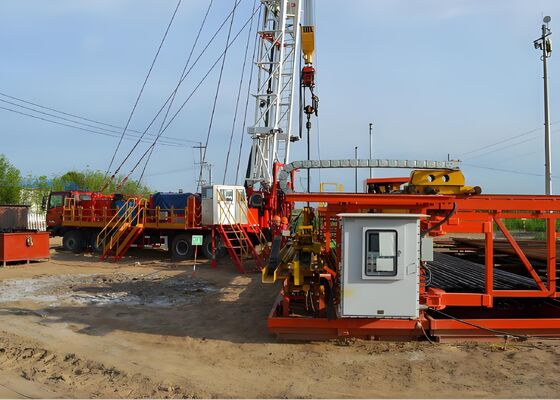

Operations In Oil Gas Water Fields Intelligent Well Intervention Machine With Downhole Pump
Product Introduction:
This oilfield equipment is specifically designed for well servicing operations in oil, gas, and water production fields. Its primary functions include the running and pulling of tubing strings, drill pipes, sucker rods, and downhole pumps. As an advanced intelligent well-servicing solution, it represents one of the most highly automated and technologically sophisticated intervention systems available in the global oilfield service sector.
Specifications:
| Model |
XJNC-70/35 |
| Power elevator load rating |
700 kN |
| Power slips rated load |
700 kN |
| Applicable pipe diameter |
2 3/8NU,2 3/8EU,2 7/8NU,2 7/8EU,
3 1/2NU,3 1/2EU,4 1/2NU (Insulated pipe) |
| Pipe tripping efficiency |
45pcs/hour |
| Machine power |
9 kW |
| Lifting load |
350kg |
| Lifting height |
4000mm |
| Oil pipe length |
8500~9750mm |
| Qty. arranged pipes |
300pcs (3 1/2EU) |
| Overall size |
11200x2300x2700 |
Product Advantages:

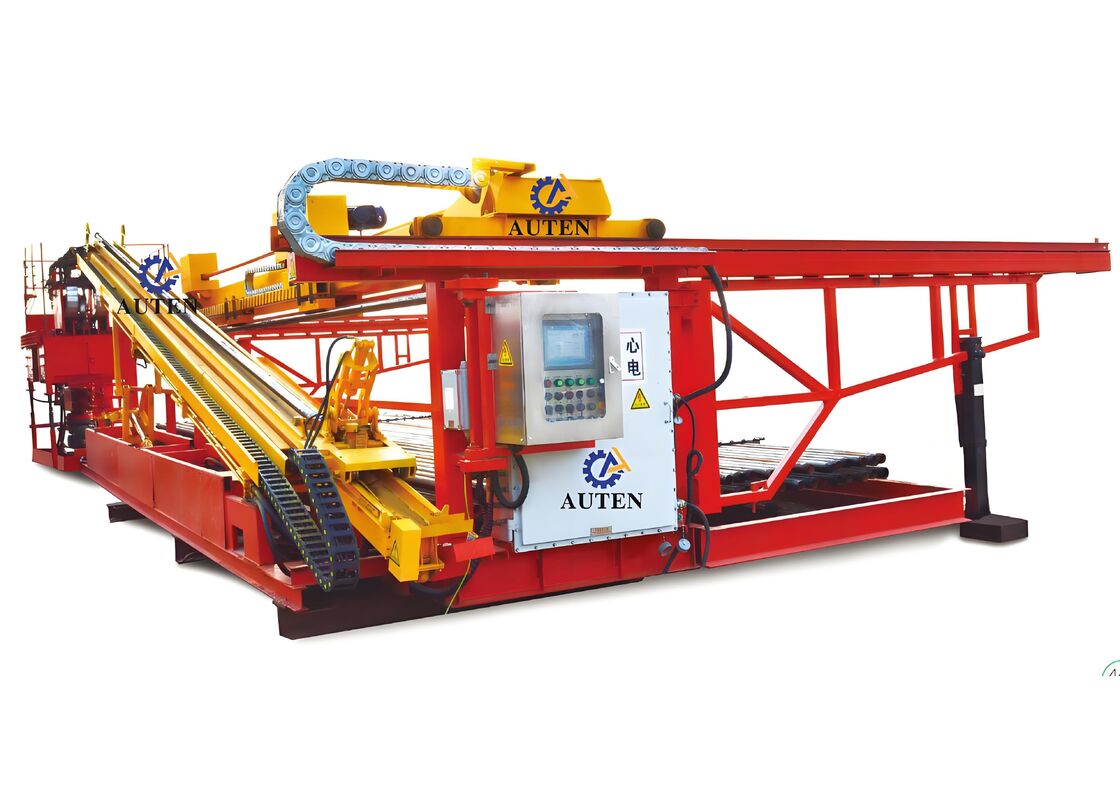

This oilfield unit is a fully automated and intelligent well-maintenance system. It is equipped with key operational functions including automatic tubing gripping and releasing, accurate tubing length measurement and data recording, automatic switching between primary and auxiliary elevators, and automated lifting and lowering of tubing strings. Through the integration of these advanced capabilities, the system significantly reduces manual labor requirements and transforms conventional field operations from labor-intensive manual processes into centralized, intelligent supervisory management.
The electrical control system adopts a fully digital architecture, integrating advanced digital control technology, PLC-based centralized control, and industrial fieldbus communication networks. This design enables the seamless integration of mechanical, electrical, hydraulic, pneumatic, instrumentation, digital, and communication subsystems into a unified and highly coordinated operating platform.
The network infrastructure, information management system, hardware architecture, and software platform are all developed in accordance with standardized industry specifications and modular design principles. This approach supports intelligent system management, delivers outstanding operational performance, ensures simple and reliable operation, and provides excellent compatibility and interchangeability of major components.
All critical hydraulic and pneumatic components are sourced from certified and field-proven manufacturers, ensuring superior quality, dependable performance, and long-term operational reliability. In addition, all lighting systems, status indicators, and control panel electrical devices operate on a standardized 24V power supply, enhancing system safety, maintenance convenience, and operational consistency.
This oilfield equipment is specifically designed for well servicing and intervention operations in oil, gas, and water wells. It is suitable for tubing running and retrieval, drill pipe handling, sucker rod operations, downhole pump extraction, and routine well maintenance. Widely deployed in both onshore and offshore production fields, the system enhances operational efficiency, reduces labor intensity, and provides a safe, intelligent, and highly automated solution for modern oilfield servicing applications.
