Model SSPGNC-0.35-4(A) Oil Well Minor Repair Intelligent Operation Oilfield Handling Machine

Model SSPGNC-0.35-4(A) Oil Well Minor Repair Intelligent Operation Oilfield Handling Machine

Product Overview:

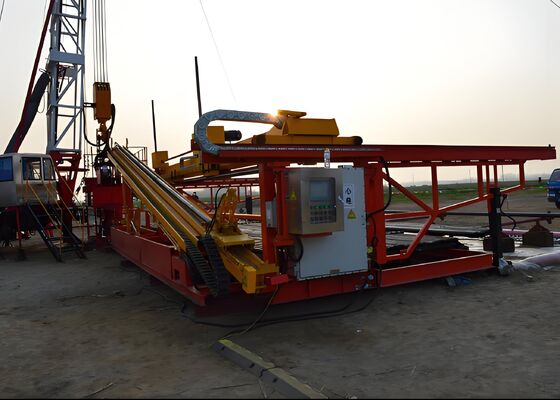

The automated pipe-rod conveying and stacking machine is an intelligent oilfield handling system developed for the automatic conveying, stacking, and length measurement of oil tubing during light-duty well servicing operations. It automatically transfers, arranges, and measures tubing between the auxiliary bridge, pipe storage area, conveying system, and wellhead lifting equipment. By integrating these functions into a single automated process, the system effectively achieves fully automated pipe handling throughout minor oil well maintenance operations.

Specifications:




Product Advantages:

1. The equipment is equipped with an intuitive human-machine interface (HMI) for parameter configuration and is controlled by a PLC-based automation system. It automatically performs pipe gripping, unloading, conveying, and length measurement while recording tubing length data sequentially for convenient storage, retrieval, and production management. The system offers reliable operation, high flexibility, and significantly reduces manual intervention.



2. A servo-controlled mobile trolley with an automatic tracking function is incorporated into the system. The trolley independently transports tubing while simultaneously performing conveying and length measurement tasks. It can also operate synchronously with the elevator in either free-tracking or towed-tracking modes. During transportation, the clamping mechanism and trolley jointly support the tubing, eliminating contact friction with the guide rail and effectively protecting pipe-end threads from damage.



3. The machine utilizes an advanced electro-permanent magnetic handling system featuring rapid magnetization and demagnetization. This technology enables fast, stable gripping and release of tubing while minimizing impact forces, reducing operating noise, and preventing surface damage to the workpieces.

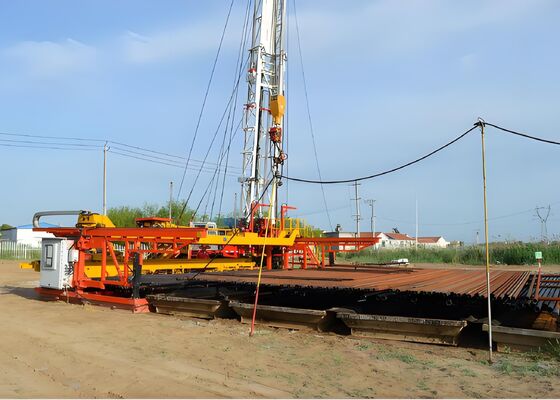

4. The equipment provides high-precision automatic stacking and palletizing functions. For Φ89 mm oil tubing, the system automatically arranges 30 pipes in parallel within each layer and stacks them into 10 uniform layers, ensuring orderly positioning, accurate alignment, and efficient material storage.

5. A wireless remote-control system is provided to allow operators to intervene promptly whenever abnormal operating conditions occur during automatic production. This feature enhances operational flexibility, improves equipment safety, and facilitates convenient system control and troubleshooting.

The automated pipe-rod conveying and stacking machine is an intelligent oilfield handling system specifically engineered for automated conveying, stacking, alignment, and length measurement of oil tubing and sucker rods during minor oil well servicing operations. It efficiently transfers tubulars between the wellhead, pipe rack, and auxiliary handling equipment while performing automatic pipe counting, length recording, and orderly stacking. By minimizing manual handling, improving operational safety, and enhancing handling efficiency, the system provides reliable and intelligent tubular management for modern oilfield well intervention and maintenance applications.
